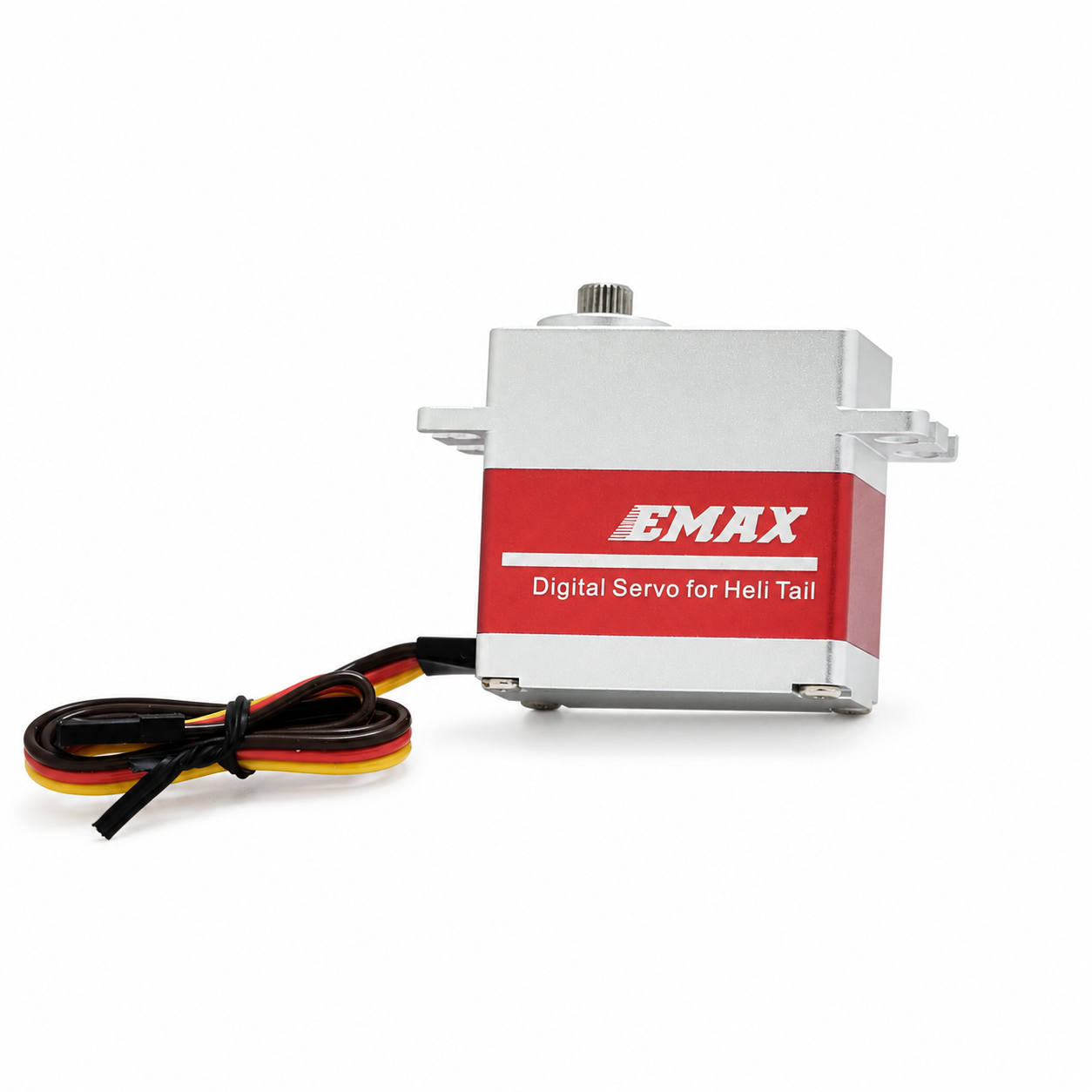

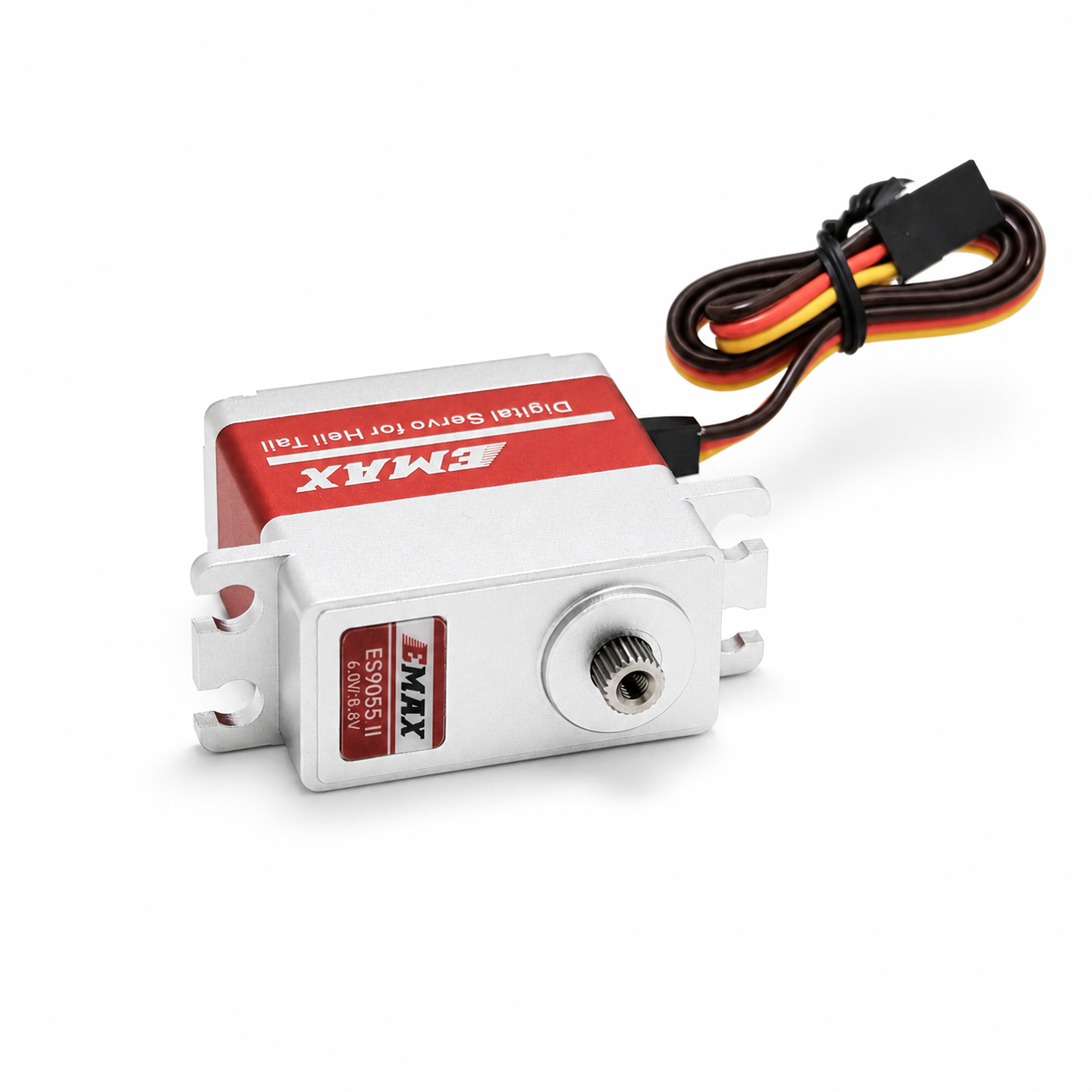

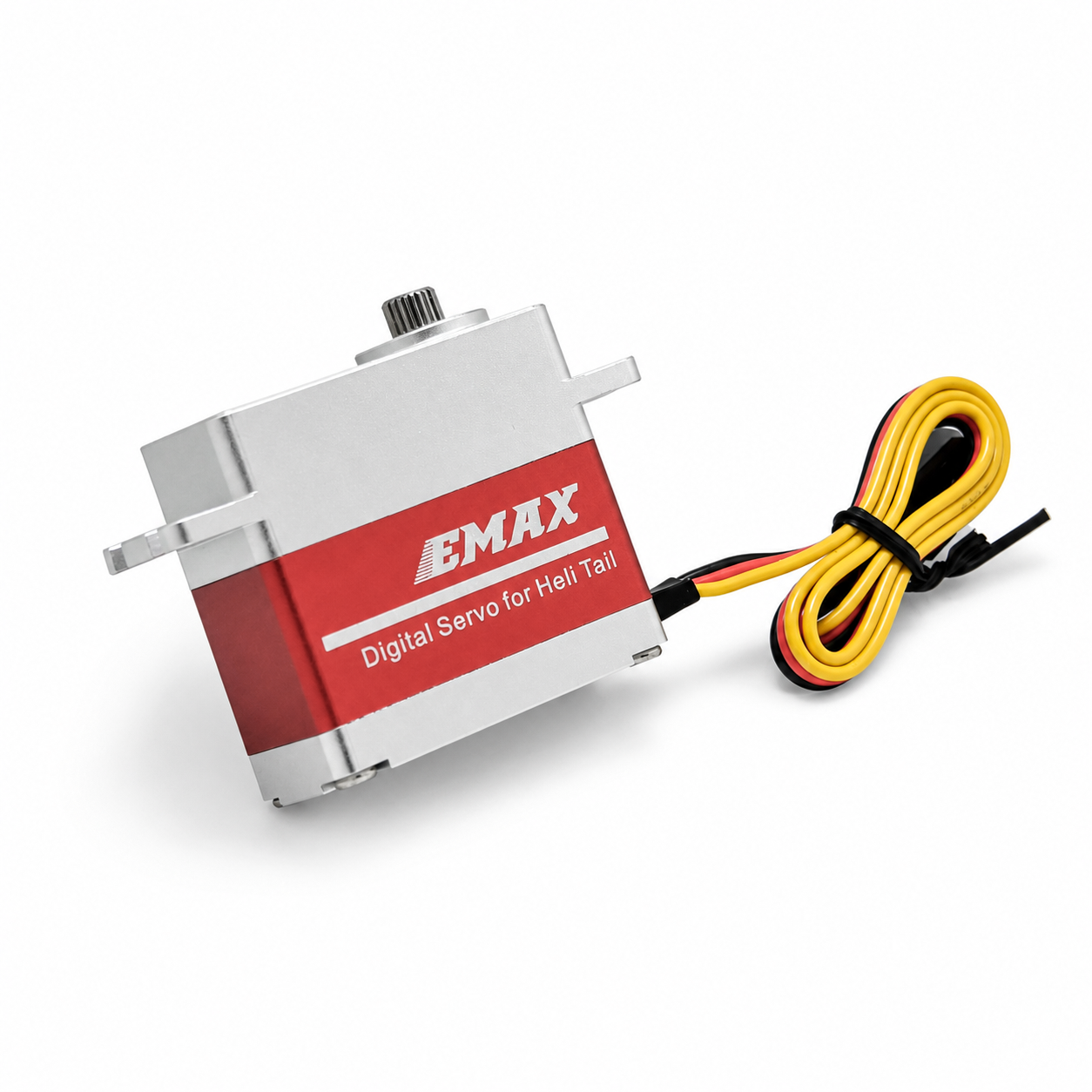

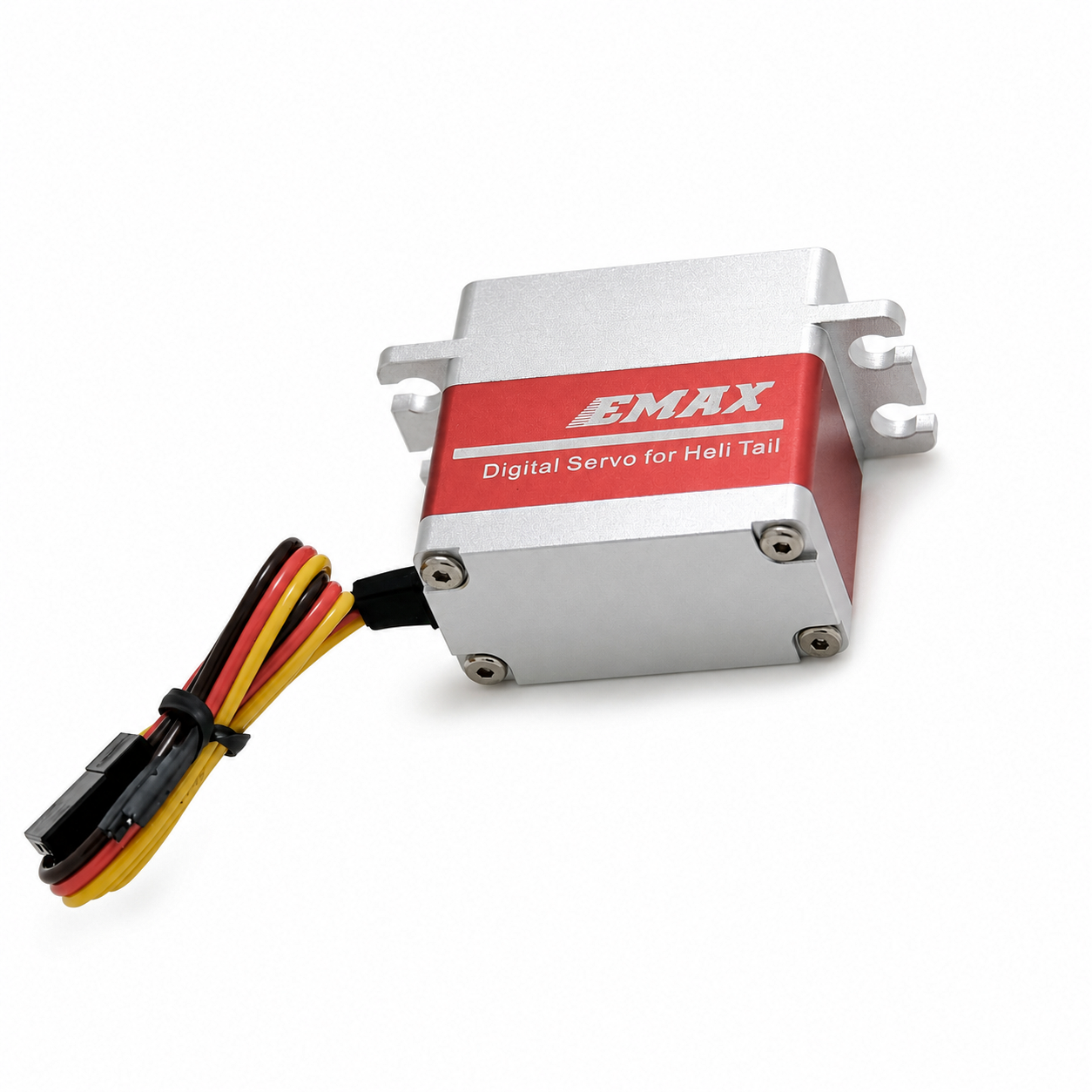

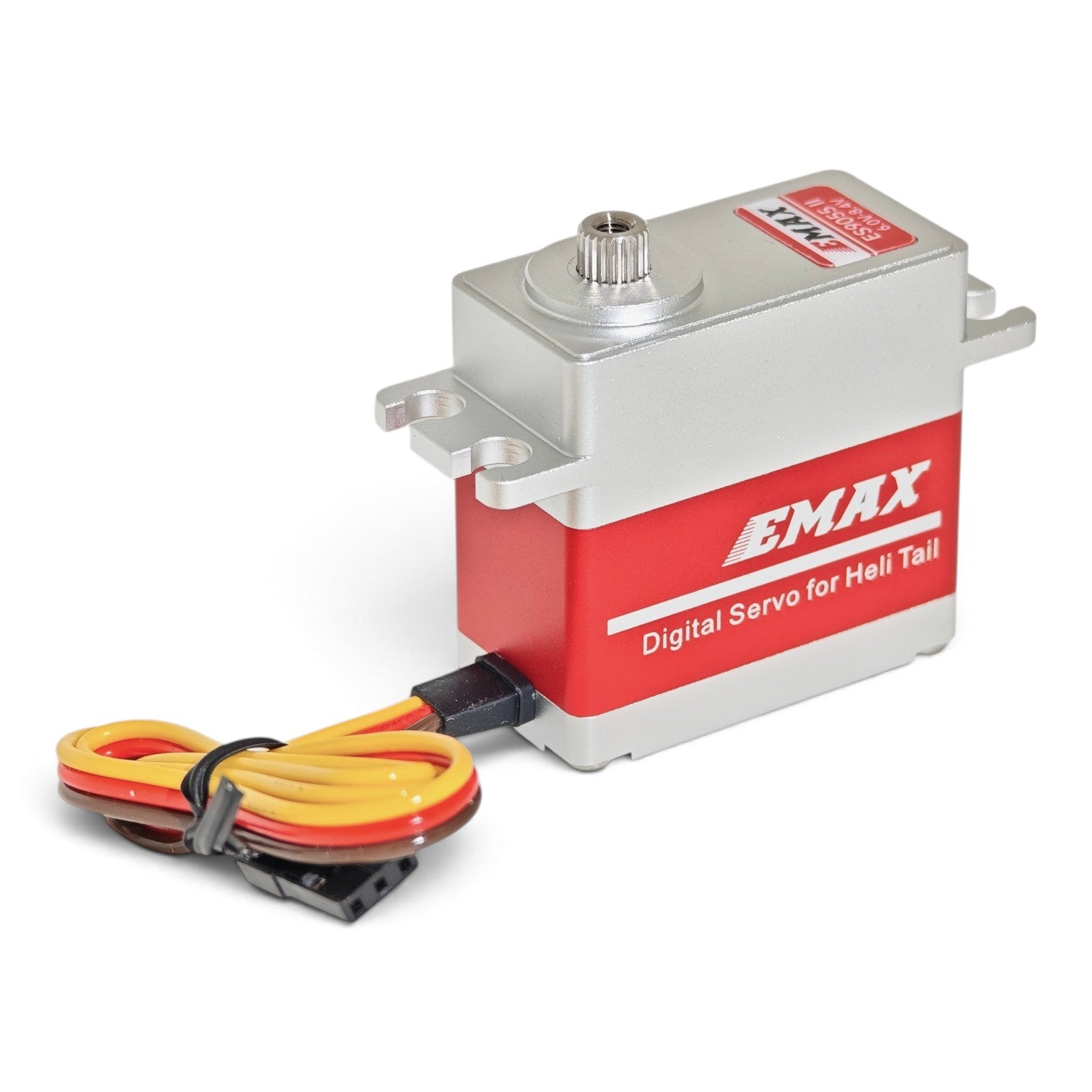

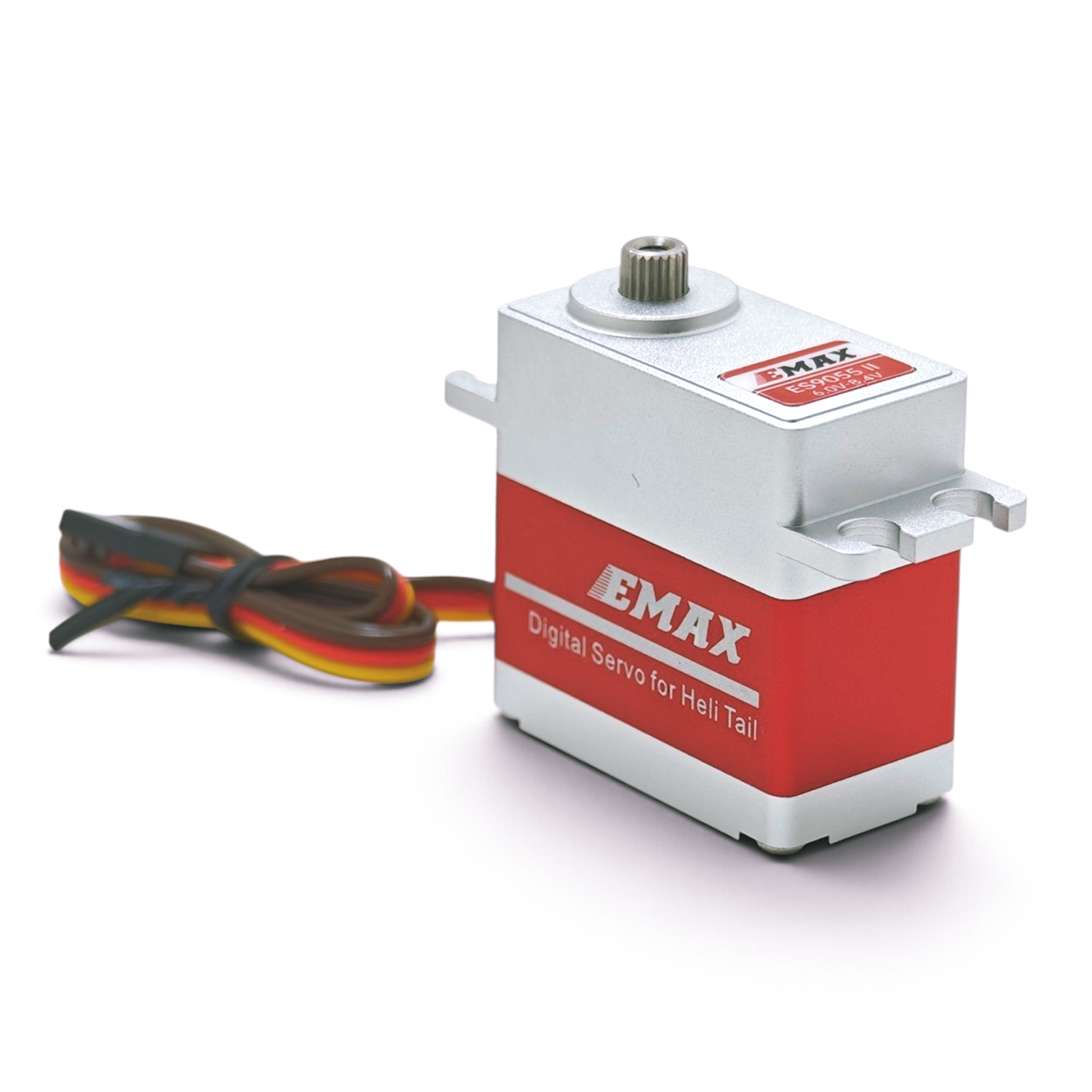

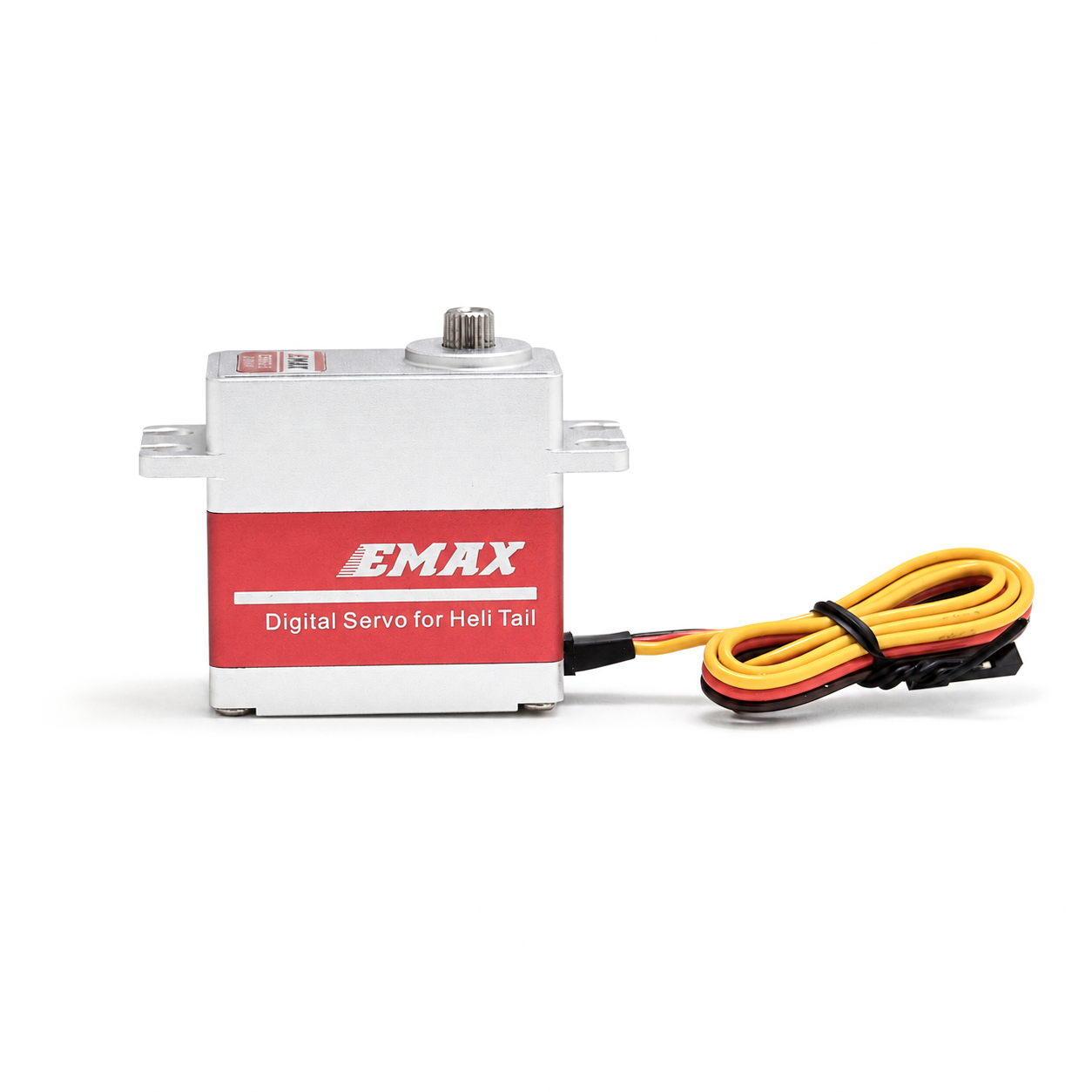

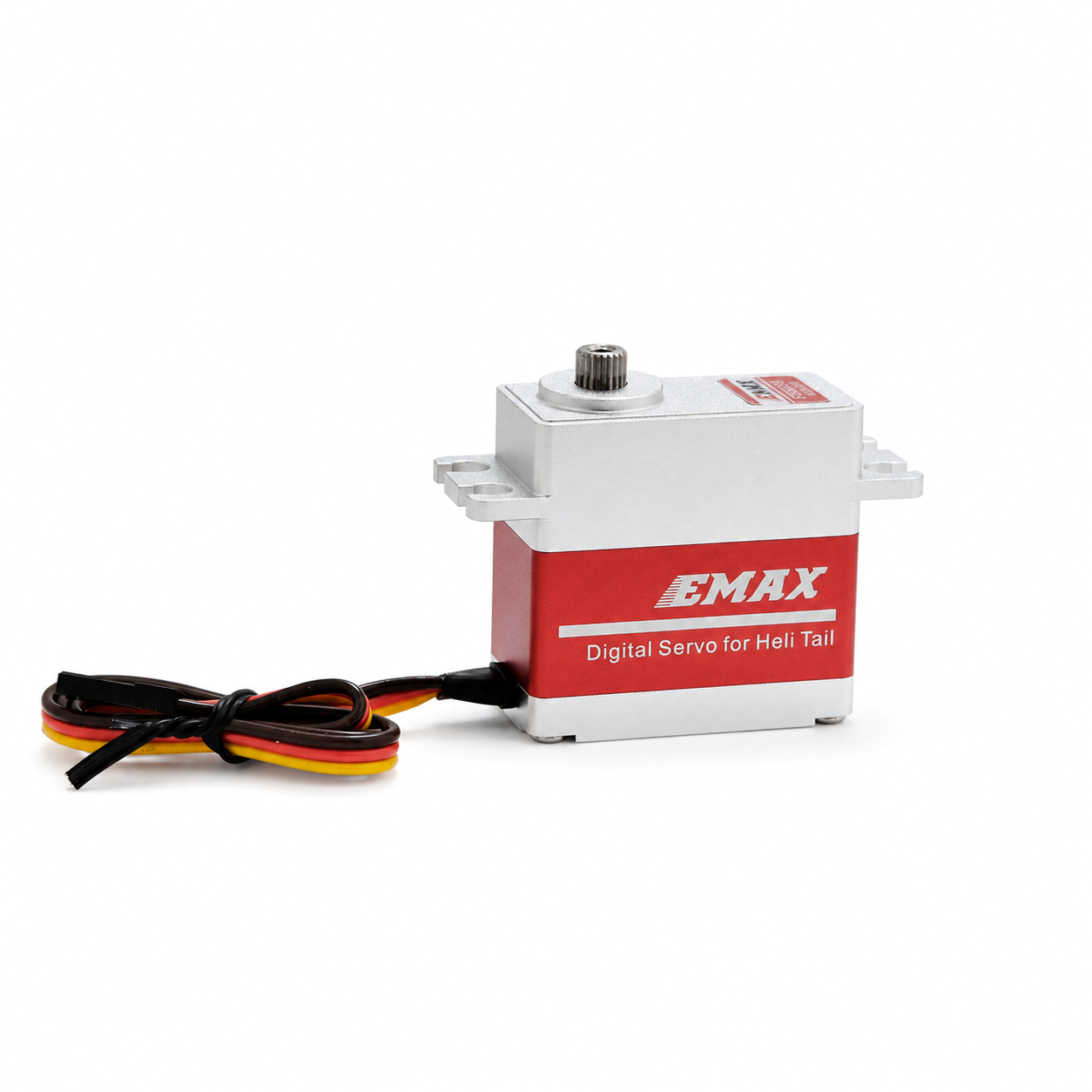

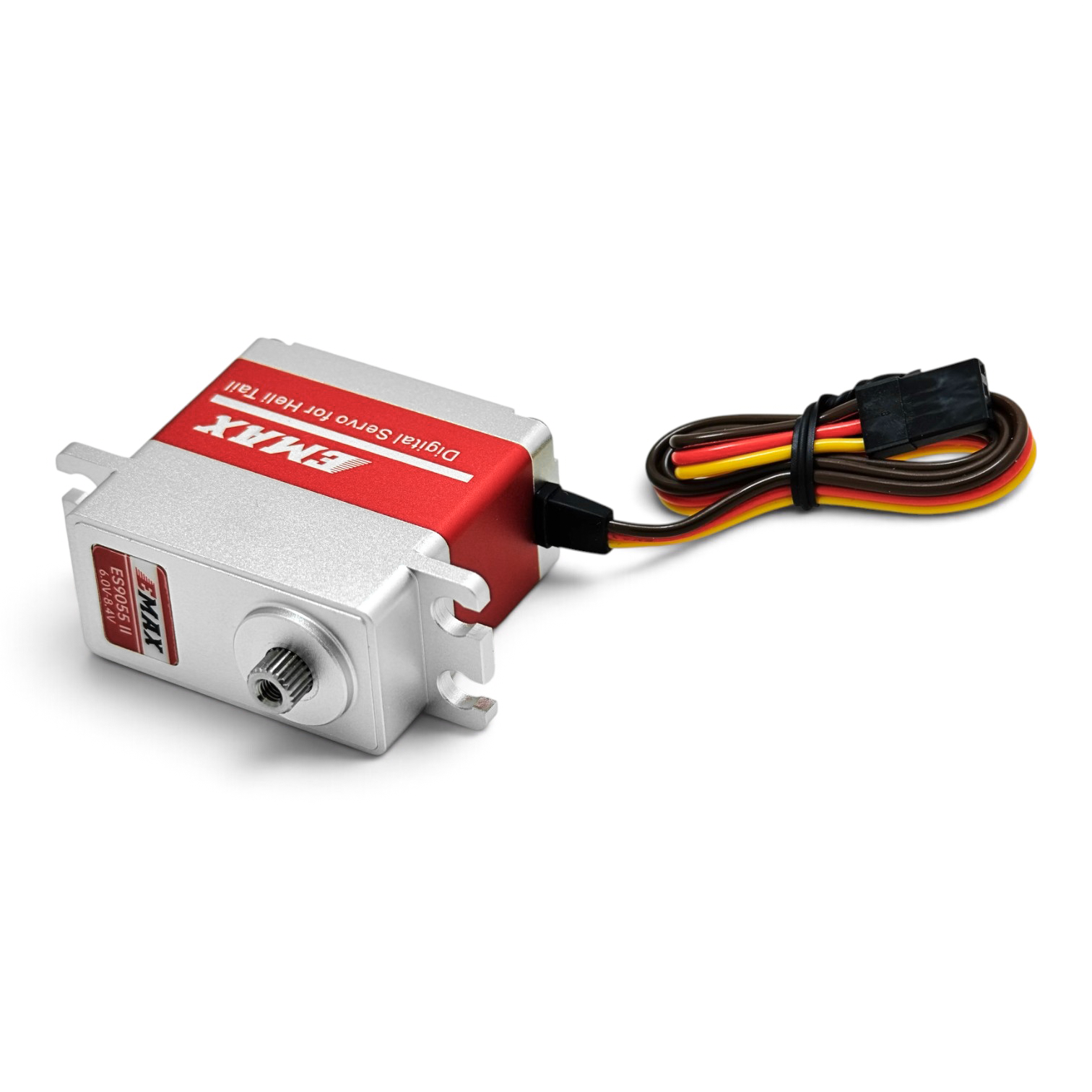

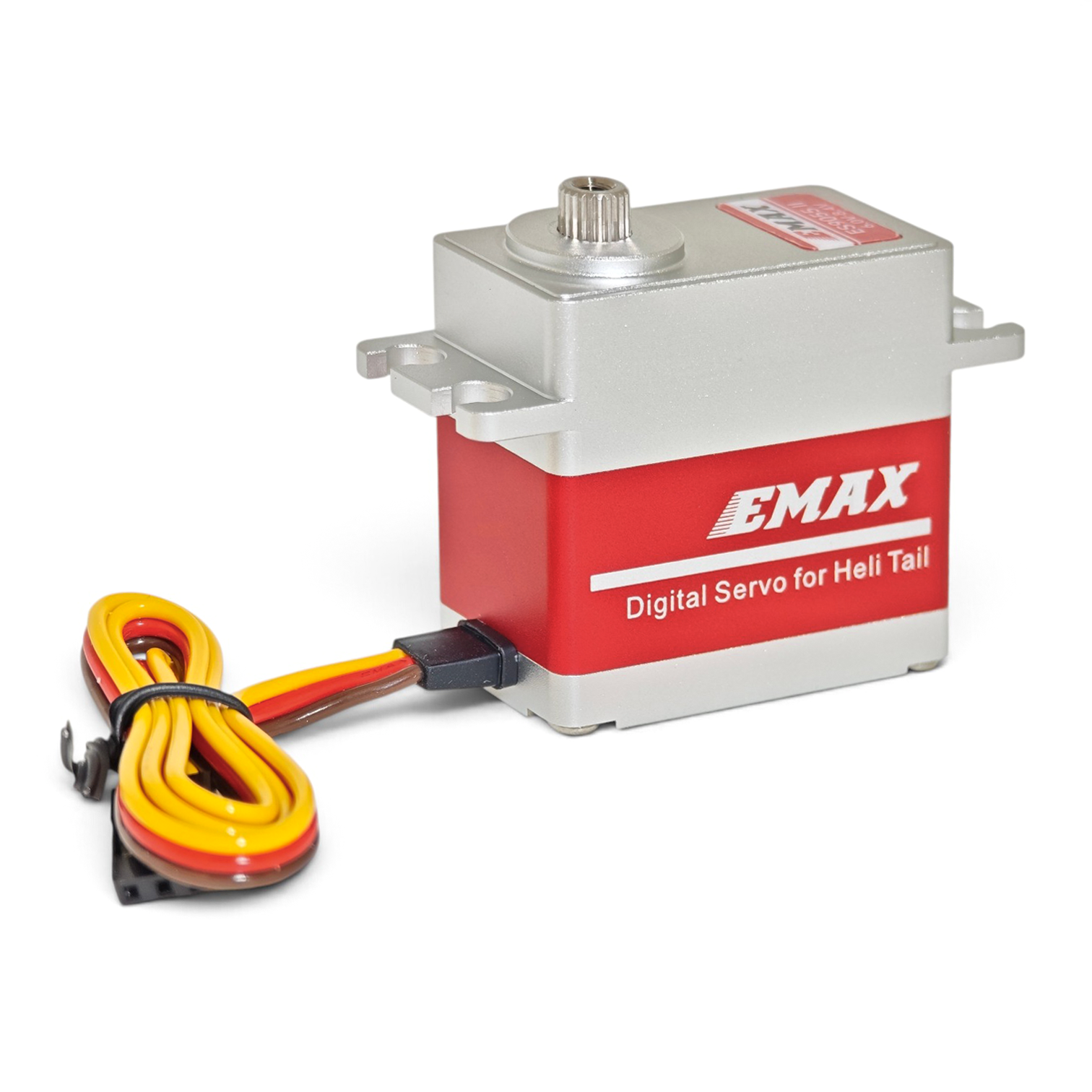

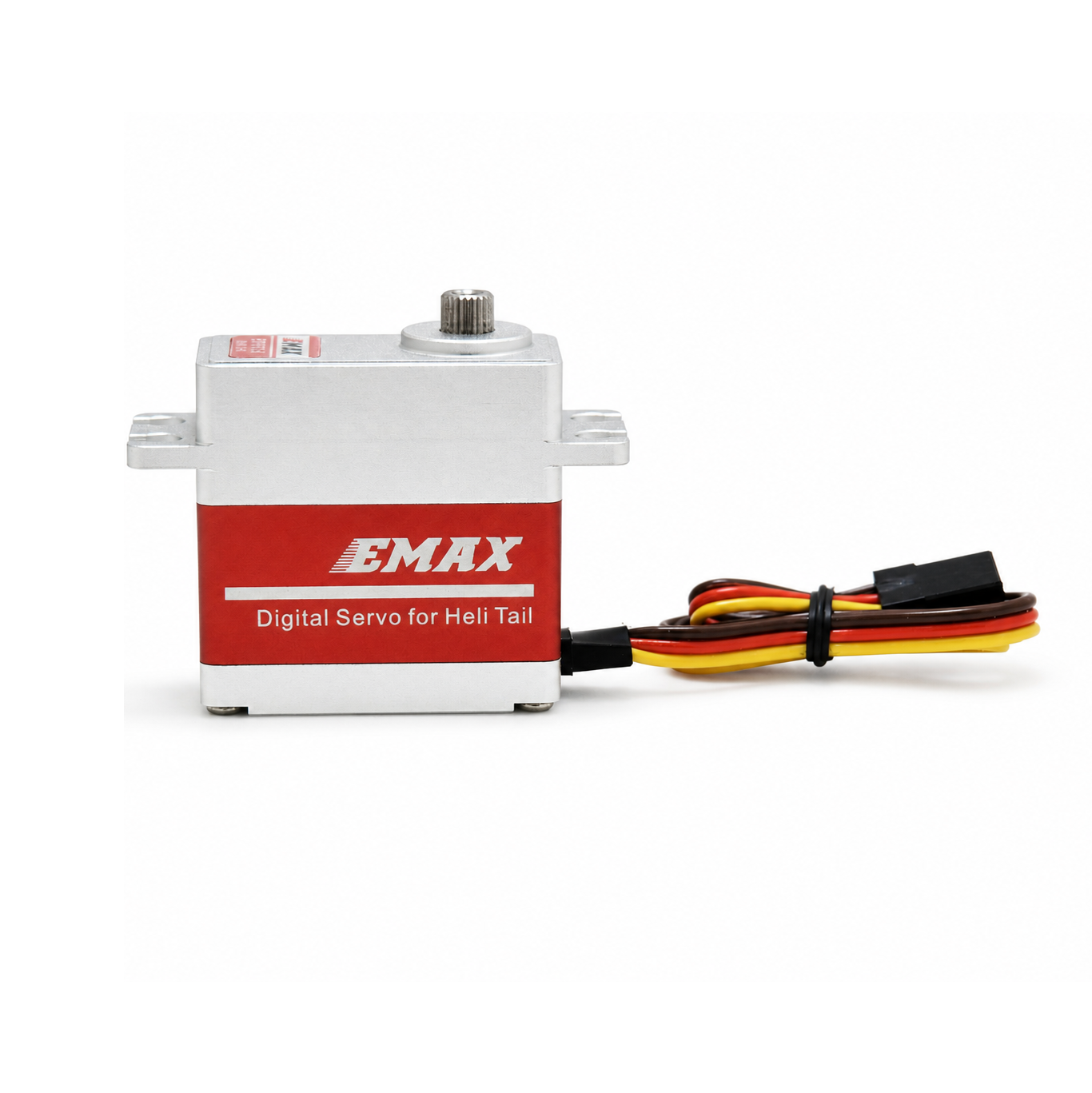

The EMAX ES9055II is a heavy-duty, high-voltage all-metal digital servo engineered for demanding heli tail, fixed-wing control surface, robotic joint, and automation applications. Built around a contactless magnetic encoder, the ES9055II delivers drift-free centering under sustained vibration with up to 35 kgf·cm of stall torque at 8.4V. Configurable for 180° or full 360° positional control, with a standard JR connector and 23T spline for drop-in compatibility with existing installations.
Key Features
Non-contact magnetic encoder — stable centering during vibration and long operating cycles
All-metal case and gear train for heavy-duty durability
High voltage operation: 6.0–8.4V (2S LiPo direct compatible)
Up to 35 kgf·cm stall torque @ 8.4V
Configurable 180° ±2° or full 360° positional control
Standard JR connector and 23T spline
PWM range: 500–2500μs
Recommended Applications
Heavy-duty fixed-wing aircraft control surfaces
High-load RC helicopters
Robotic joints and rotating mechanisms
Special-purpose RC and automation equipment
Specifications
Product Type: Magnetic Encoder / Brushed / Digital / All-Metal Servo
