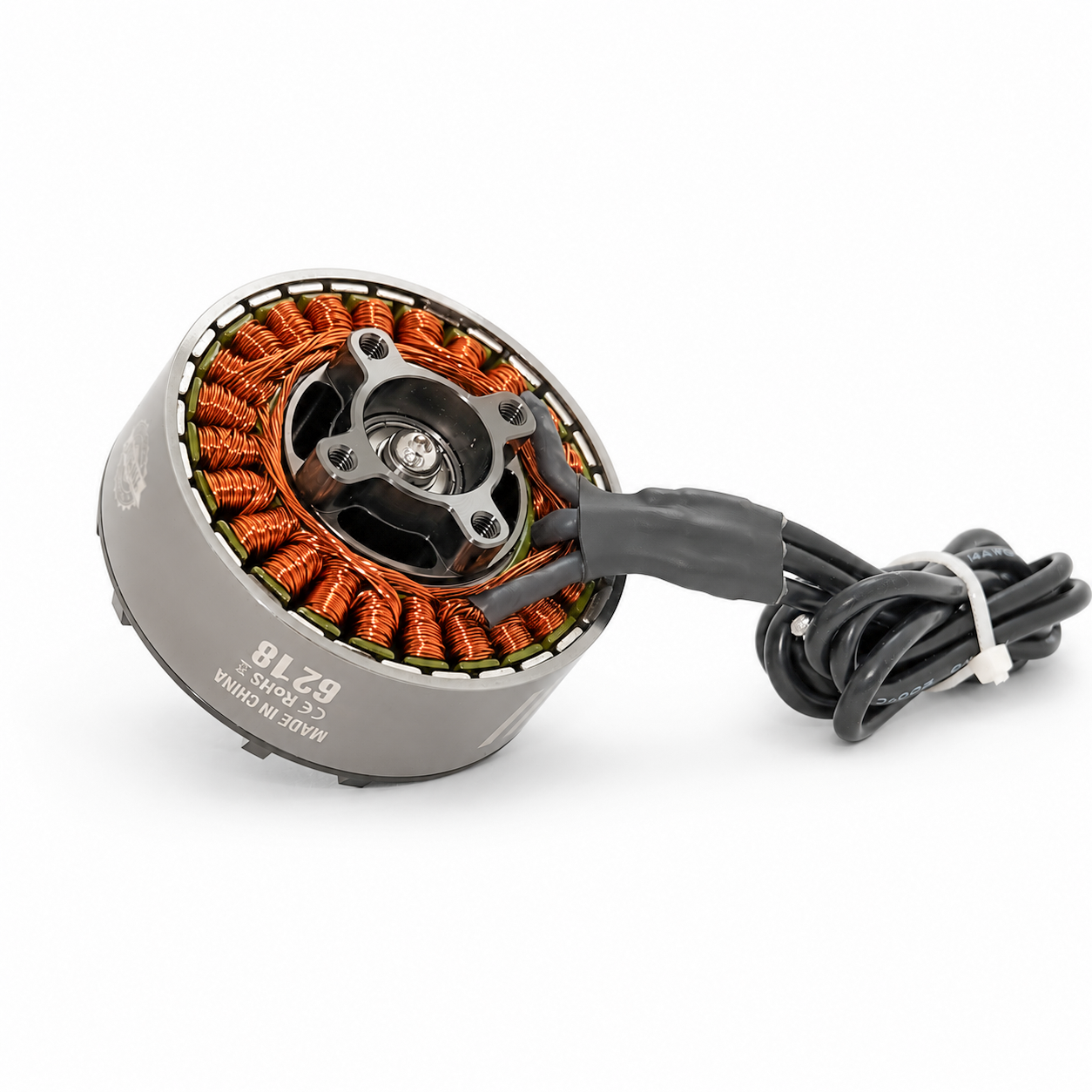

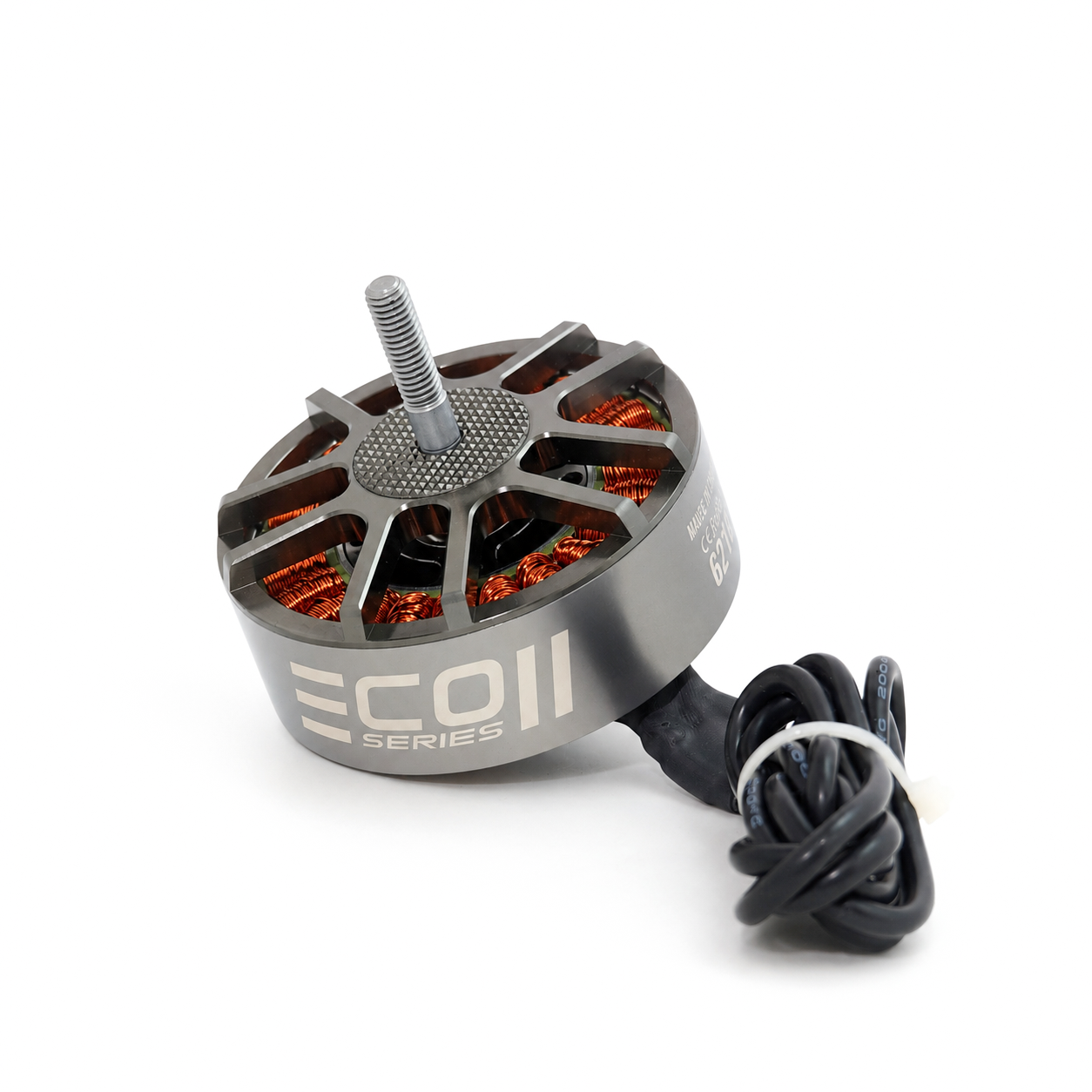

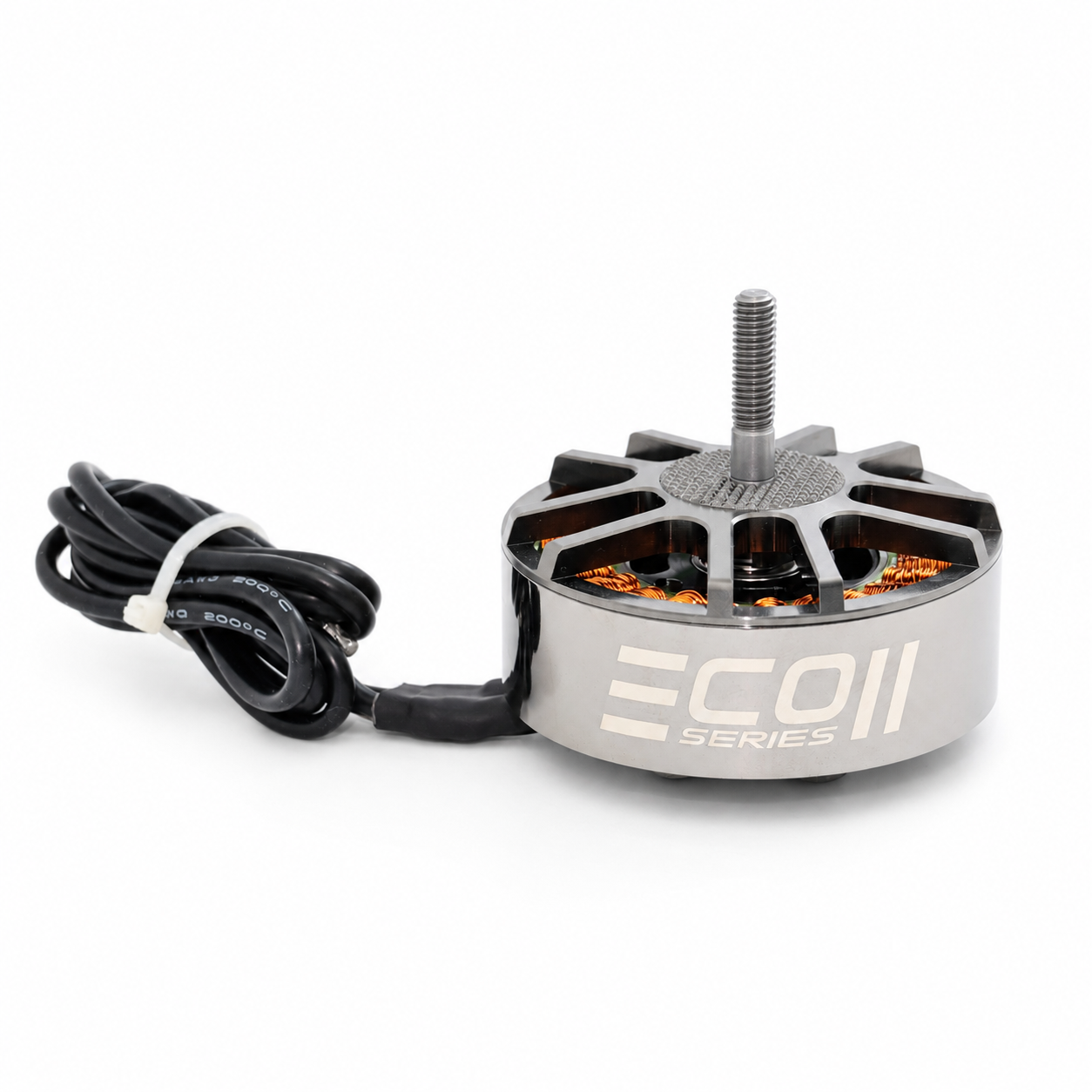

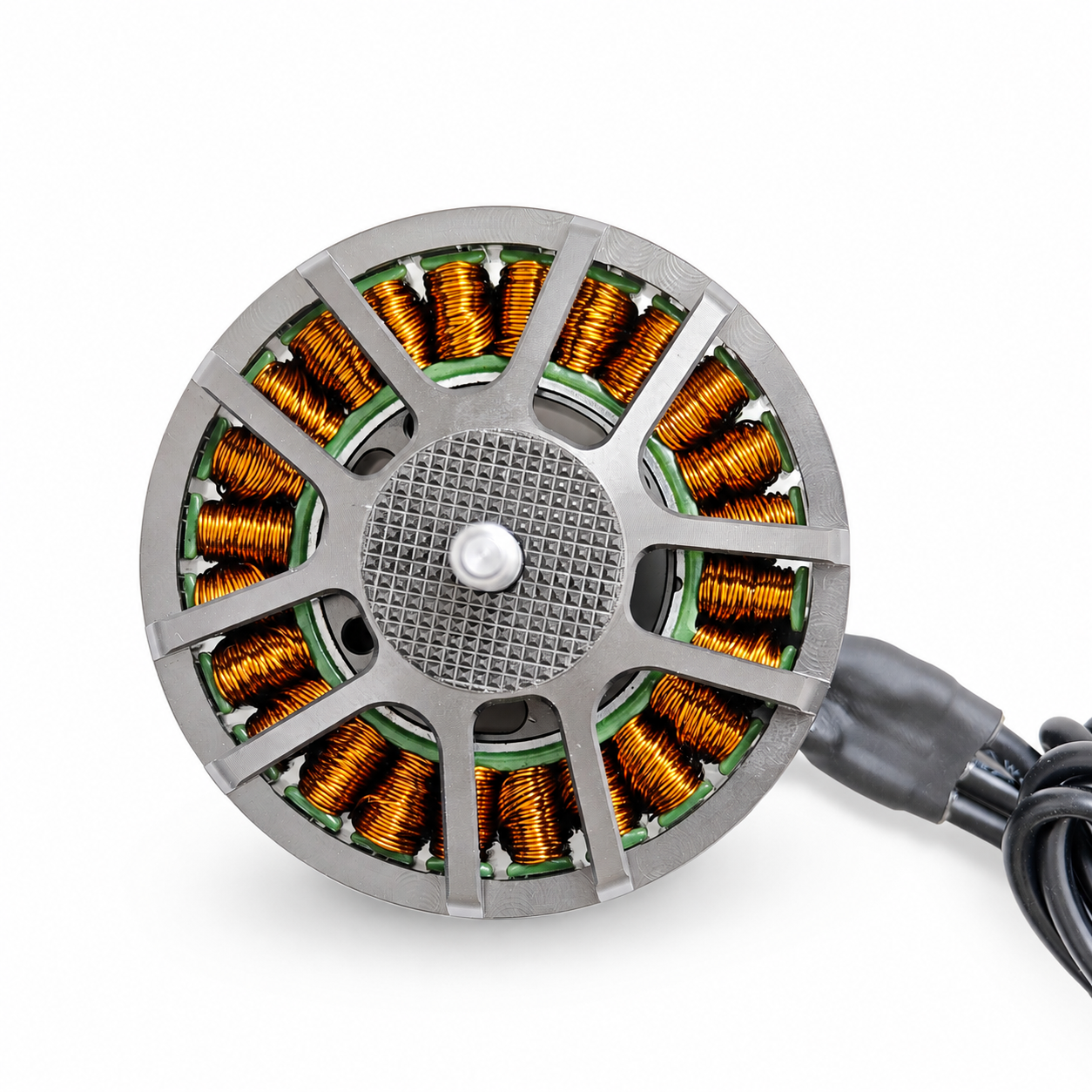

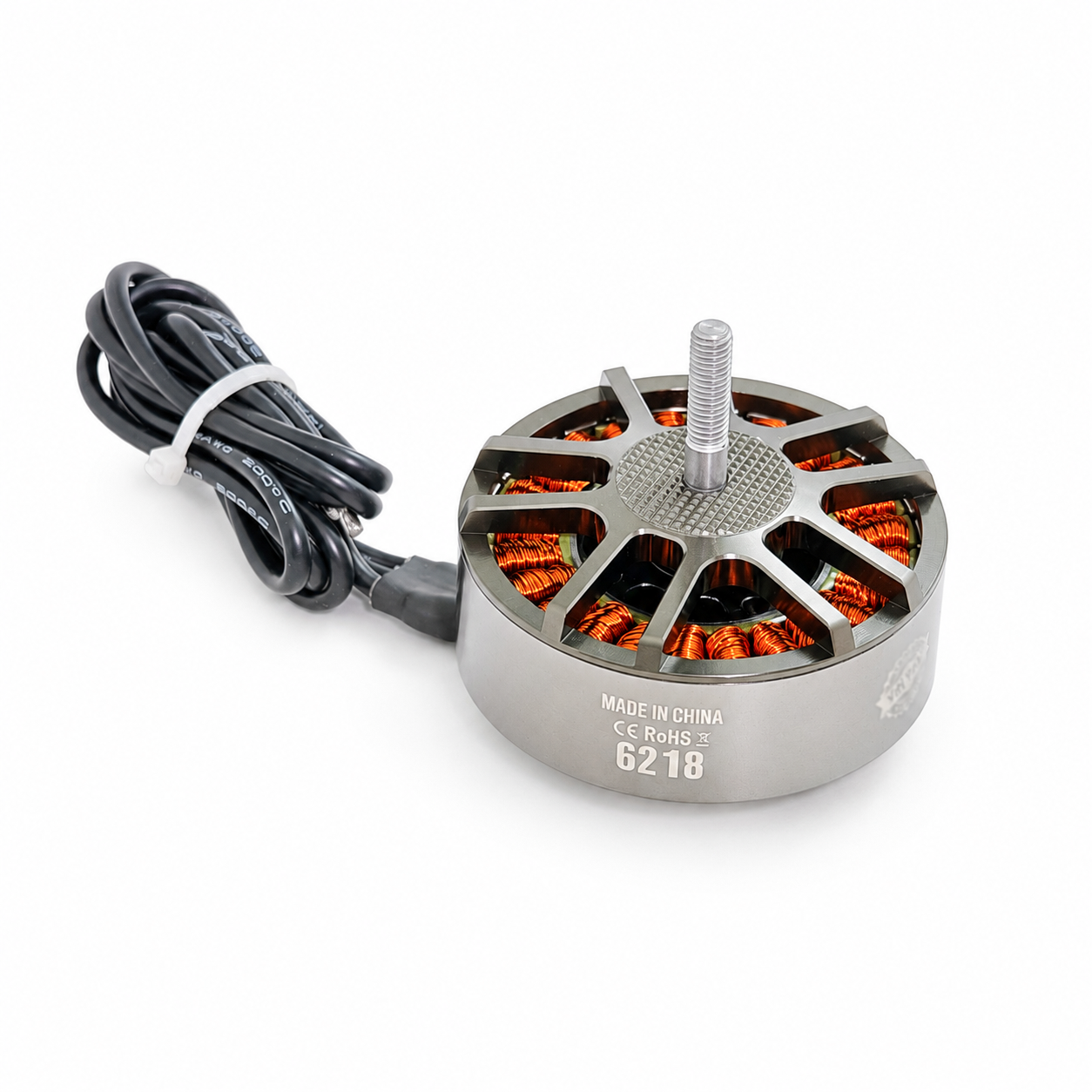

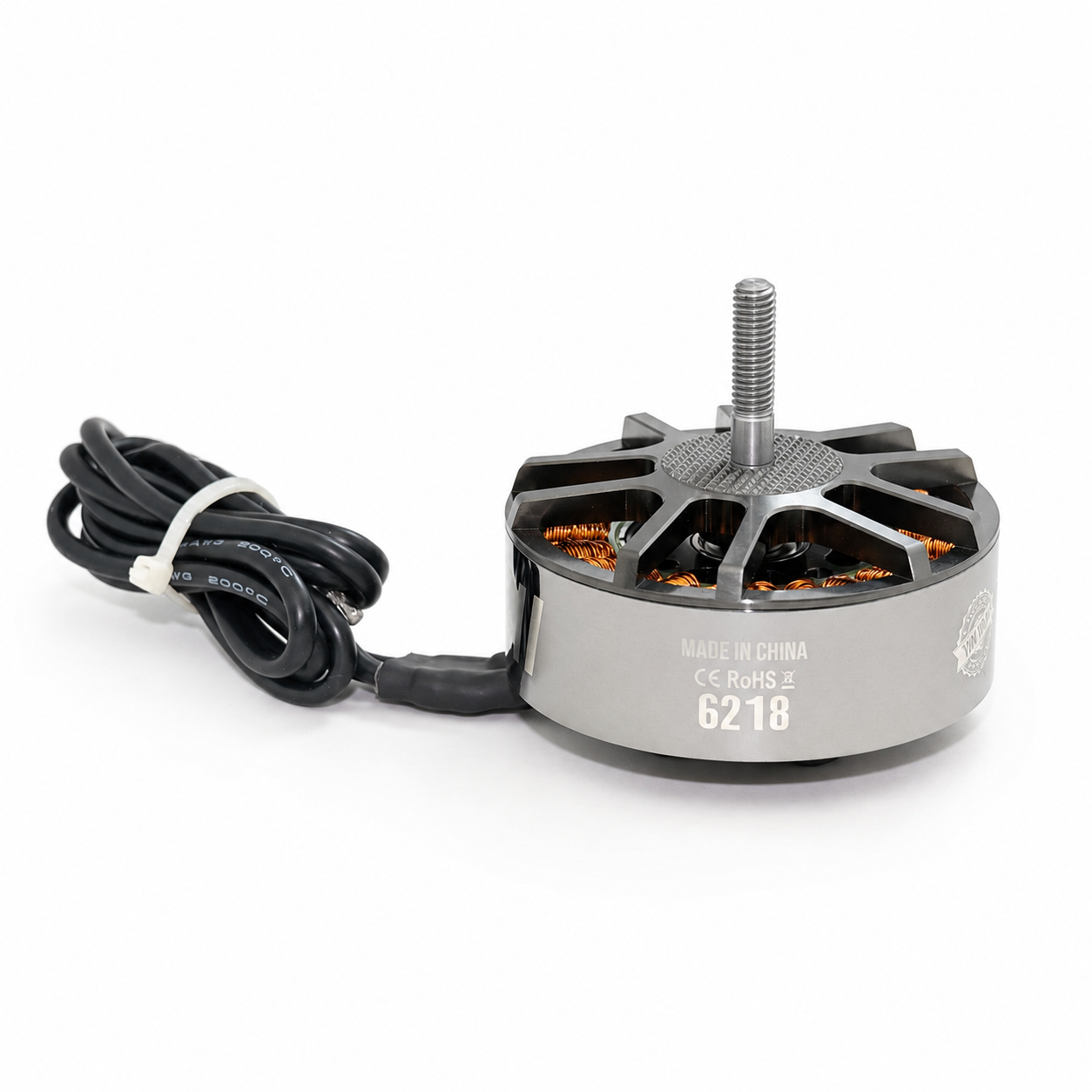

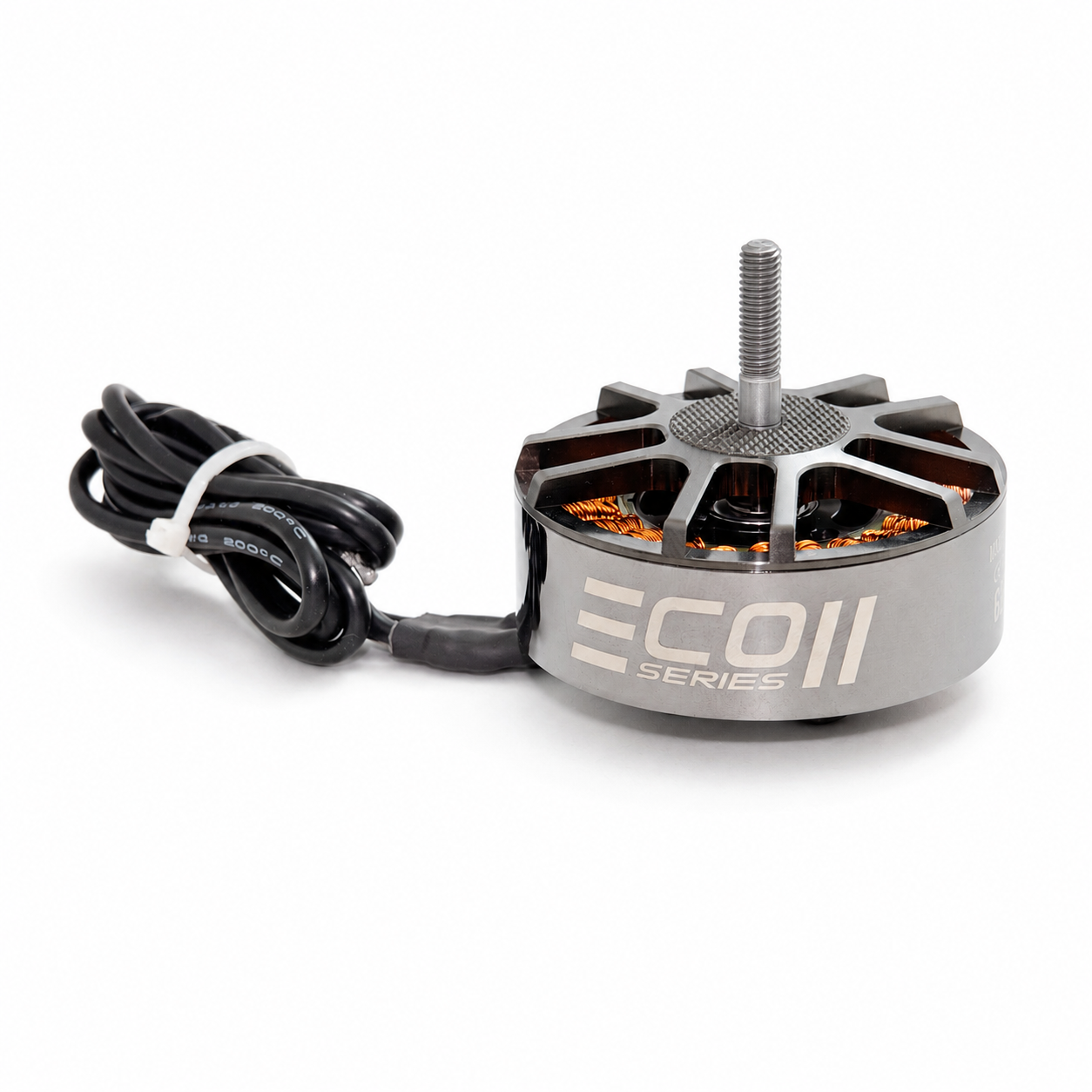

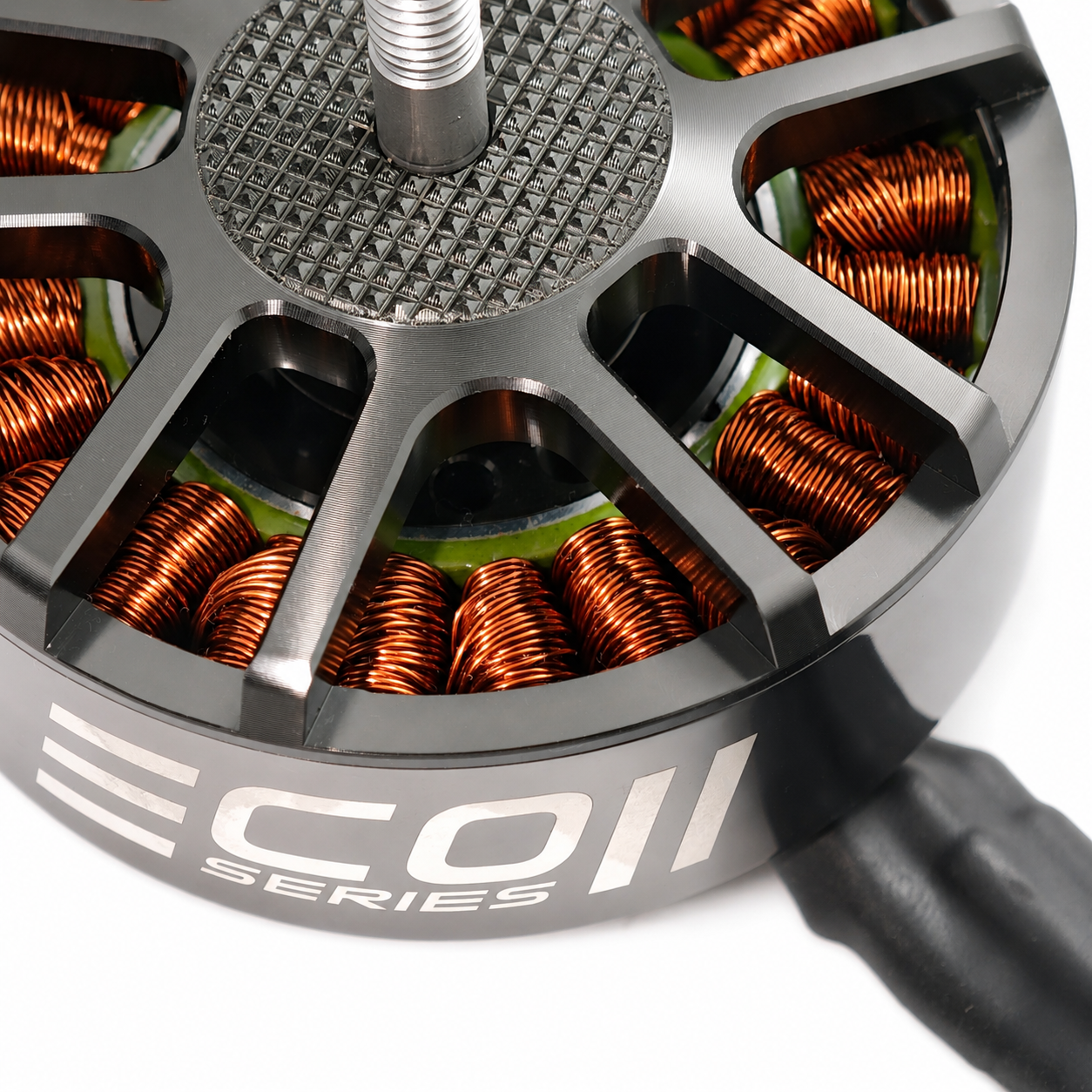

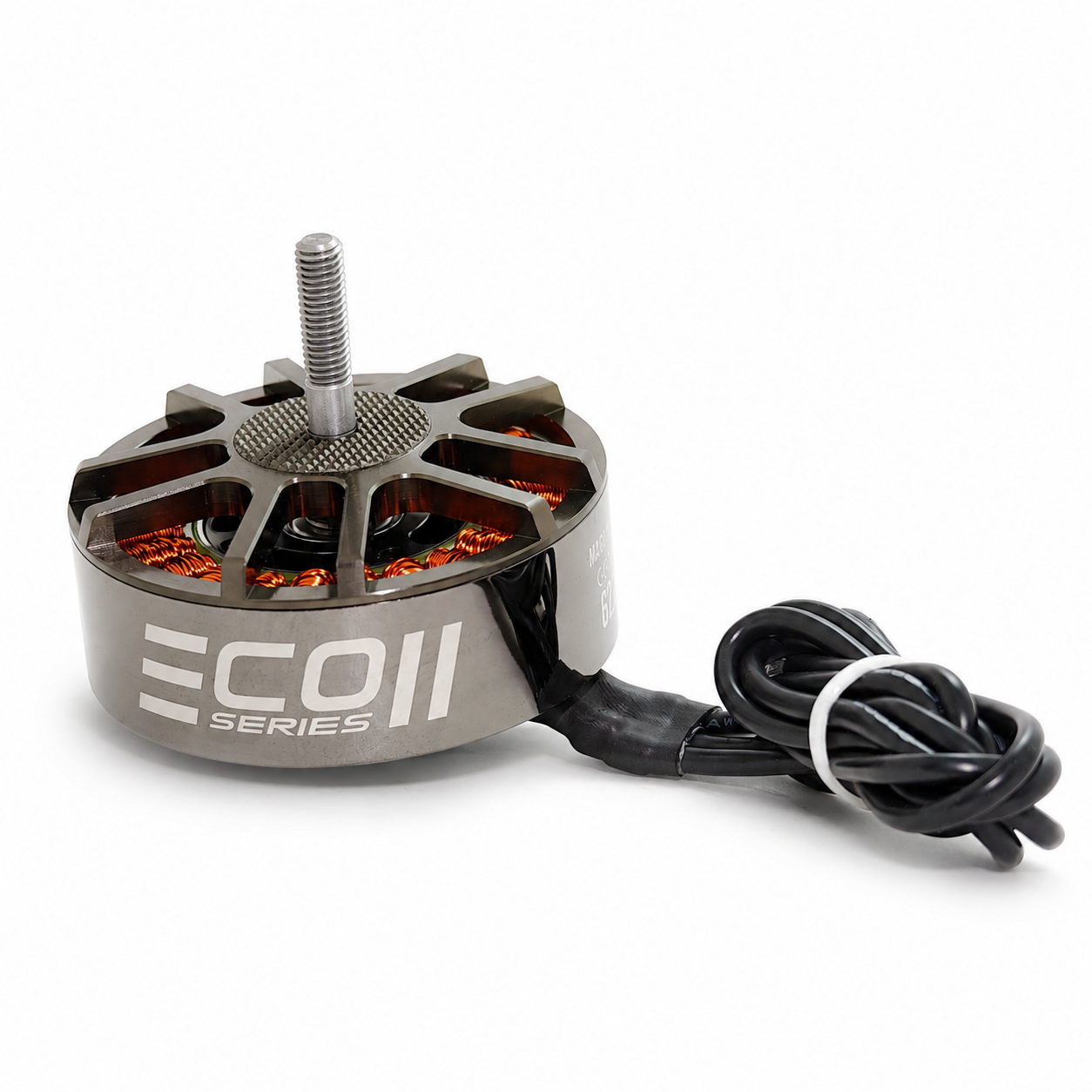

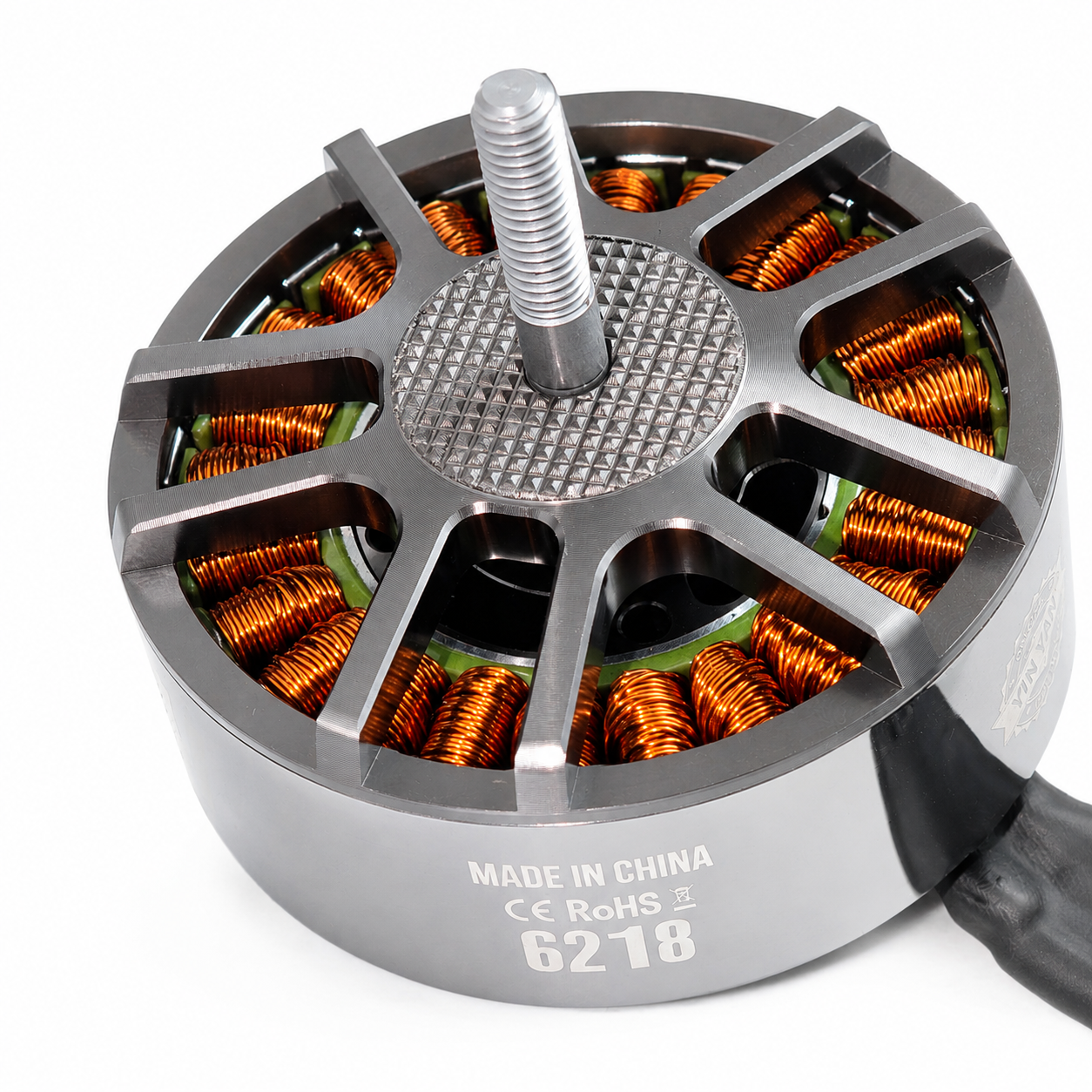

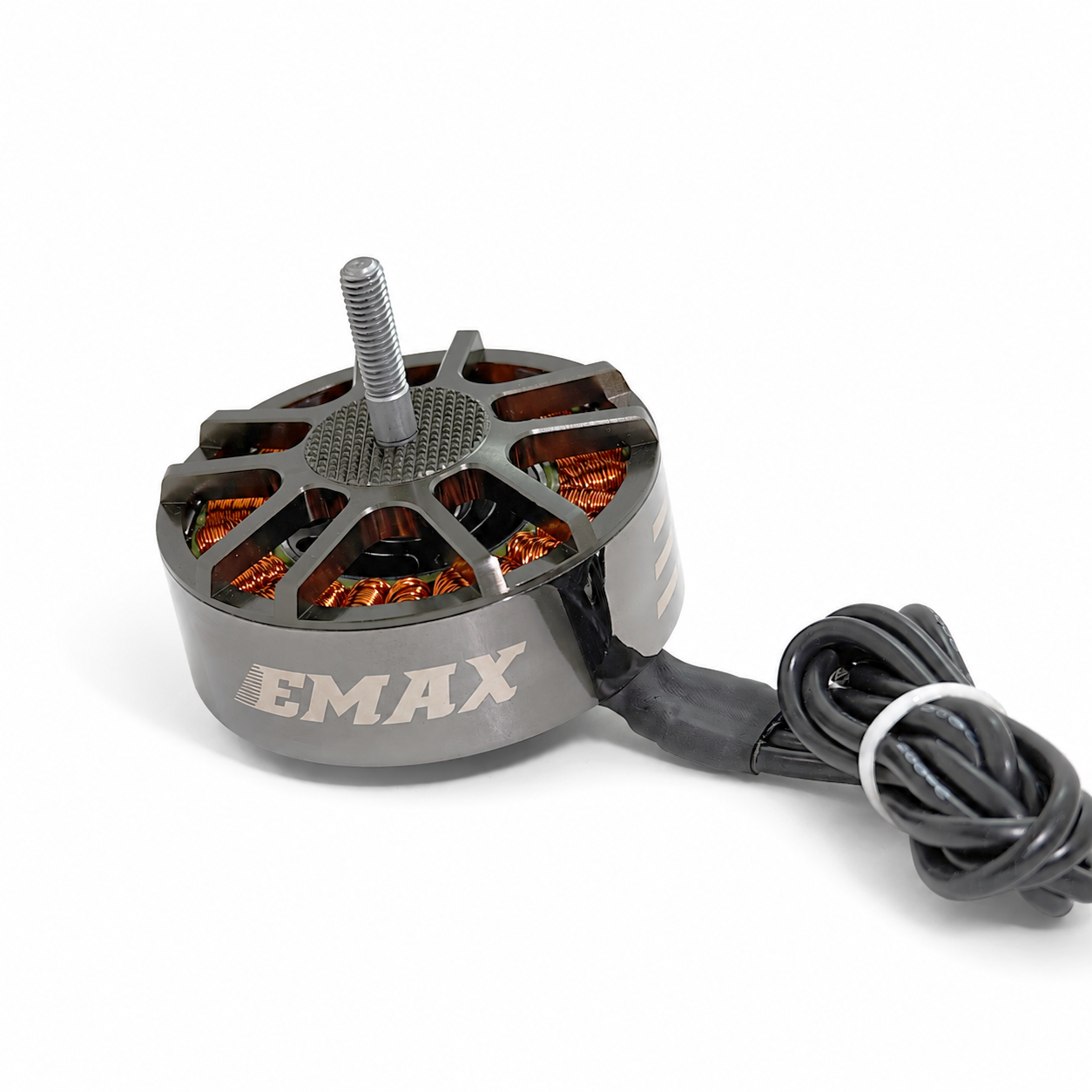

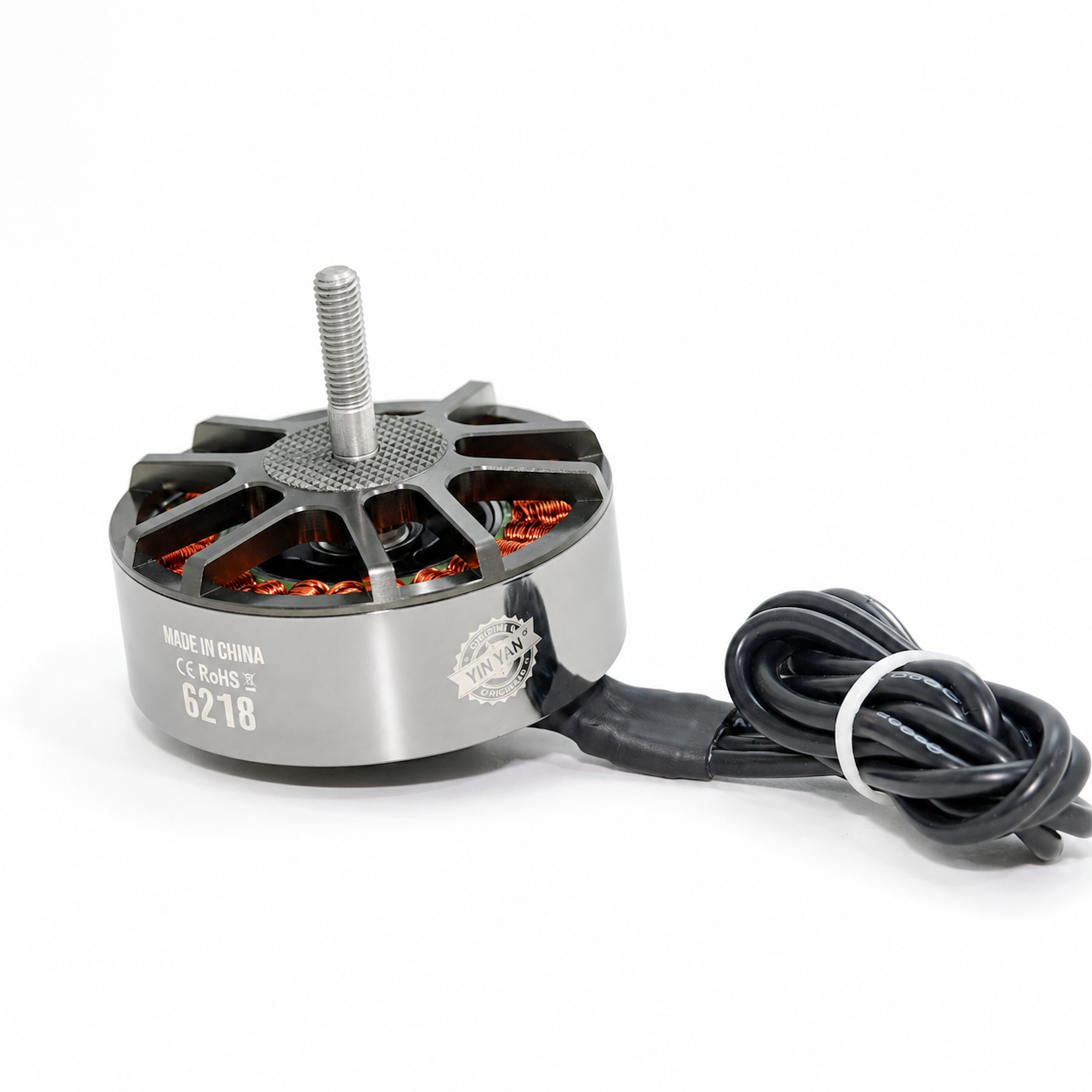

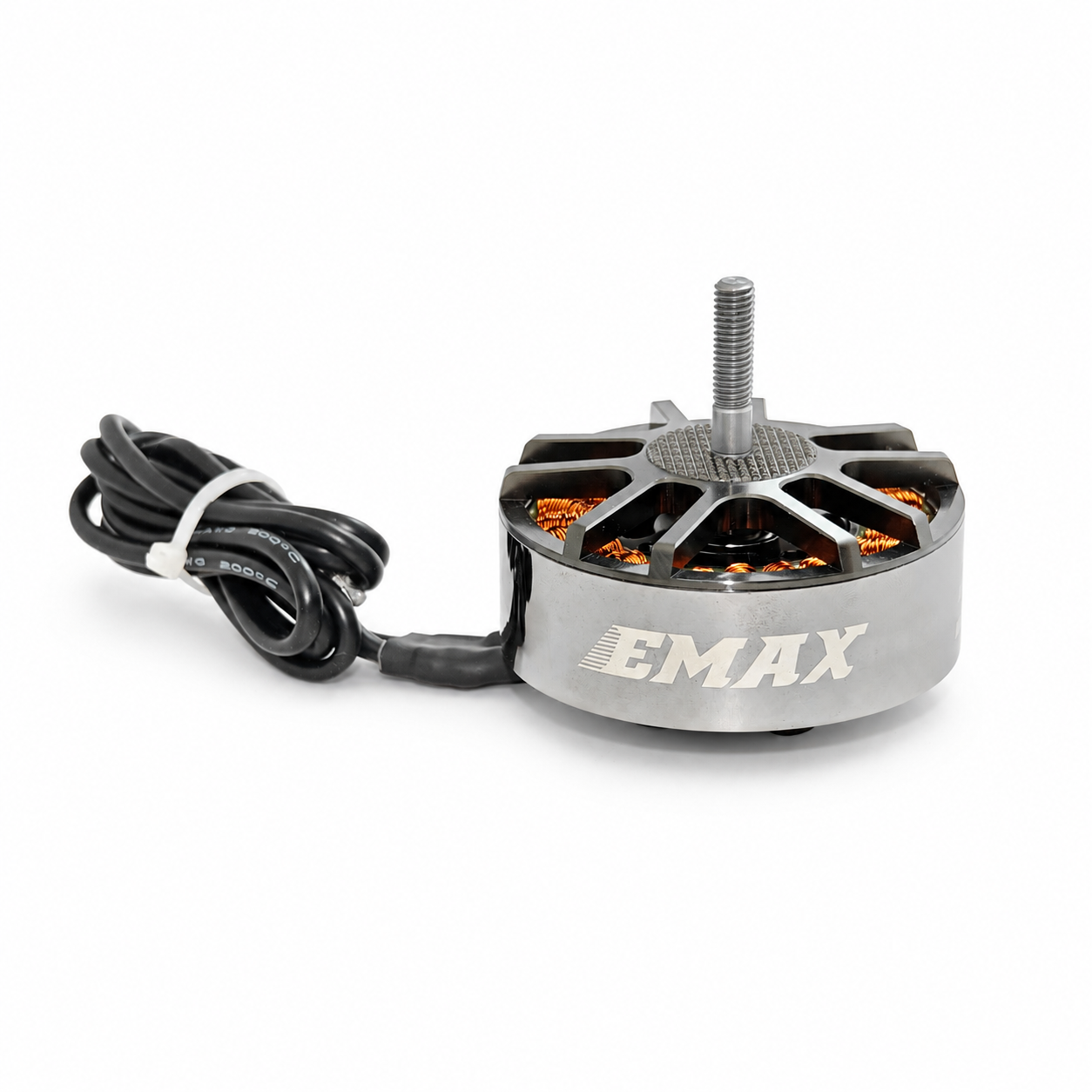

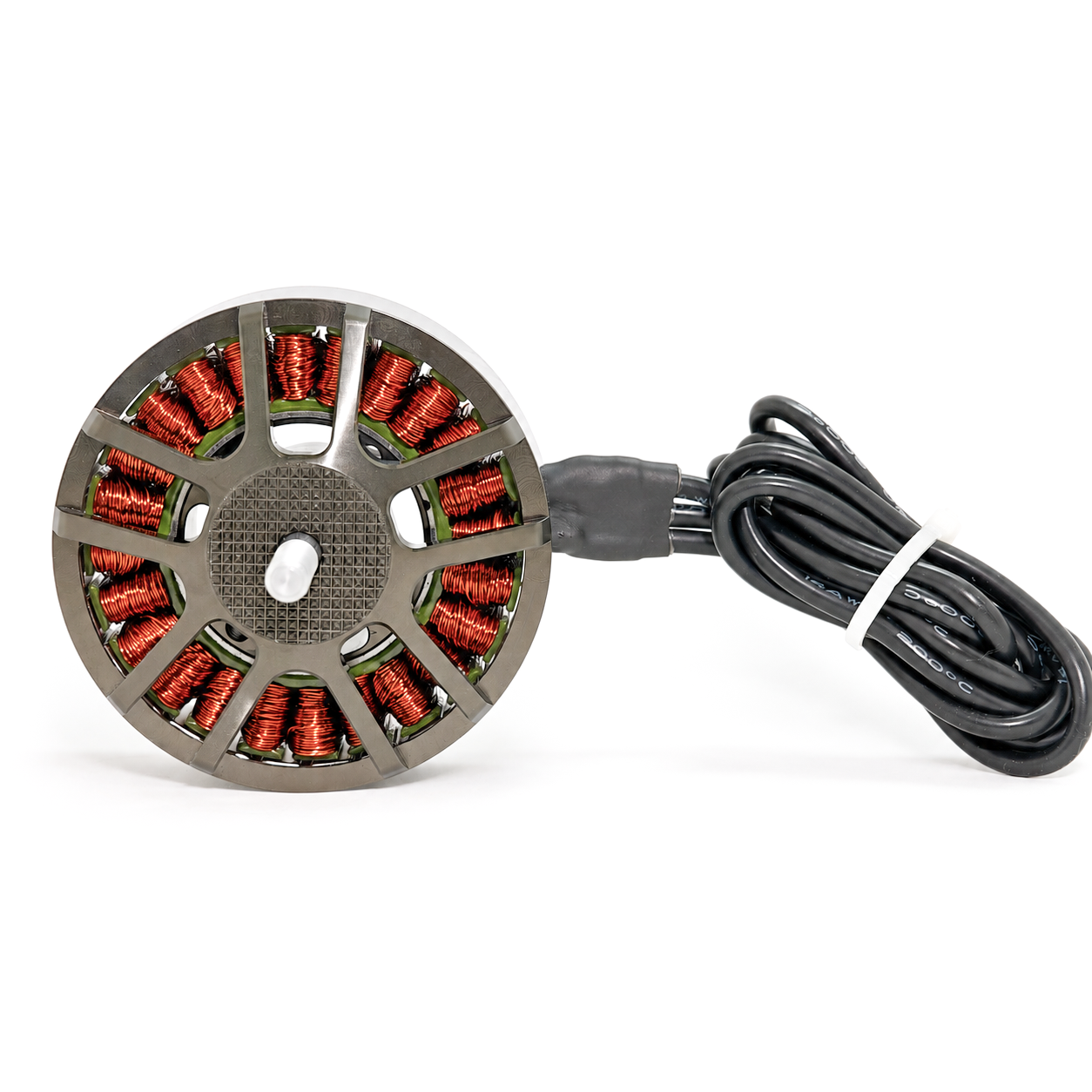

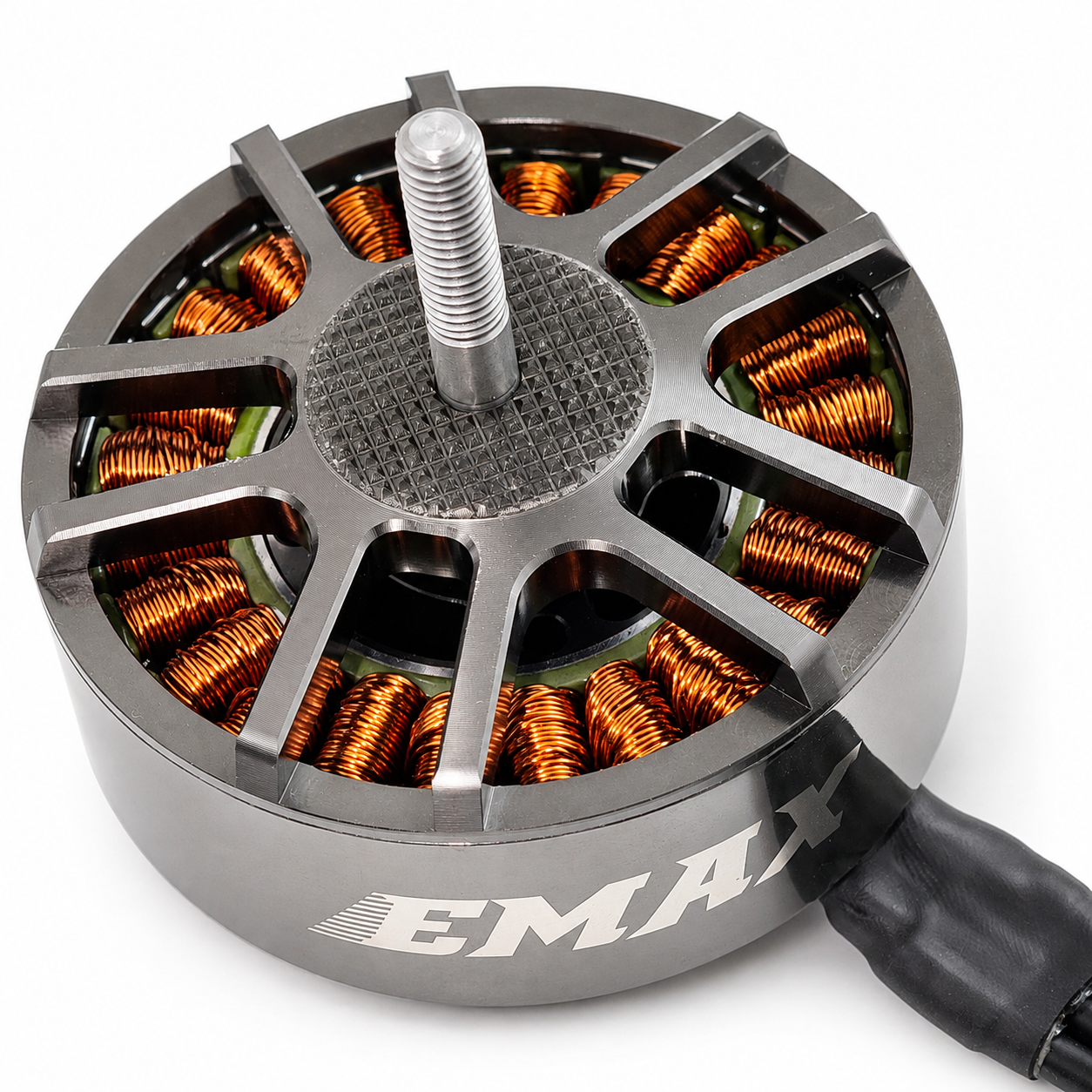

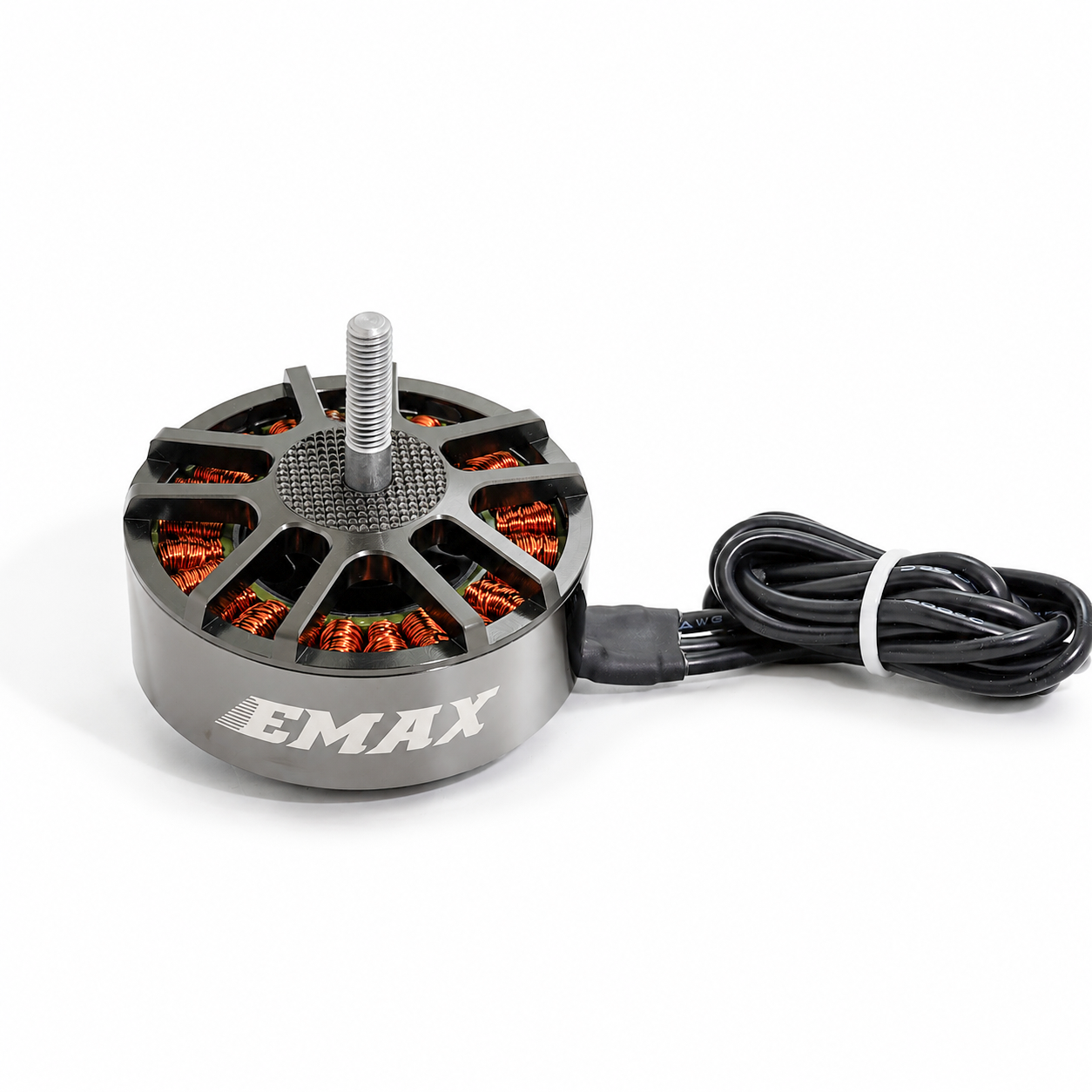

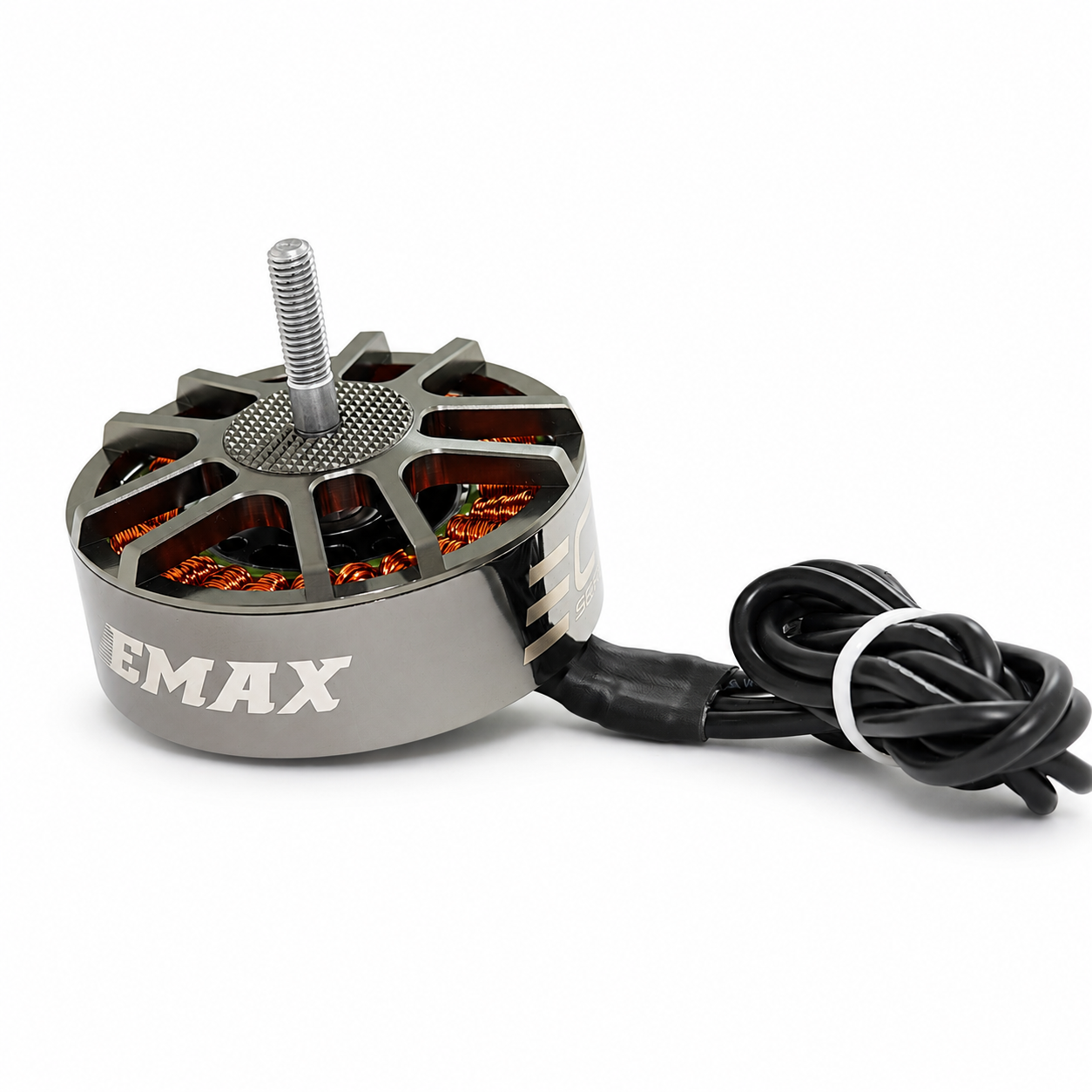

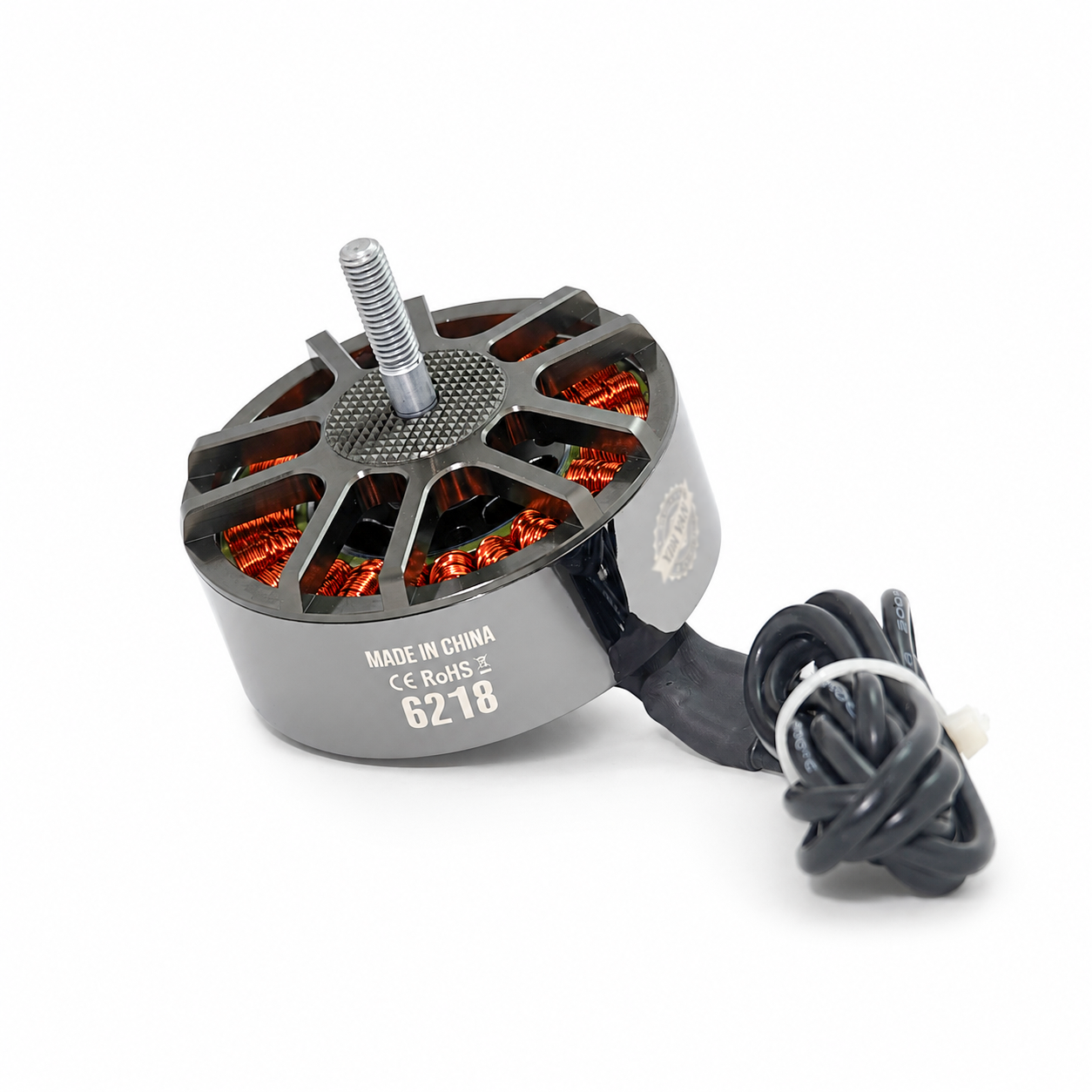

EMAX ECOII 6218 Brushless Motor

The EMAX ECOII 6218 is a large-format, high-torque brushless motor built for demanding 12S FPV platforms, heavy-lift systems, and long-range aircraft. Sharing the same 69.3mm diameter as the 6215 but with a taller 66.2mm stator height, the ECOII 6218 delivers greater torque and sustained power output for 18"–22" propeller configurations. Built around a 24N28P framework with a 6mm steel shaft, 30×30mm 4×M4 mounting pattern, and 400mm 14AWG silicone leads.

Key Features

Stator configuration: 24N28P
Available KV ratings: 180KV / 200KV
Optimized for 18"–22" propellers on 12S
Taller stator (66.2mm) for greater torque vs. ECOII 6215
6mm steel bearing shaft with CW thread

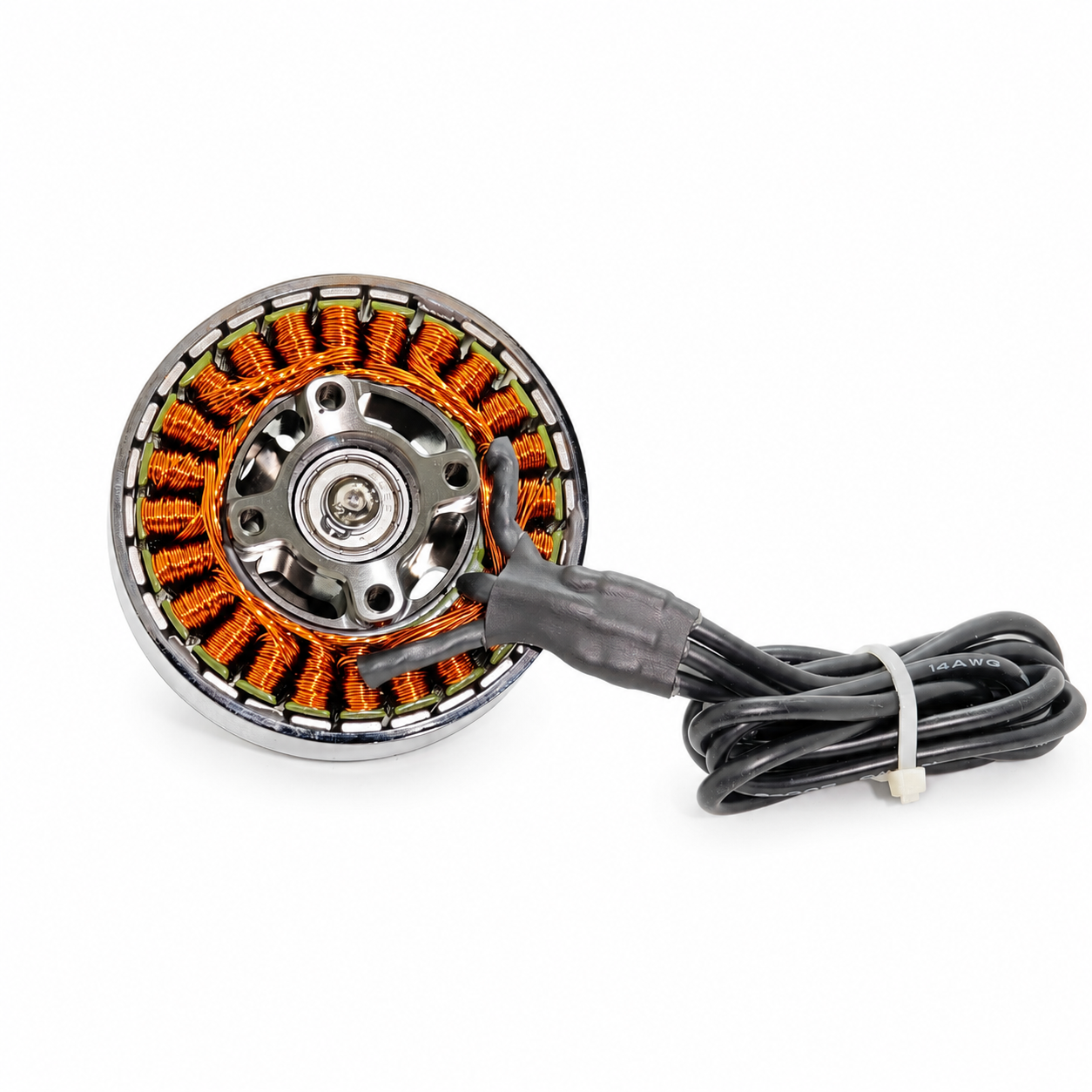

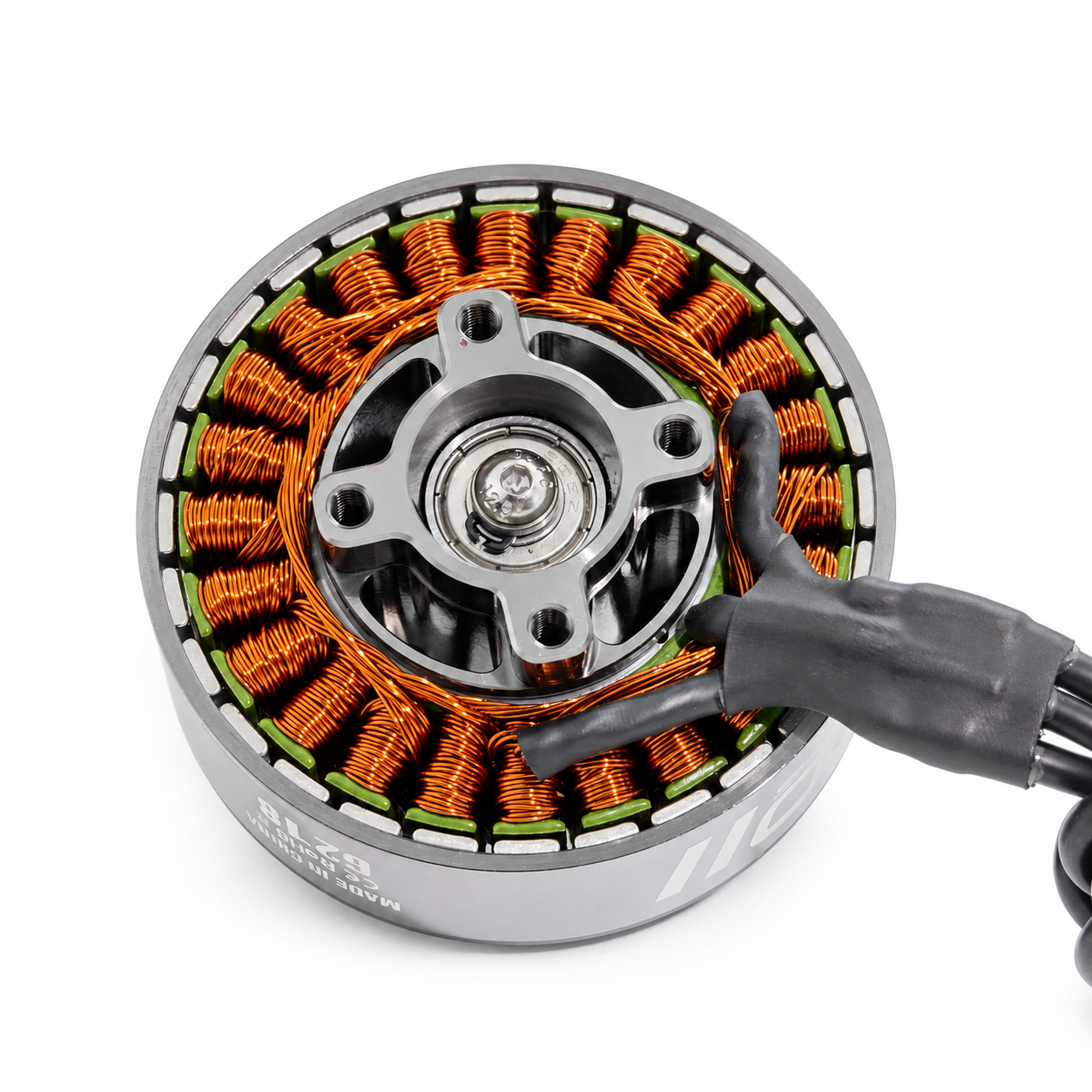

30×30mm — 4×M4 mounting pattern
400mm 14AWG silicone wire leads
Precision bearings and anodized finish
Multi-strand winding for smooth, efficient power

Specifications

Motor Model: ECOII 6218
Dimensions: Ø69.3 × 66.2mm
Framework: 24N28P
KV Options: 180KV / 200KV
No. of Cells: 12S
Propeller: 18"–22"
Weight (with wire): 431g
Bearing Shaft: 6mm
Prop Adapter Shaft Thread: M6
Shaft Thread: CW
Lead: 14AWG 400mm
Peak Current (180KV @ 6S): 73.7A | Max Power: 3510W
Peak Current (200KV @ 6S): 79A | Max Power: 3765W

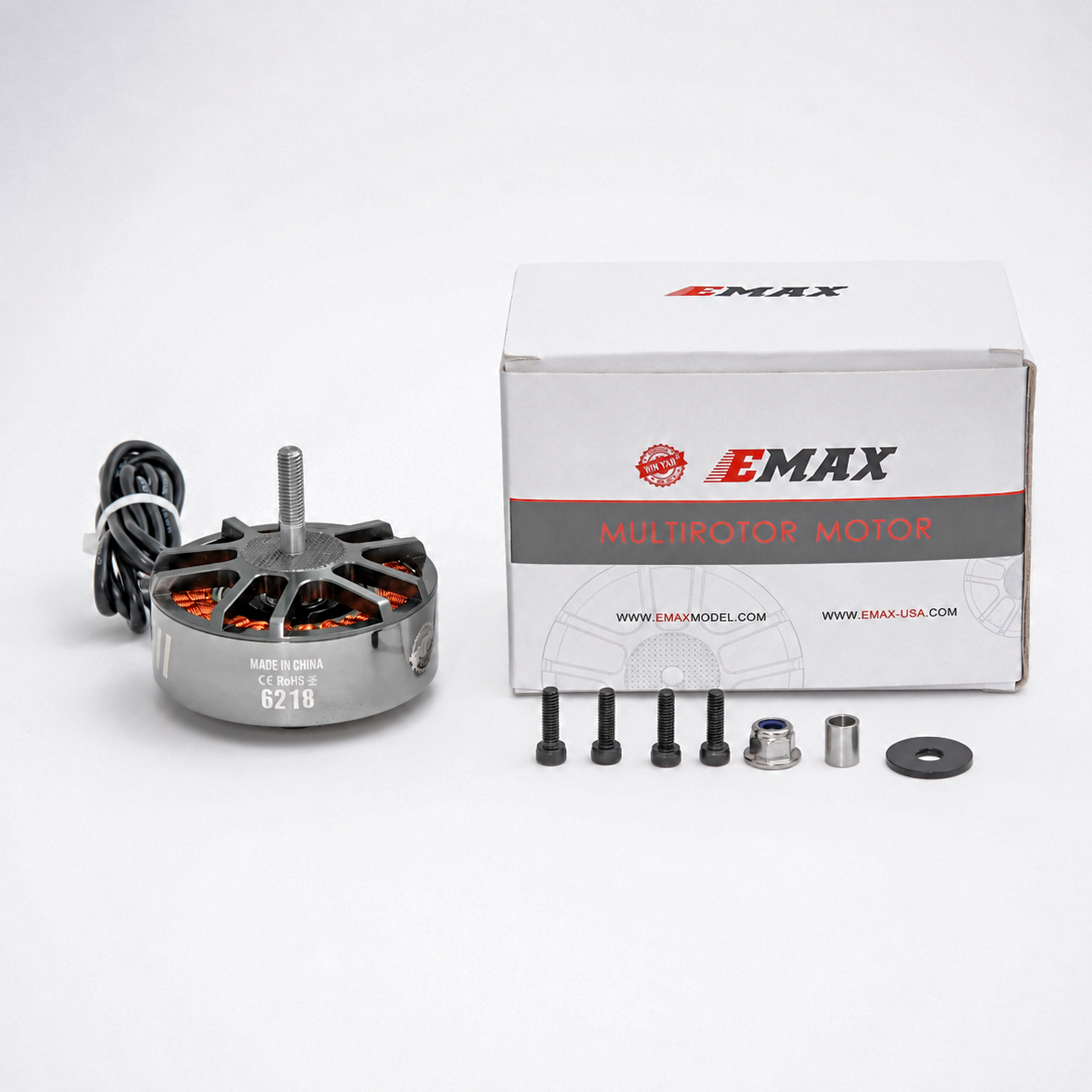

Package Includes

4× M4×14 screws
1× Steel M6 nylock nut
1× Propeller shaft sleeve
1× Paddle gasket
