Aircraft Model: Tinyhawk Lite Adventure
Wheelbase: 115mm
Max Dimensions (LxWxH): 148 x 144 x 45mm
Weight: ~59g (excluding battery)
Motor: 1020 Coreless Cup DC 3.7V

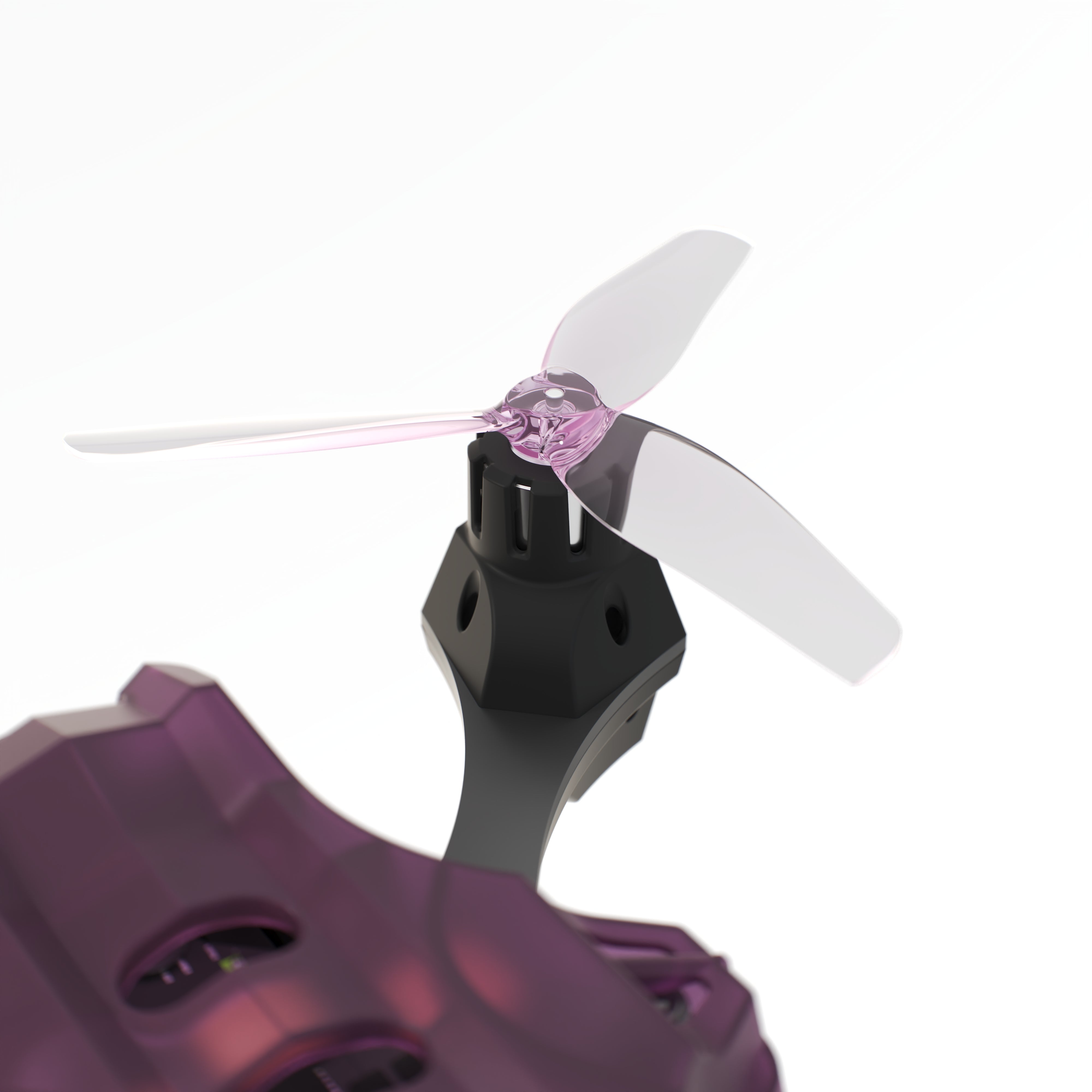

Propeller: 65mm 3-blade
Flight Controller: STM32F411 (100MHz), 1S input
Receiver: Onboard ELRS 2.4GHz (SPI)

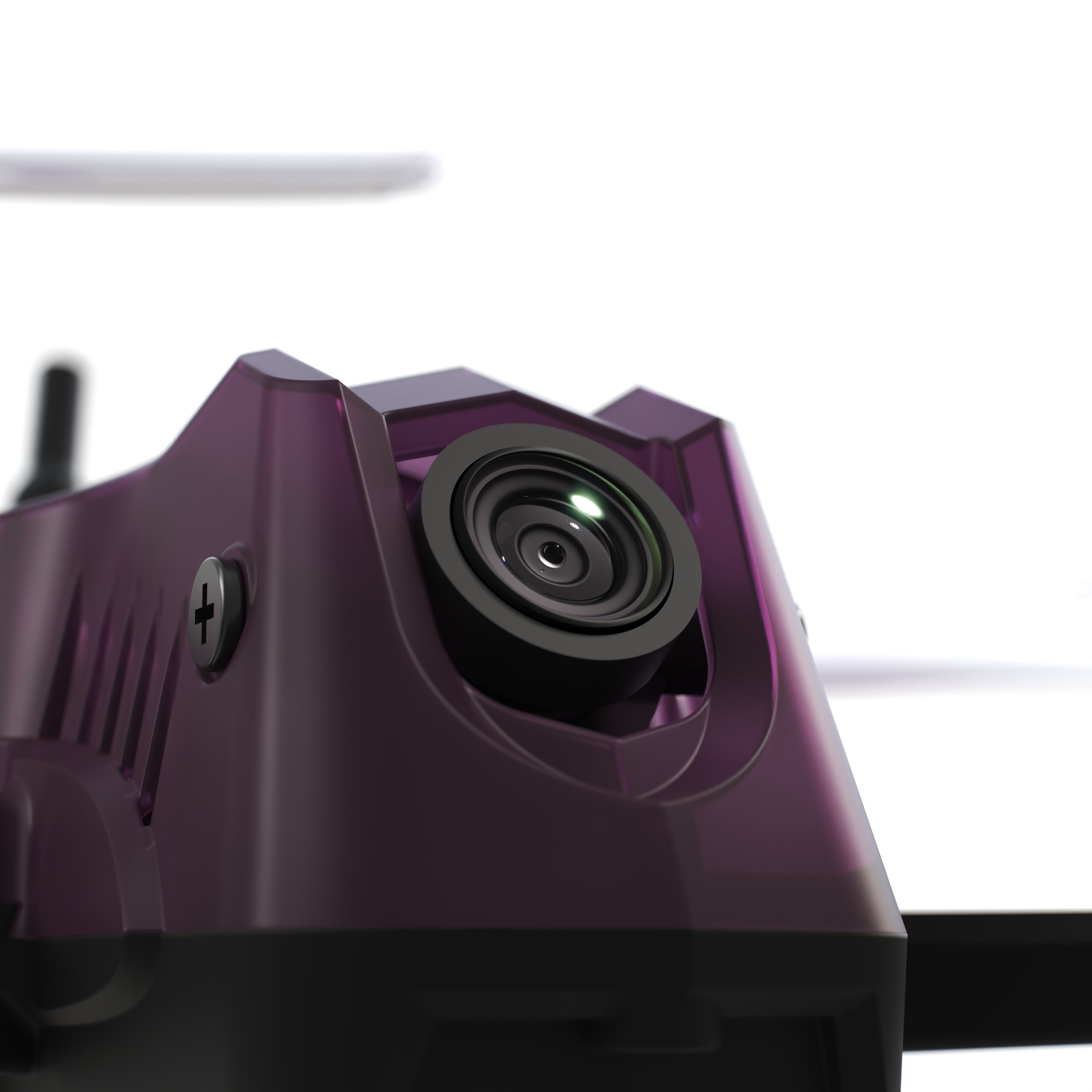

Camera: E02
VTX: 32-bit 40CH open-source, 0/25/100/400mW switchable
Battery: 1S HV 850mAh

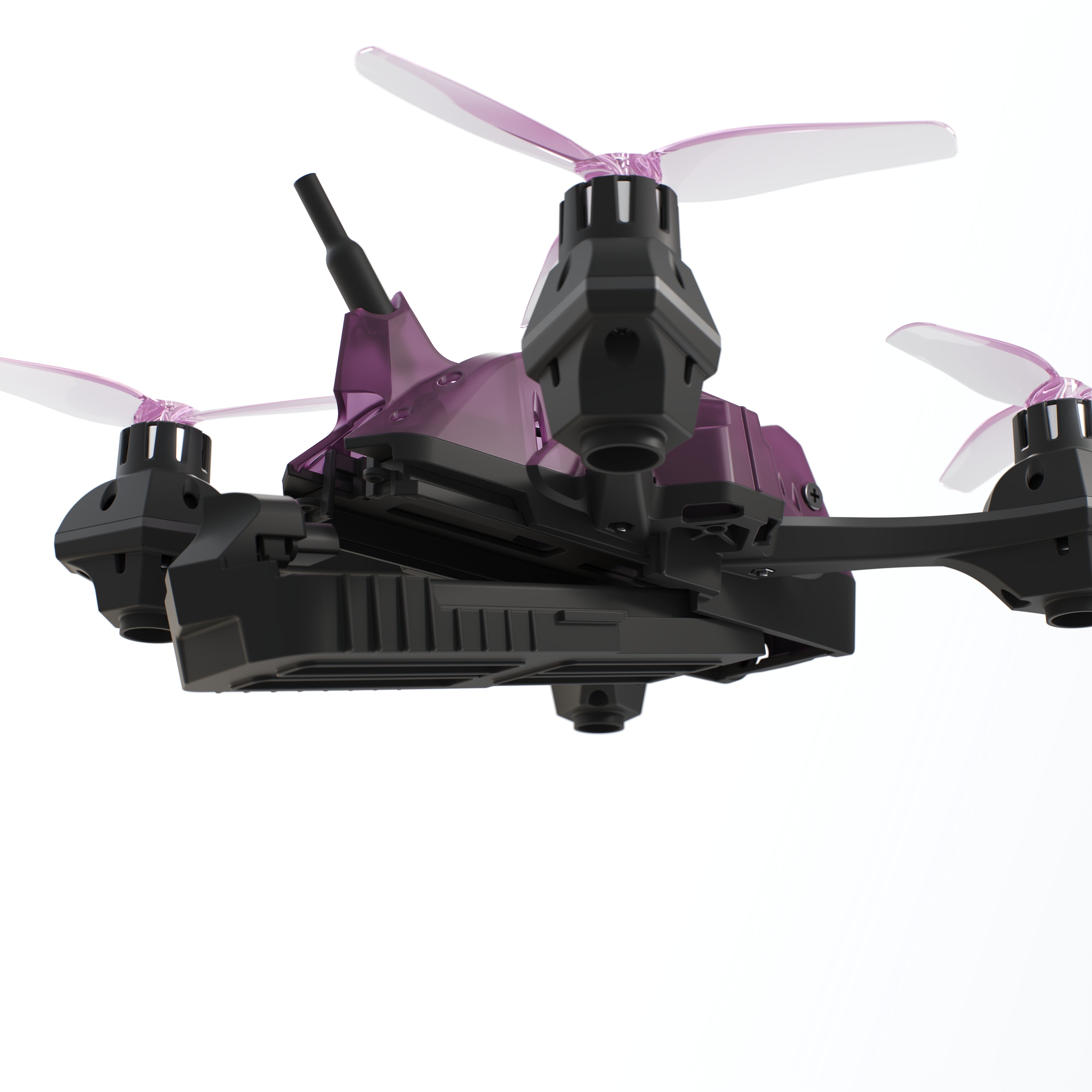

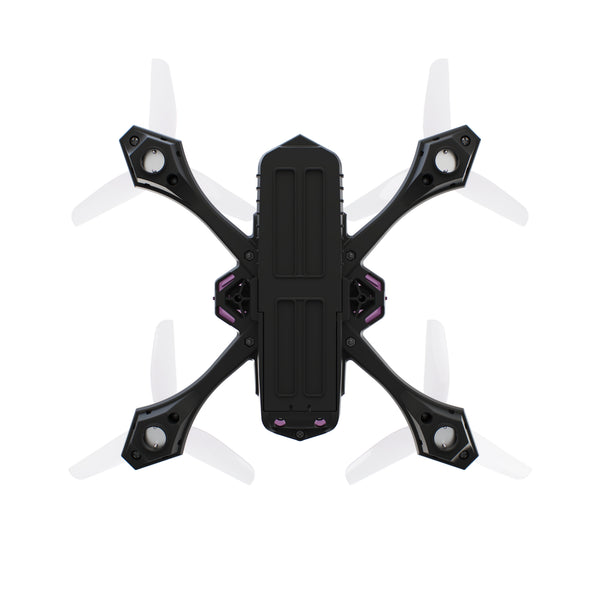

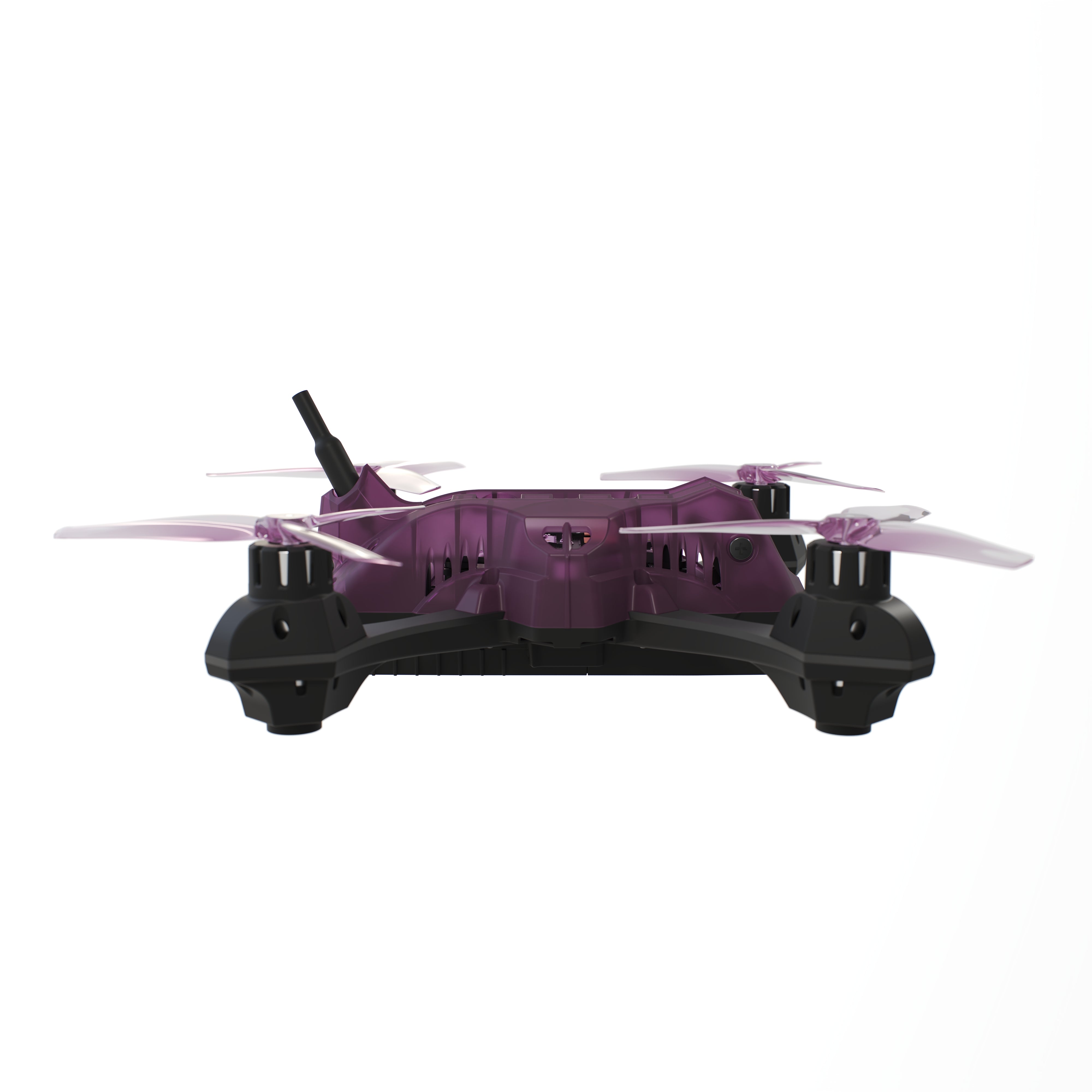

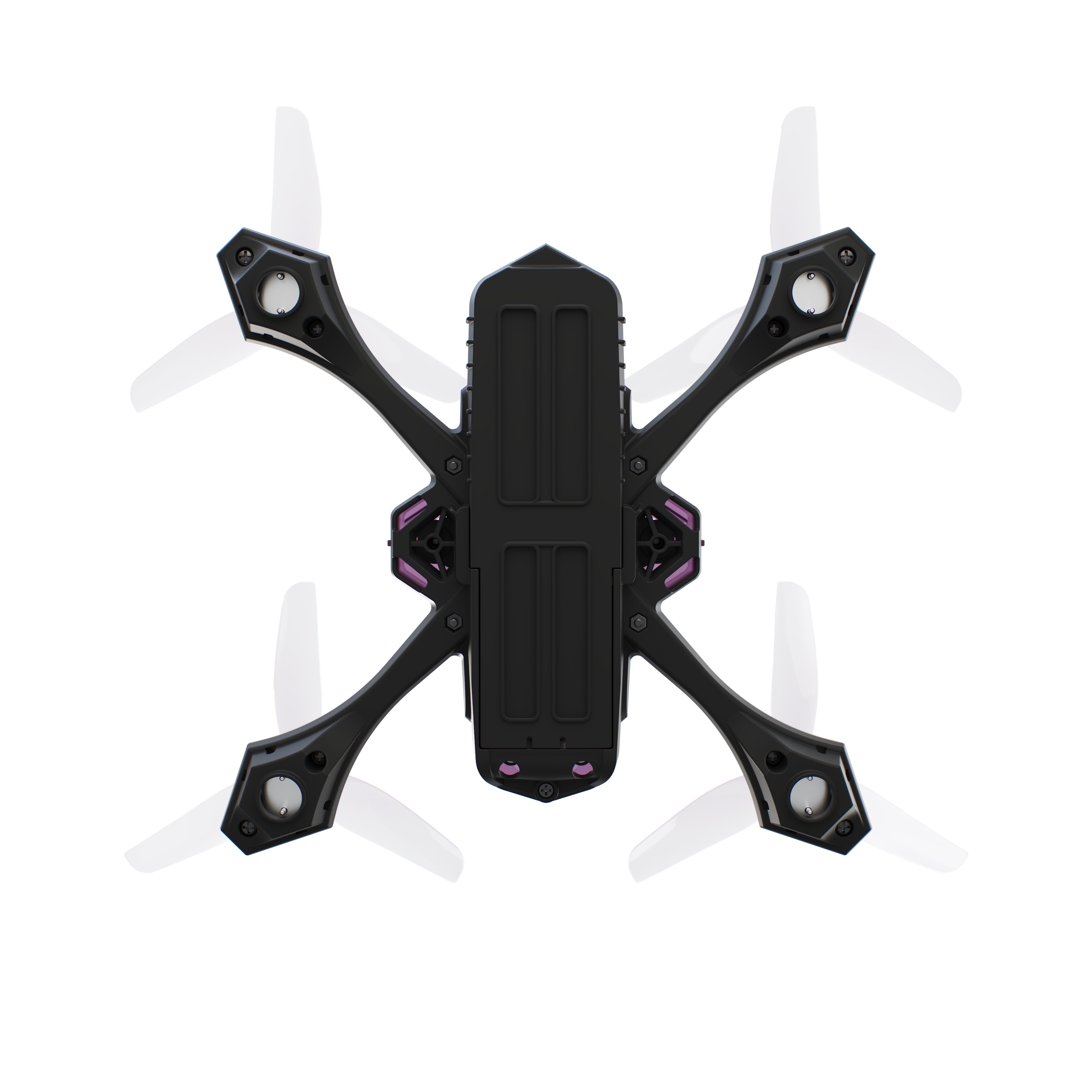

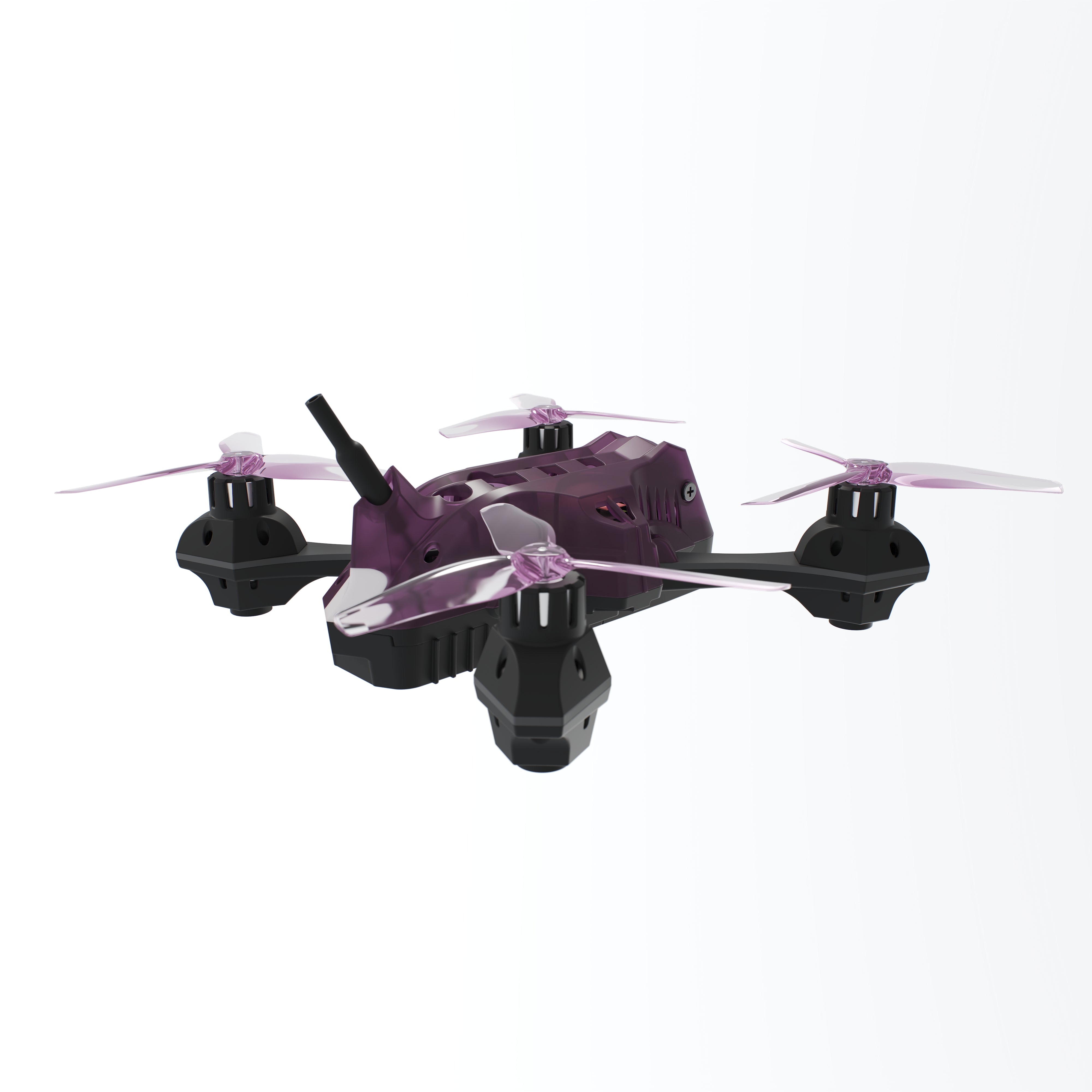

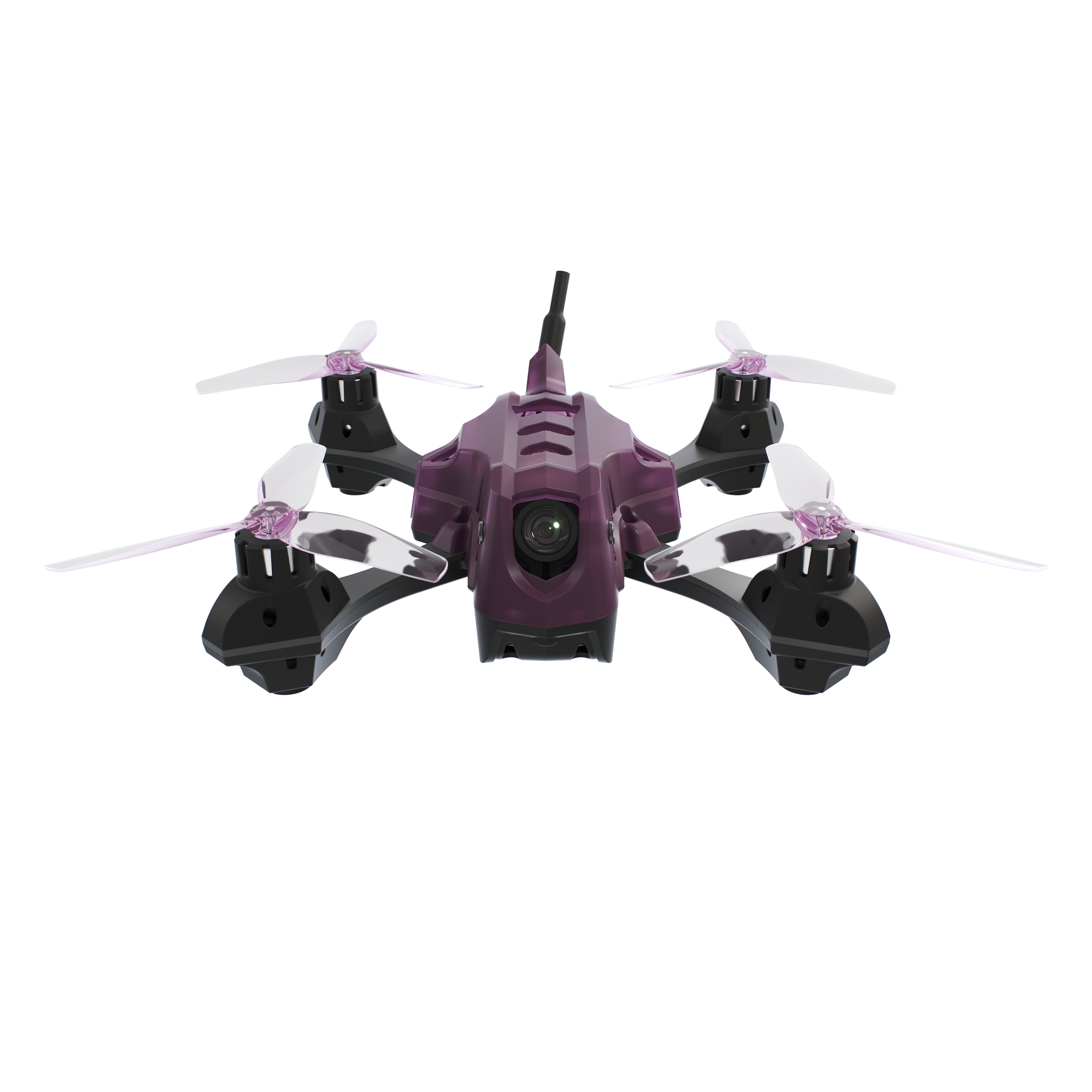

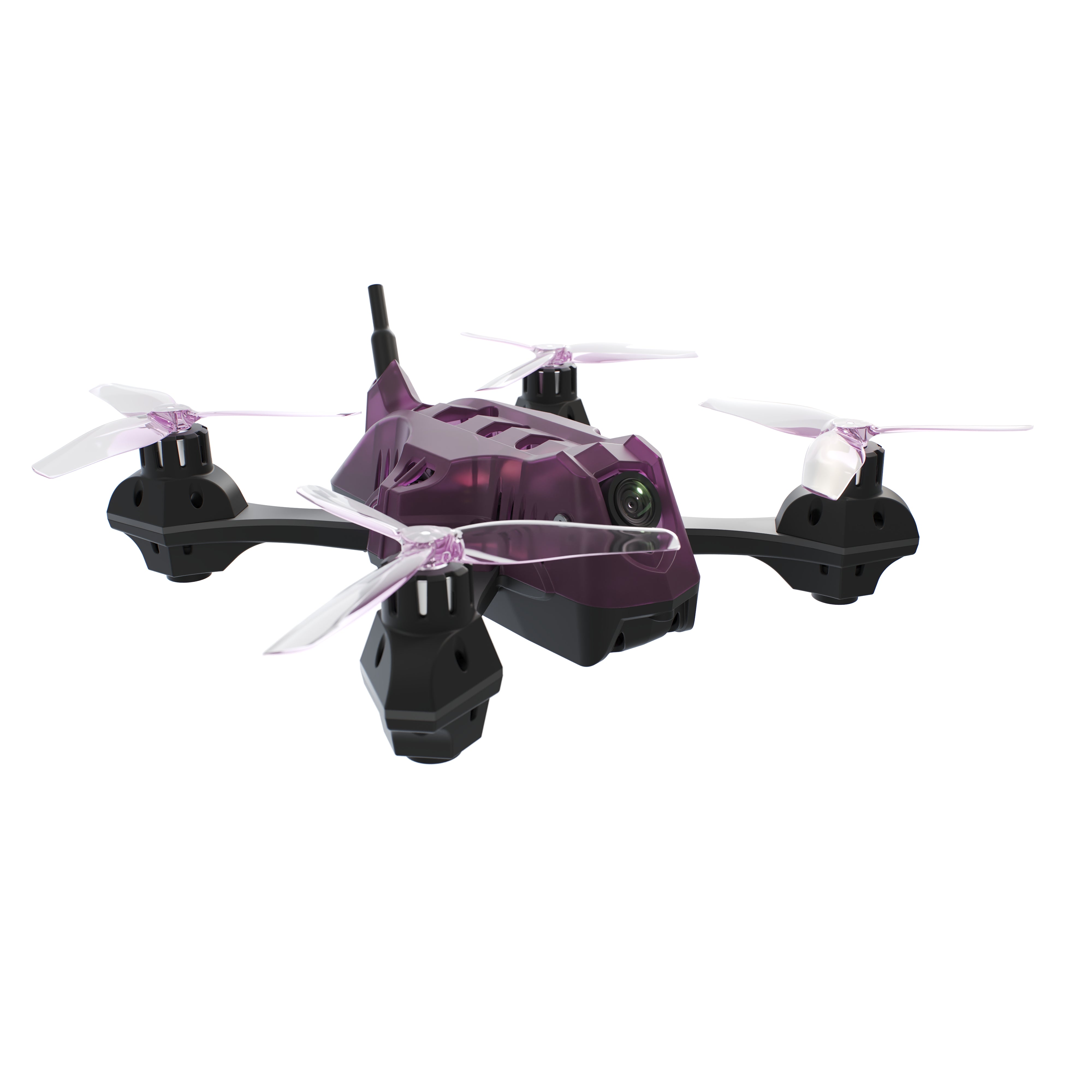

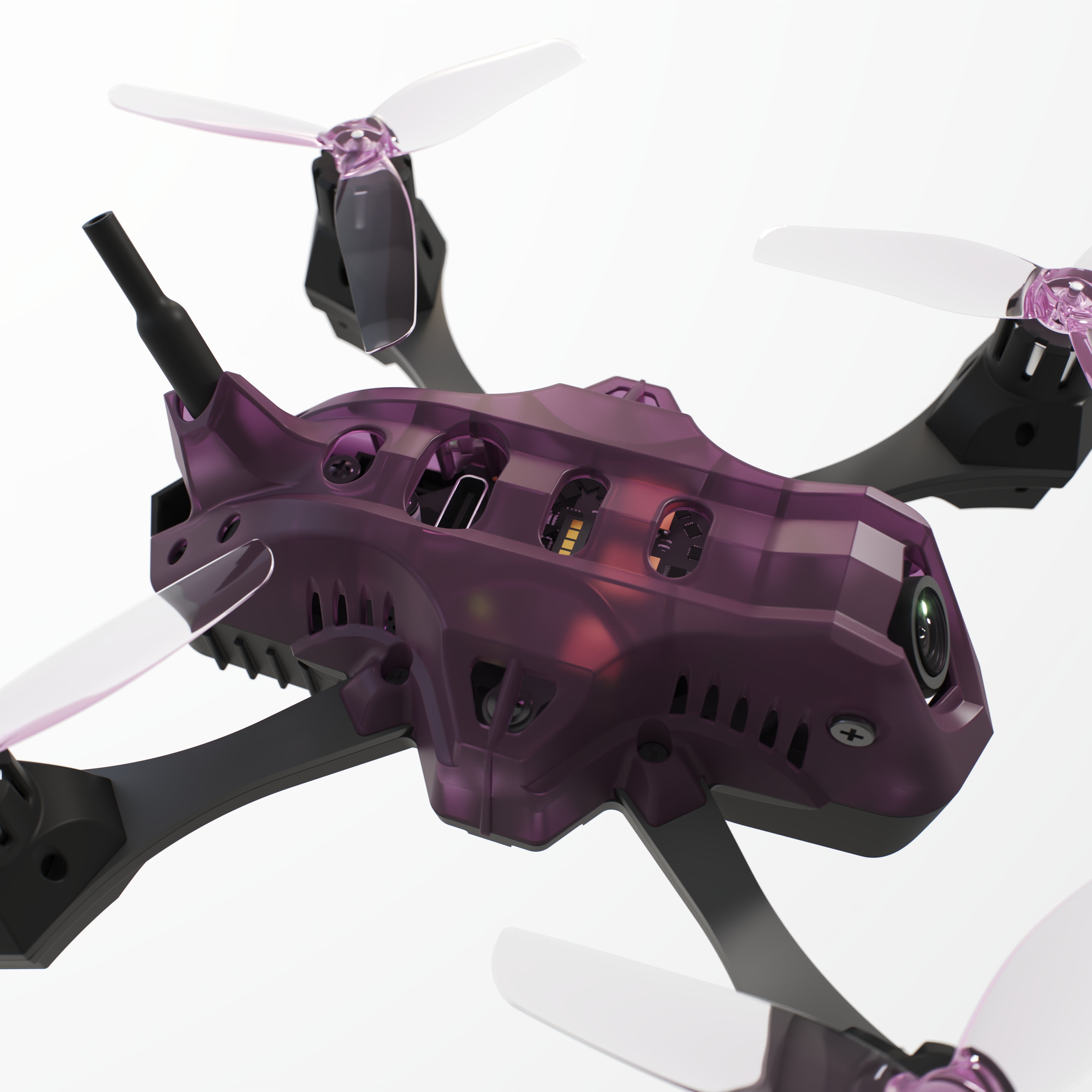

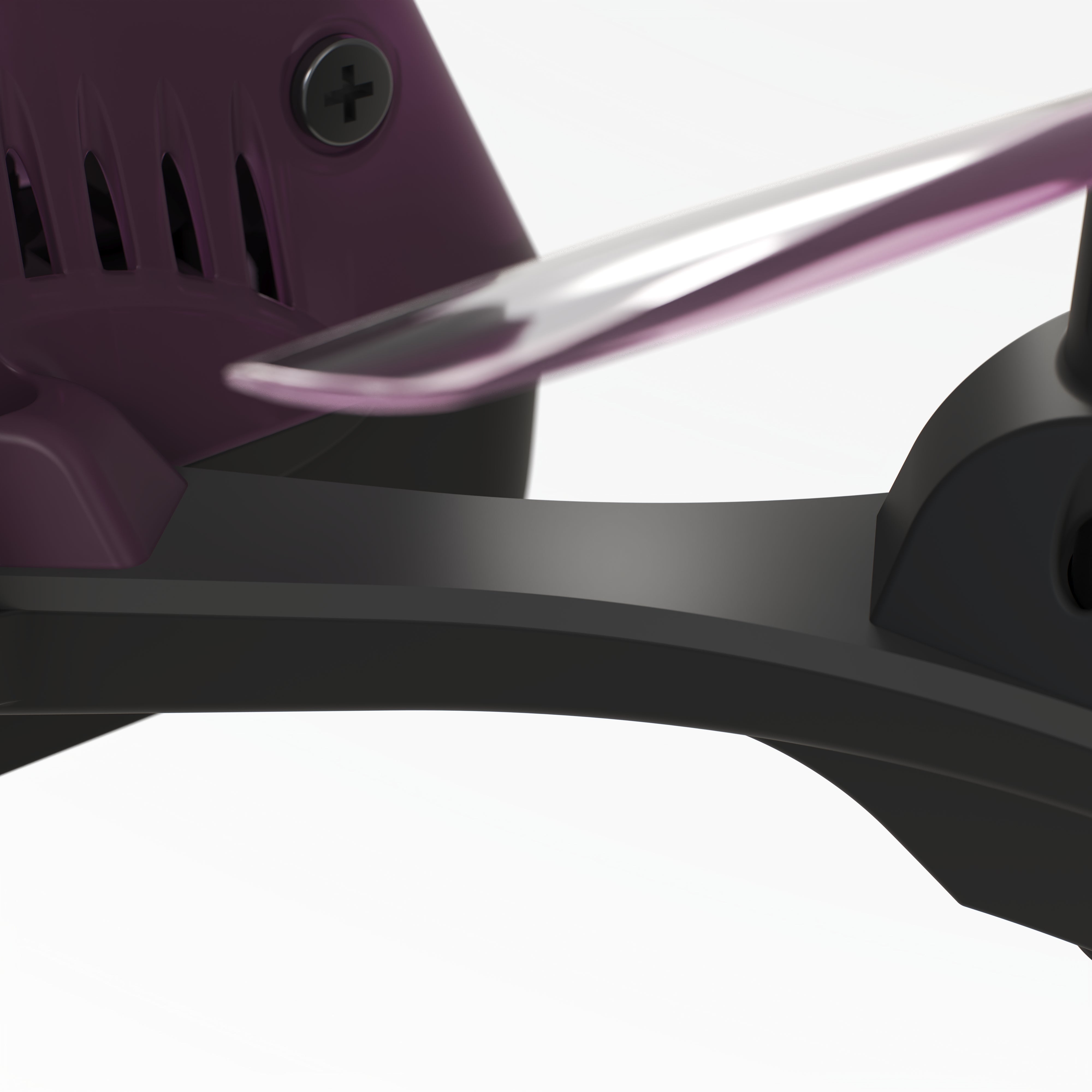

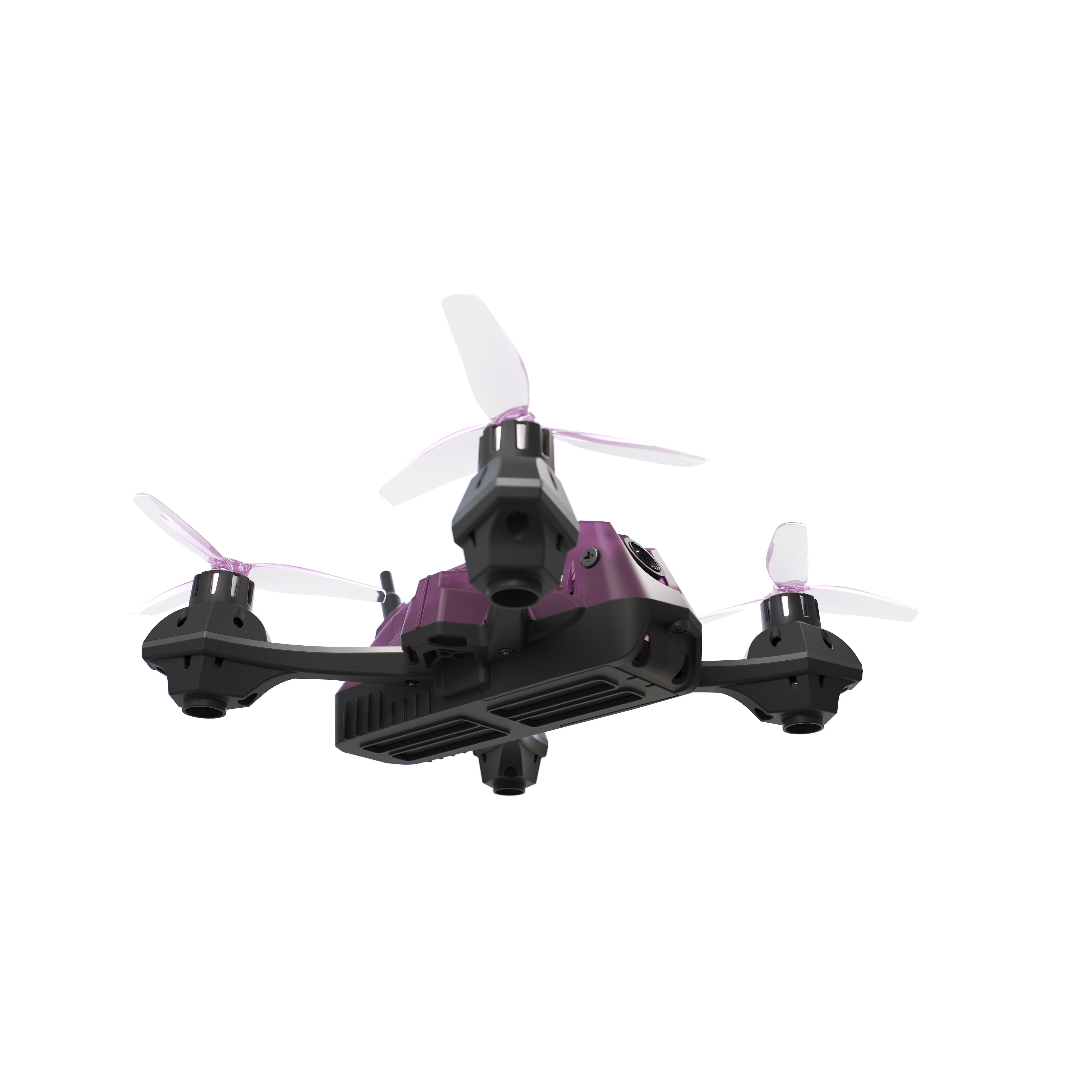

EMAX Tinyhawk Lite Adventure — BNF ExpressLRS 2.4GHz
The EMAX Tinyhawk Lite Adventure is a 115mm 1S micro FPV drone built for pilots who want to explore beyond the living room — light enough for indoor flying, capable enough for outdoor adventure. At ~59g without battery, it’s one of the lightest builds in the Tinyhawk lineup, powered by 1020 coreless motors and 65mm tri-blade props on a 1S HV 850mAh cell. The onboard ELRS 2.4GHz receiver (SPI) delivers low-latency control, and the 32-bit 40CH VTX with 0/25/100/400mW switchable output gives you the flexibility to run low power indoors or push to 400mW for outdoor range. The E02 camera rounds out a complete, ready-to-fly FPV system in a package that fits in your pocket.
115mm 1S micro frame — ~59g, compact enough for indoor and outdoor adventure flying
Onboard ELRS 2.4GHz — low-latency SPI receiver, bind and fly with any ELRS transmitter
400mW switchable VTX — 0/25/100/400mW for indoor to outdoor range flexibility
STM32F411 FC — capable 1S flight controller for smooth, responsive flight
1S HV 850mAh battery — extended flight time for a 1S micro platform
BNF ready — bind to your ELRS 2.4GHz radio and fly
Indoor agility, outdoor capability — the Tinyhawk Lite Adventure is the 1S micro FPV drone built to go wherever you do.
