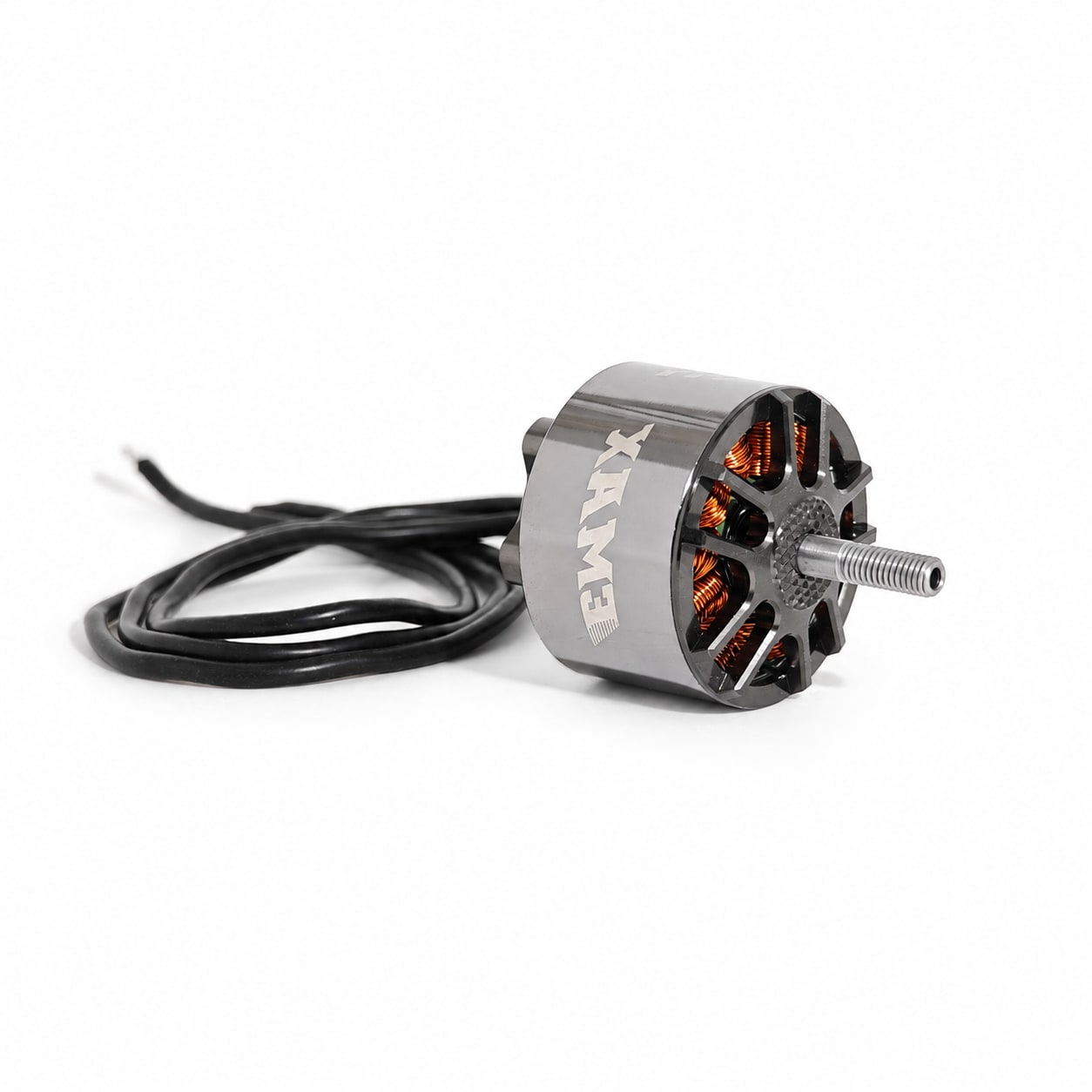

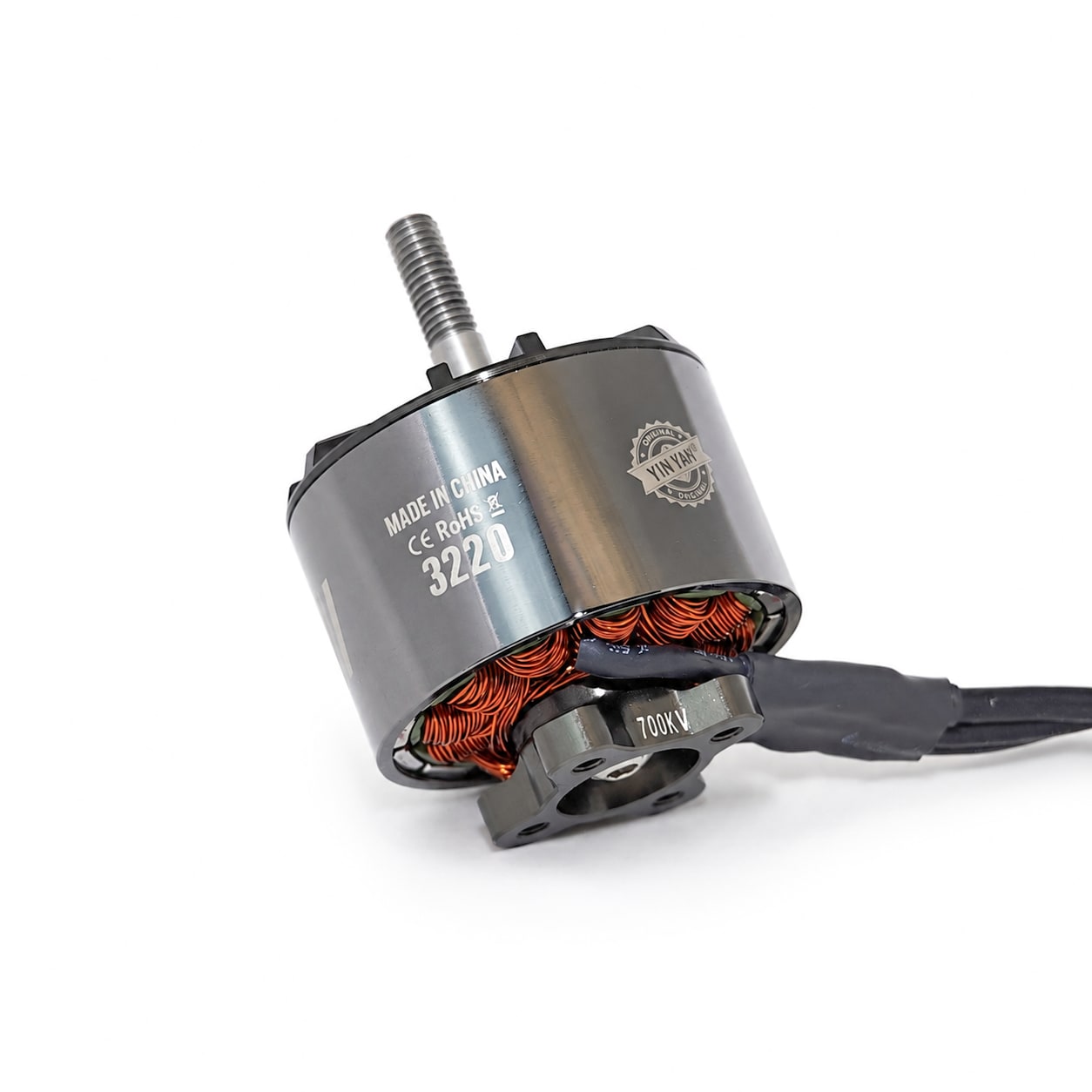

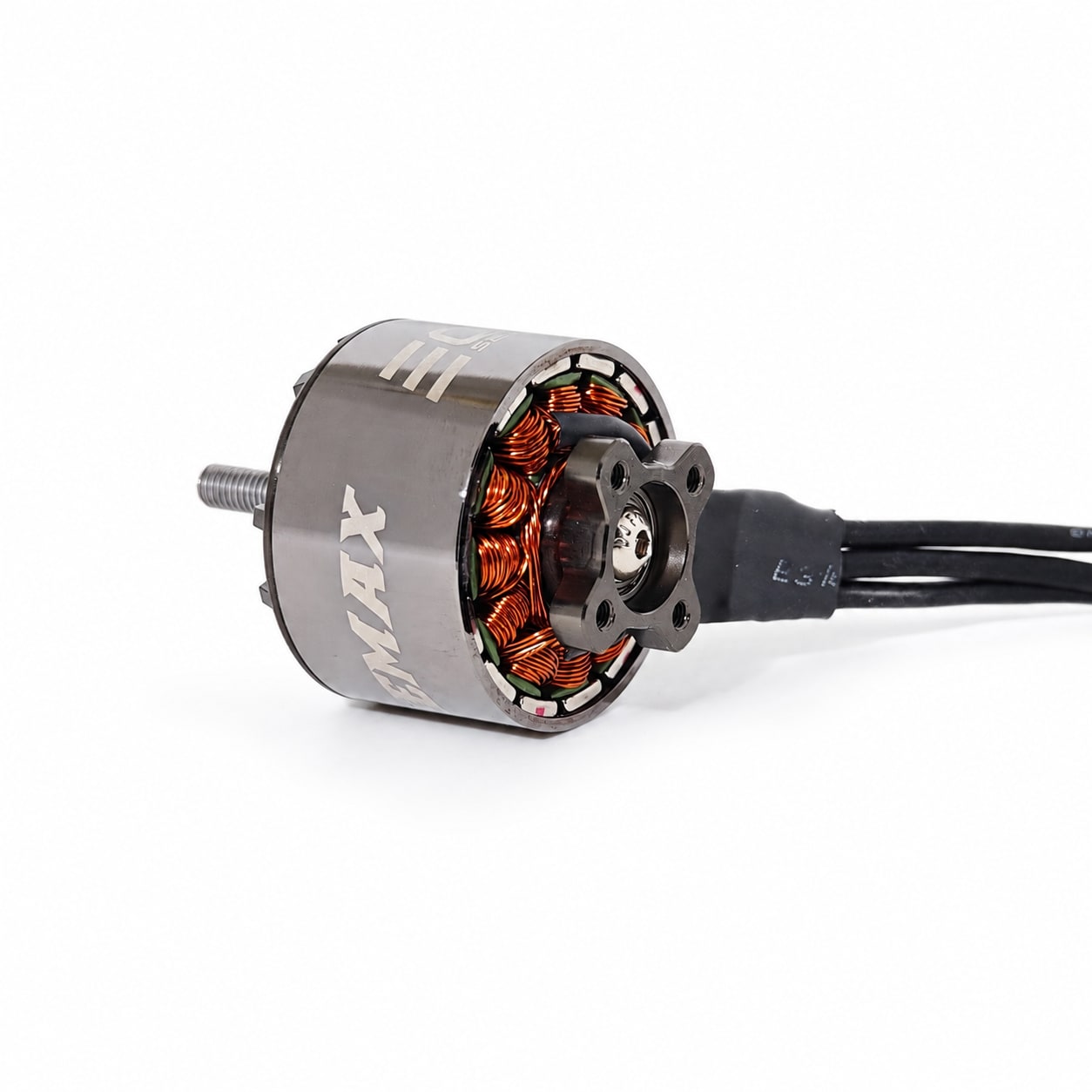

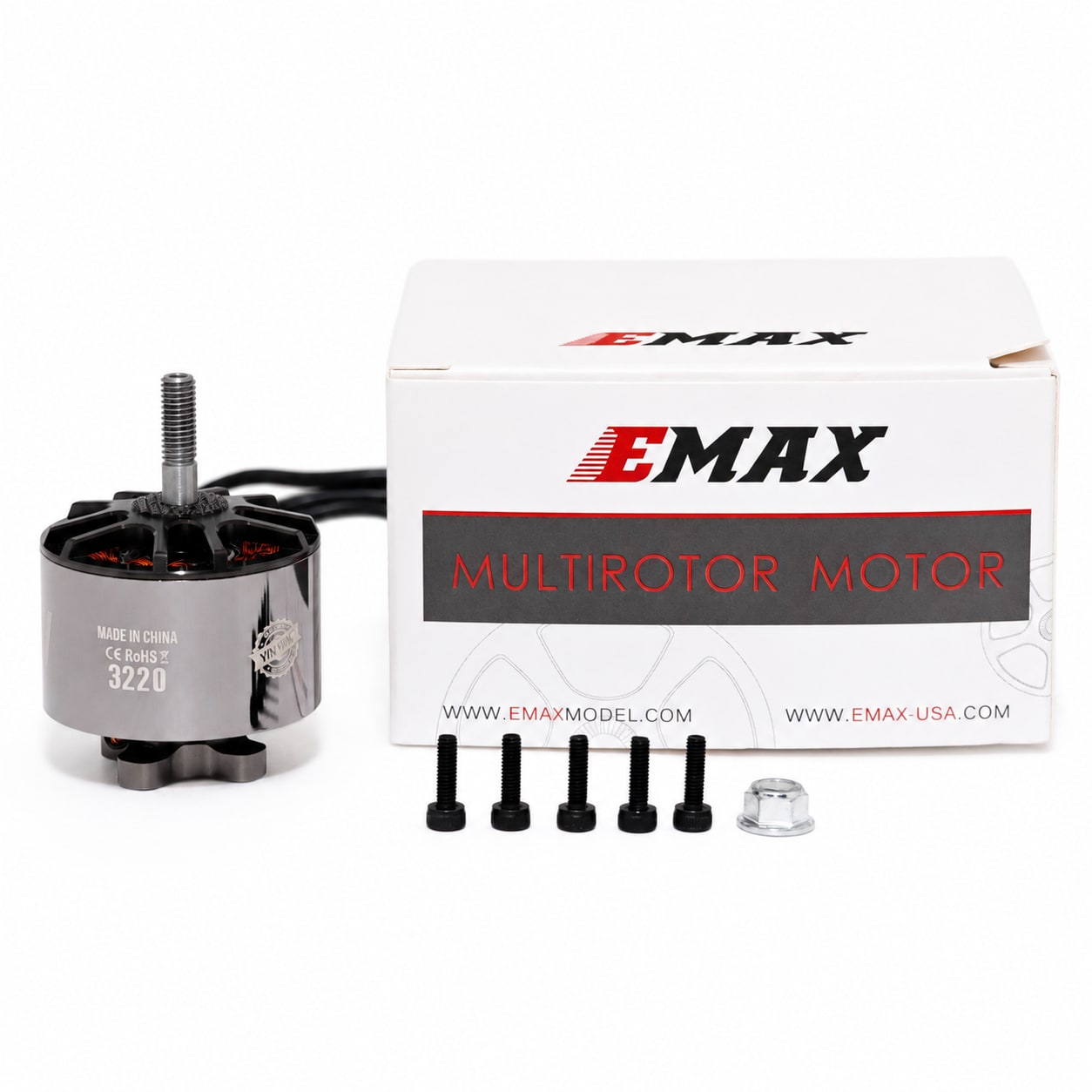

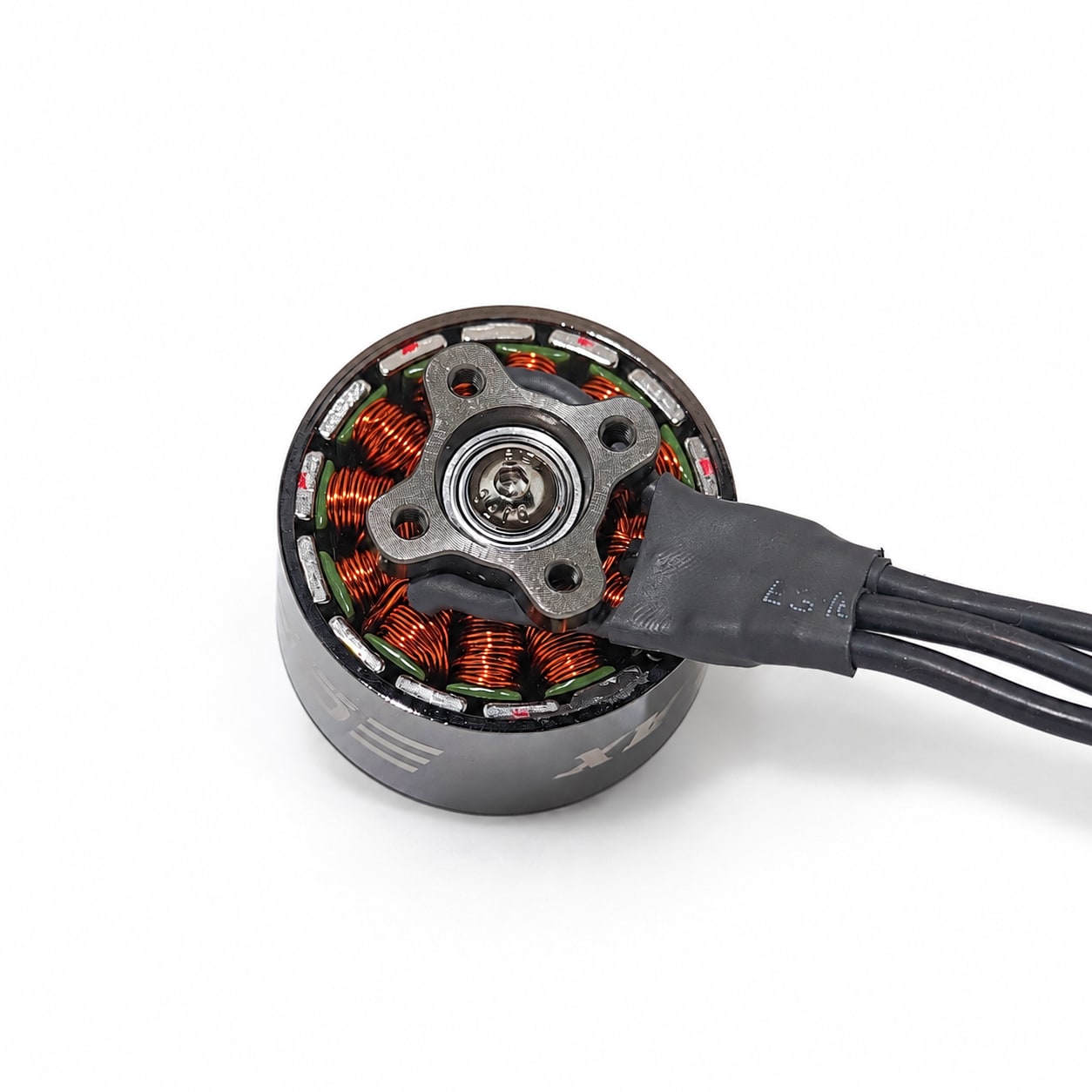

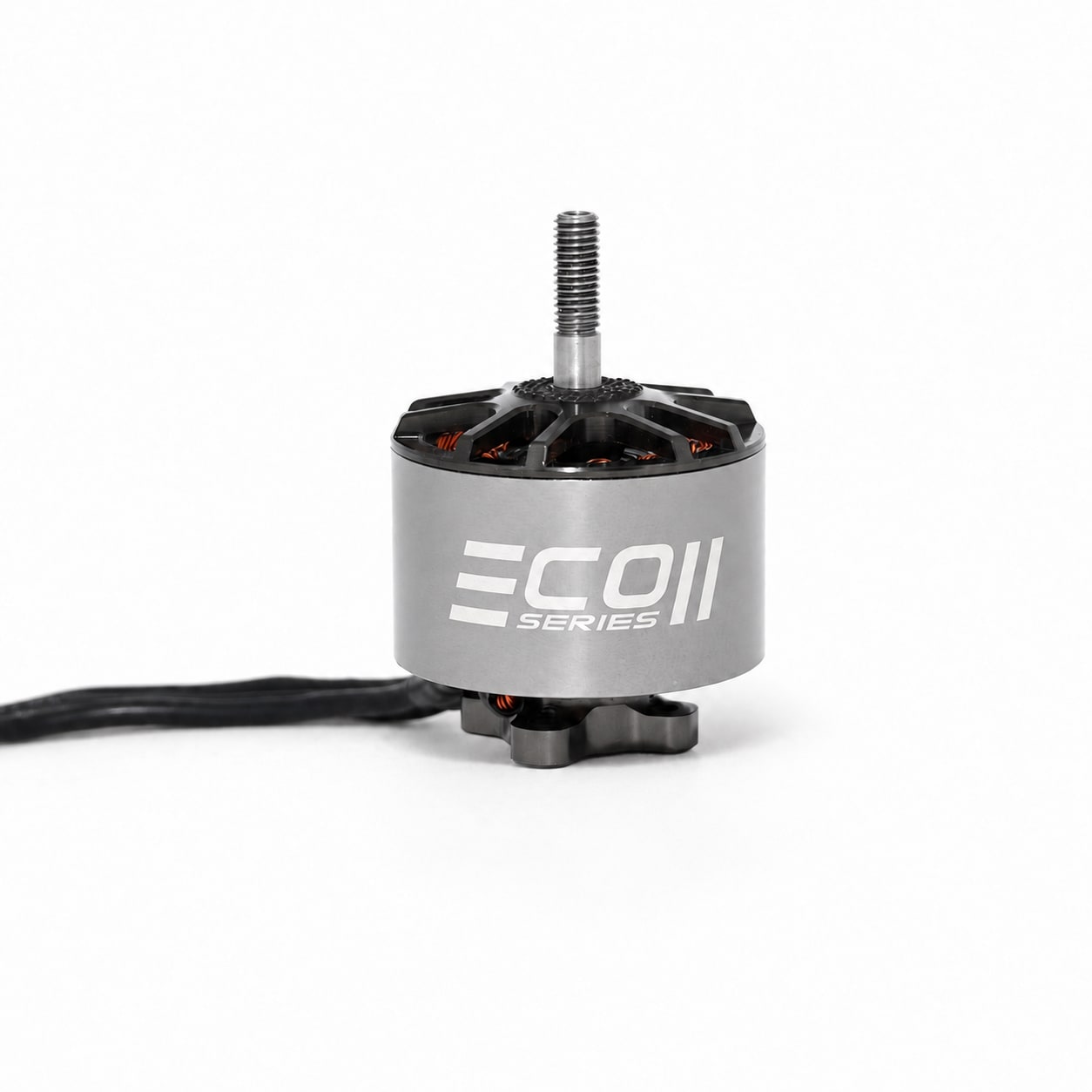

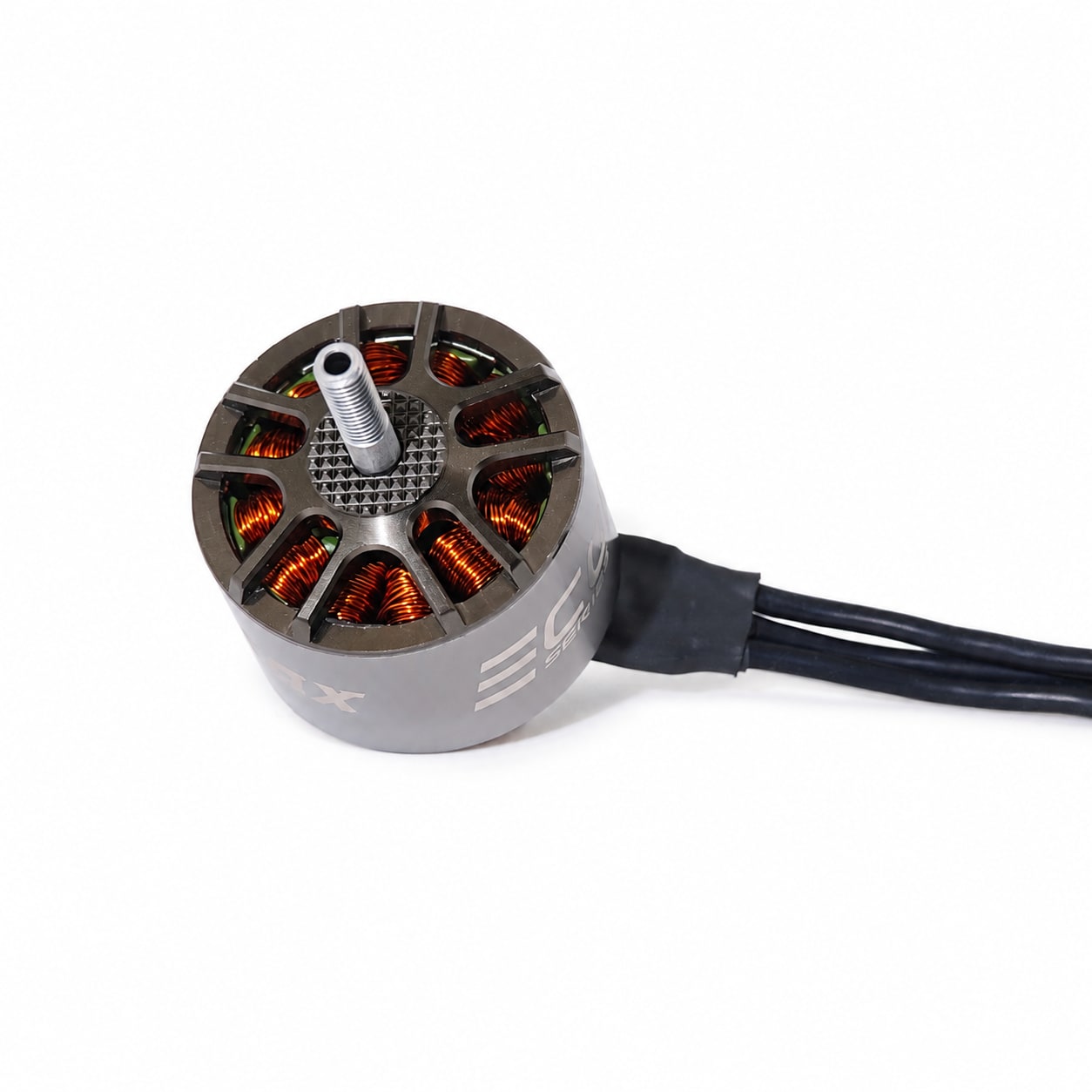

The EMAX ECO II 3220 is a high-power brushless motor engineered for FPV performance tuning on large-format builds. With a 12N14P framework, three precision bearings, a steel shaft, and multi-strand winding, the 3220 delivers stable high-load operation across 6S through 12S power systems. Three KV options cover 8 to 11 inch propellers, with verified load-test data across eleven propeller and voltage combinations so you can dial in exactly the power curve your build demands.
Key Features
12N14P framework with multi-strand winding for smooth, efficient power delivery
Three precision bearings and steel shaft for stable high-load operation
Three KV options (500KV / 700KV / 1000KV) covering 6S–12S power systems
Compatible with 8 to 11 inch propellers
Compact 39.1 mm diameter body with 19 × 19 mm four-hole M3 mounting pattern
270 mm 16 AWG silicone leads for flexible installation
