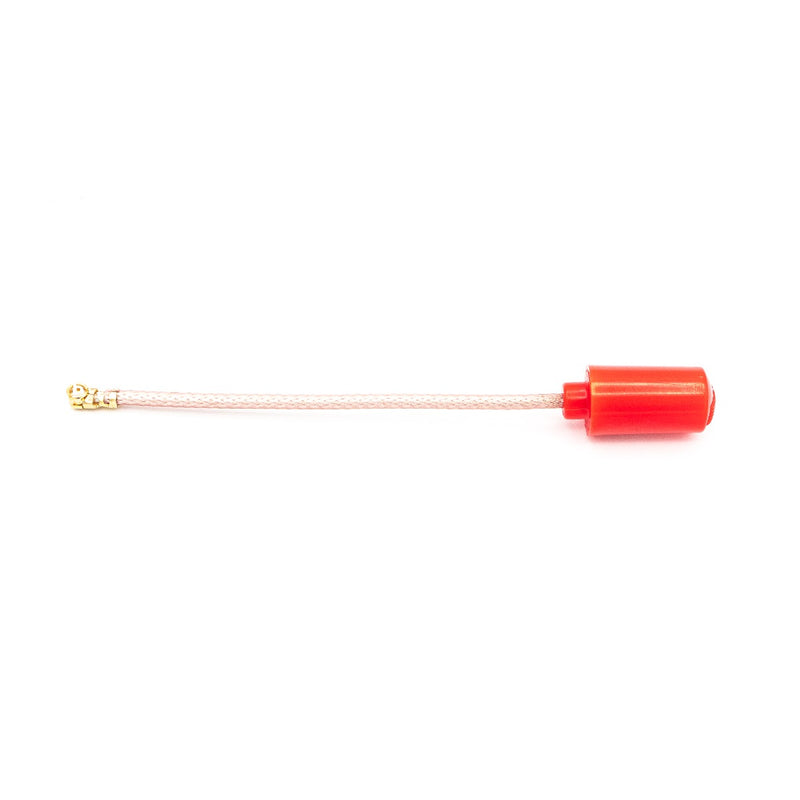

The EMAX Nano 5.8GHz RHCP antenna is a featherlight, high-performance VTX antenna built for micro and mini FPV builds where every gram counts. At just 1.2g and 50mm in length, it adds virtually no weight or drag to your quad while delivering 3.0 dBi gain and a clean VSWR of ≤1.5:1 across the 5650–5950 MHz FPV band. The UFL connector makes it a direct fit for most compact VTX modules used in micro and 3–5 inch builds. RHCP polarization pairs perfectly with RHCP goggles and receiver antennas for maximum signal clarity.
5.8GHz RHCP circular polarization — pairs with RHCP goggles and receivers for clean, multipath-resistant video
3.0 dBi gain — strong signal output for reliable FPV video at range
VSWR ≤1.5:1 — efficient power transfer with minimal signal reflection

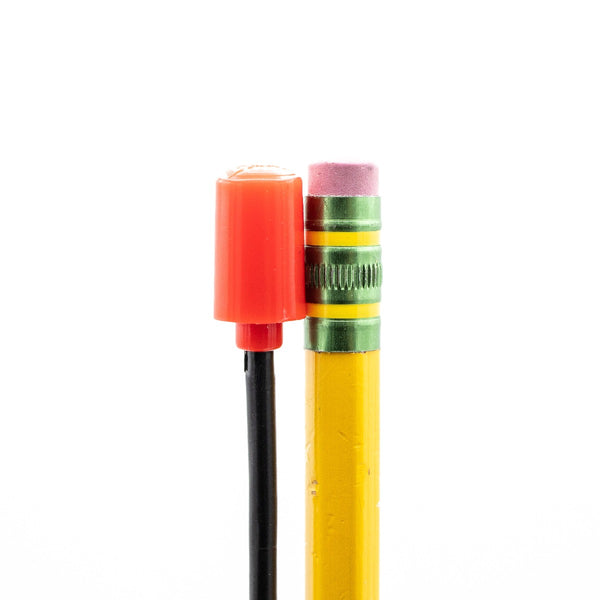

1.2g / 50mm — ultra-lightweight for micro and mini FPV builds
5650–5950 MHz frequency range — covers all standard FPV video channels
UFL connector — direct fit for most compact VTX modules on micro and 3–5 inch quads
Red color — easy visual identification on your build
The go-to nano antenna for micro FPV builds that need reliable 5.8GHz video without the weight penalty. Compatible with any UFL-equipped VTX running RHCP polarization.
