E3 Series 2807 Brushless Motor - CHOOSE KV
E3 Series 2807 Brushless Motor - CHOOSE KV
Product Code: ECO328071500
Availability:In stock
$19.99
| Specifications | ||||
| Testltem | KV1300 | Idle Current（10V） | 1.4A | |
| Motor Dimensions | φ34.8*34.9mm | Internal Resistance | 60mΩ | |
| Framework | 12N14P | No.of cells | 3-6S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 200mm | Peak Current（6S） | 55A | |
| Weight | 49.6g(W/O Silicone Wire) | Max.Power（6S） | 1390W | |
| Testltem | KV1500 | Idle Current（10V） | 1.8A | |
| Motor Dimensions | φ34.8*34.9mm | Internal Resistance | 50mΩ | |
| Framework | 12N14P | No.of cells | 3-6S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 200mm | Peak Current（6S） | 63A | |
| Weight | 49.6g(W/O Silicone Wire) | Max.Power（6S） | 1590W | |
| Testltem | KV1700 | Idle Current（10V） | 2.1A | |
| Motor Dimensions | φ34.8*34.9mm | Internal Resistance | 40mΩ | |
| Framework | 12N14P | No.of cells | 3-4S | |
| Bearing Shaft | 5mm | Propeller | 6"-7" | |
| Lead | 18#AWG 200mm | Peak Current（4S） | 54A | |
| Weight | 49.6g(W/O Silicone Wire) | Max.Power（4S） | 907W | |

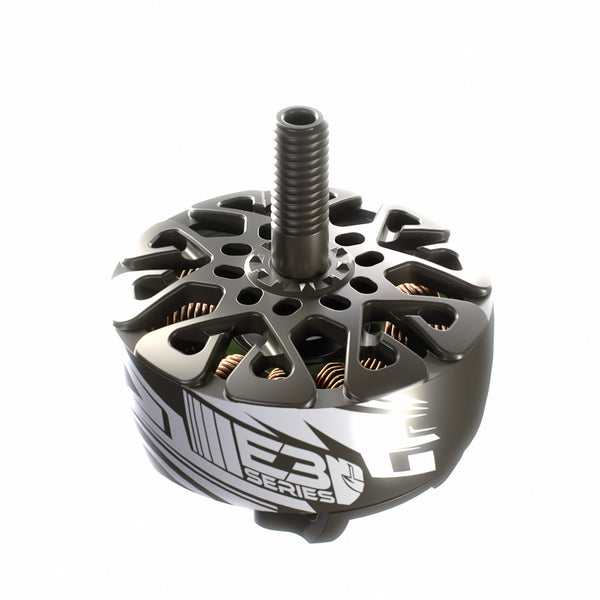

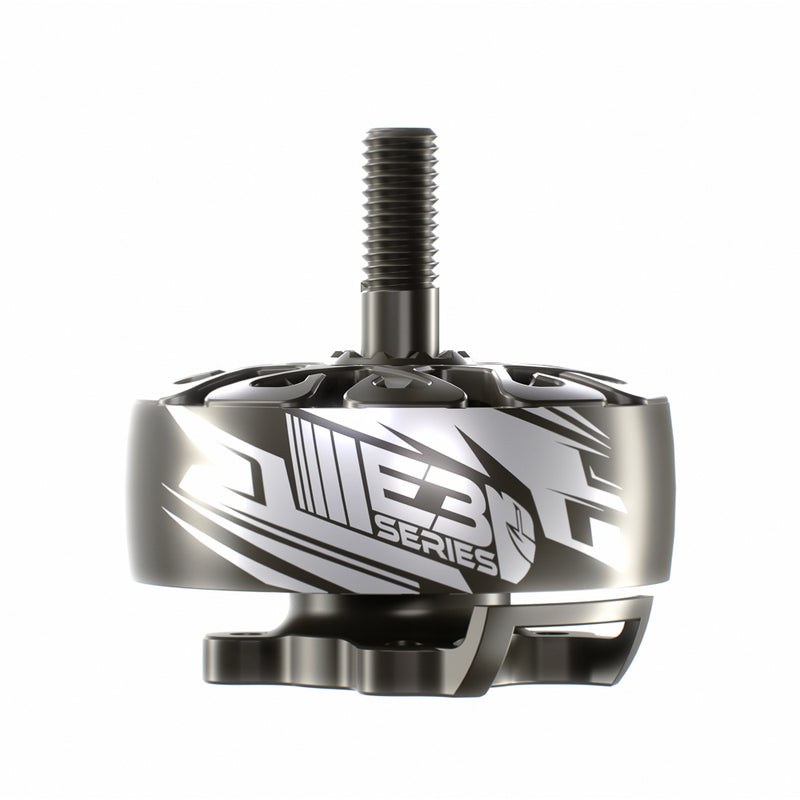

EMAX E3 Series 2807 Brushless Motor — 1300KV / 1500KV / 1700KV
The EMAX E3 Series 2807 is a versatile 28mm brushless motor built for 6"–7" FPV platforms across long-range, heavy-lift, and freestyle applications. The 12N14P stator and 5mm shaft deliver strong low-end torque for larger props, while the three KV options let you dial in the right RPM range for your battery and build. The 1300KV and 1500KV variants run 3–6S for maximum efficiency and power, pushing up to 1390W and 1590W respectively. The 1700KV is optimized for 3–4S builds where higher RPM on smaller battery packs is the priority. All three share the same 49.6g frame weight and 18AWG 200mm leads — ready to drop into your build.
- 2807 stator, 12N14P — high-torque configuration for 6"–7" props
- Three KV options — 1300KV (3–6S, 1390W), 1500KV (3–6S, 1590W), 1700KV (3–4S, 907W)
- 5mm bearing shaft — robust shaft for larger prop loads
- 49.6g weight — consistent across all KV variants
- 18AWG 200mm leads — ready to wire directly into your build
- 34.8 x 34.9mm dimensions — compact footprint for a 28mm-class motor
Choose your KV, match your battery, and put reliable E3 Series power behind your next 6"–7" build.
