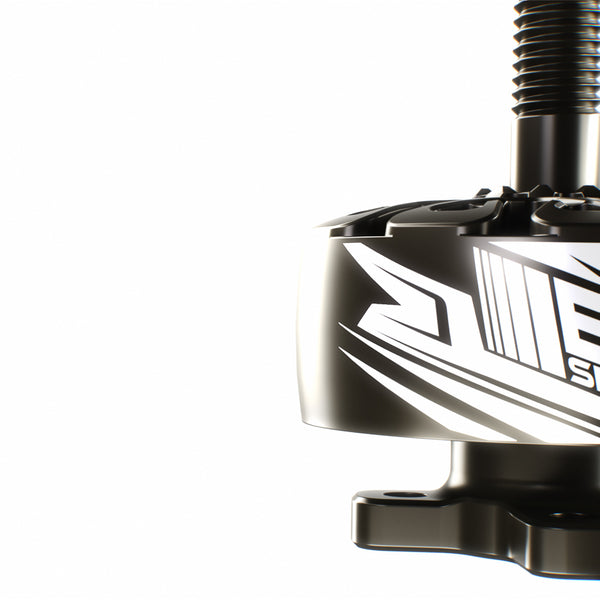

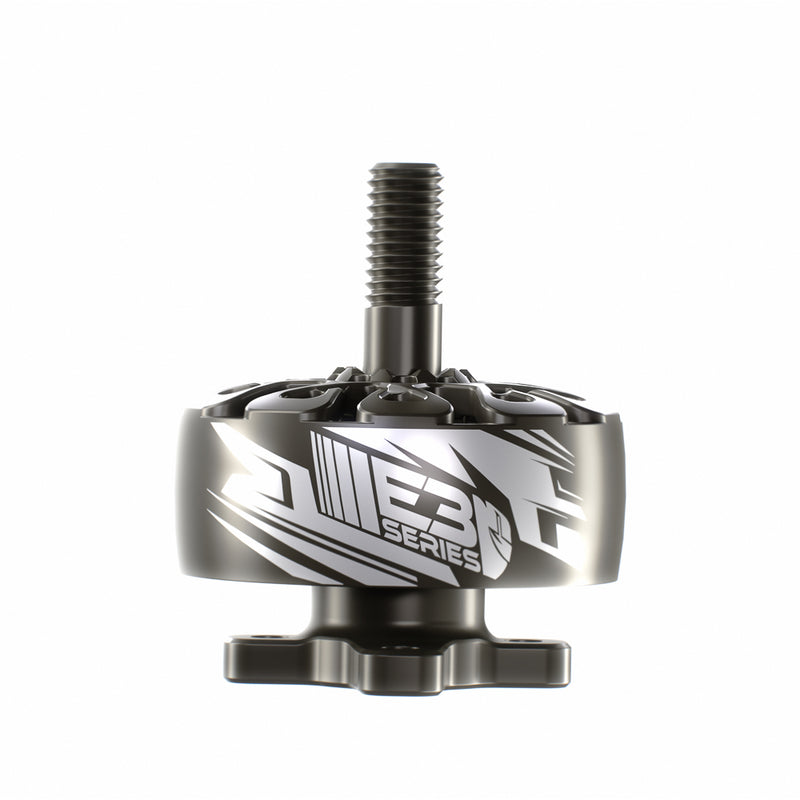

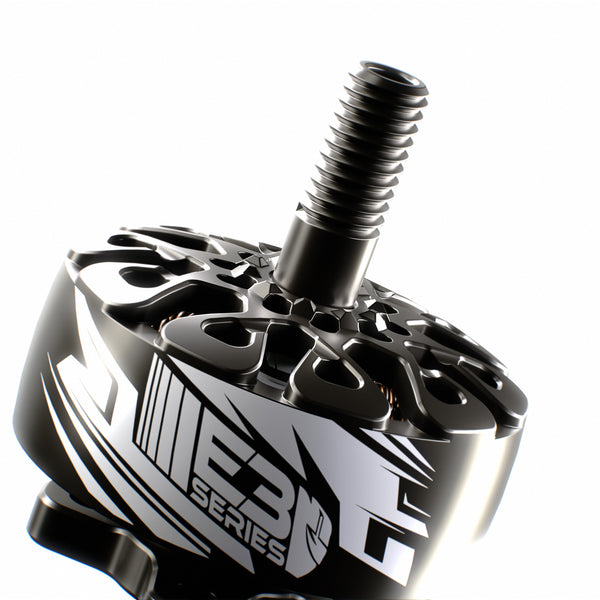

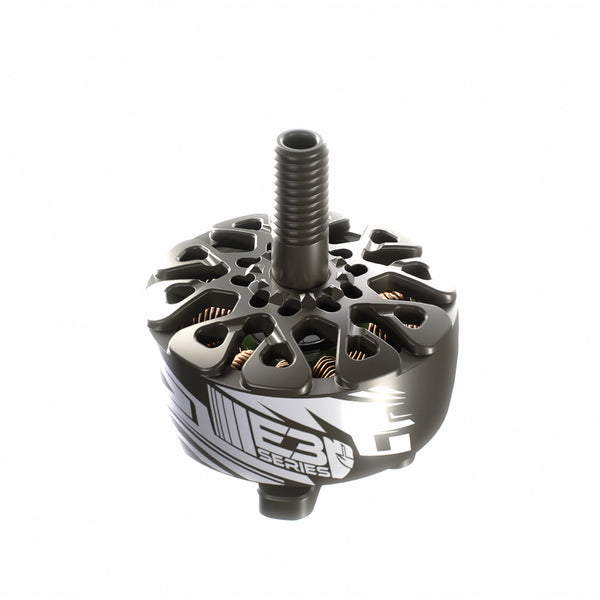

EMAX E3 Series 2207 Brushless Motor — 1700KV / 1900KV / 2100KV / 2400KV
The EMAX E3 Series 2207 is a 5" FPV motor built for freestyle and racing on 3–6S. The 12N14P stator in a 28.6mm diameter keeps weight around 31–32g while delivering the torque and RPM range that 5" props demand. Four KV options cover the full spectrum: 1700KV and 1900KV for 6S efficiency builds, 2100KV as the all-around 5" freestyle sweet spot, and 2400KV for 3–4S setups where higher RPM on lower voltage is the goal. All variants share the same compact 28.6 x 32.8mm frame, 4mm shaft, and 20AWG 120mm leads — ready to bolt on and fly.

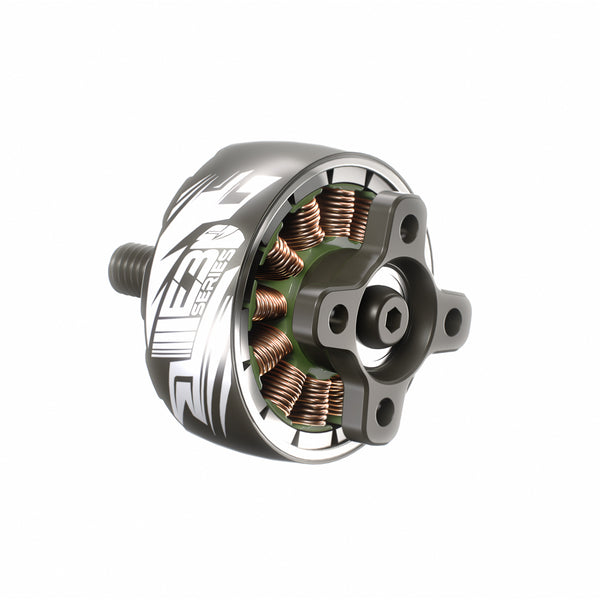

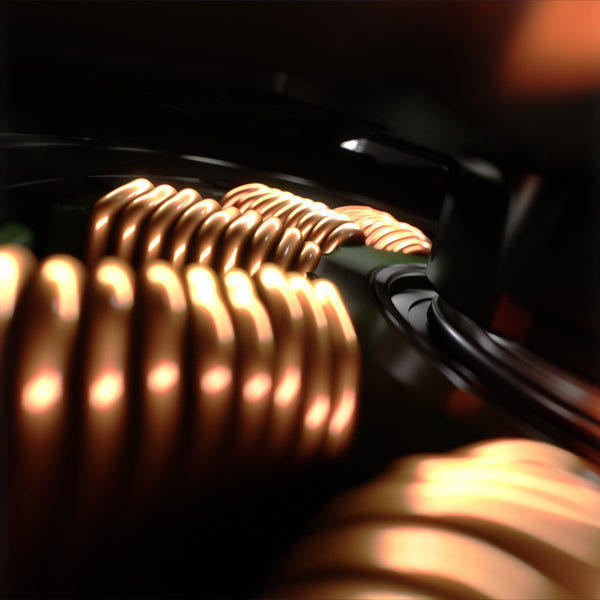

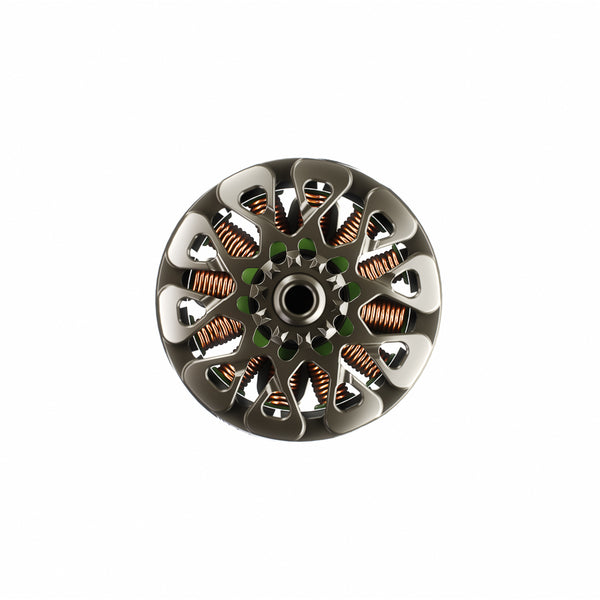

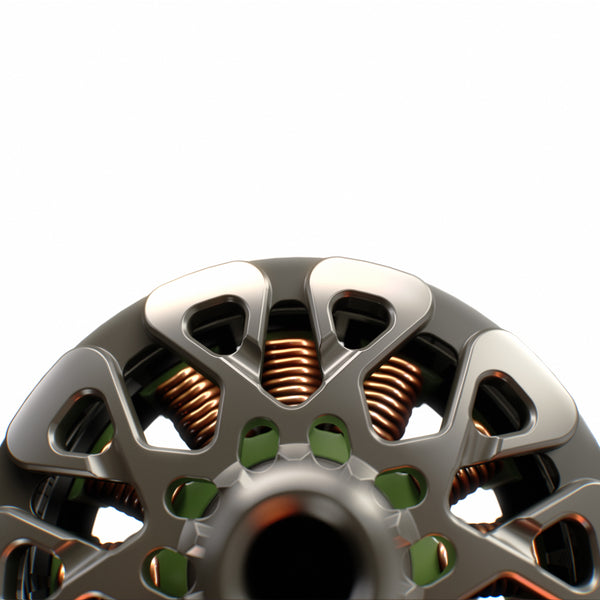

2207 stator, 12N14P — proven 5" FPV motor configuration for freestyle and racing
Four KV options — 1700KV, 1900KV, 2100KV (3–6S), 2400KV (3–4S) to match your battery and build
Up to 1260W max power — strong output for aggressive 5" freestyle flying
~31–32g weight — lightweight for a 2207-class motor
4mm bearing shaft — standard 5" prop shaft size
20AWG 120mm leads — pre-wired and ready to install
Pick your KV, match your battery, and put E3 Series power into your next 5" build.
