Specifications
Testltem	KV1600	Idle Current（10V）	1.2A
Motor Dimensions	φ28.6*32.8mm	Internal Resistance	85mΩ
Framework	12N14P	No.of cells	6-8S
Bearing Shaft	4mm	Propeller	5"-5.5"
Lead	20#AWG 120mm	Peak Current（6S）	41A
Weight	31.8g(W/O Silicone Wire)	Max.Power（6S）	1310W

Testltem	KV1700	Idle Current（10V）	1.2A
Motor Dimensions	φ28.6*32.8mm	Internal Resistance	74mΩ
Framework	12N14P	No.of cells	3-6S
Bearing Shaft	4mm	Propeller	5"-5.5"
Lead	20#AWG 120mm	Peak Current（6S）	42A
Weight	31.9g(W/O Silicone Wire)	Max.Power（6S）	1050W

Testltem	KV1900	Idle Current（10V）	1.5A
Motor Dimensions	φ28.6*32.8mm	Internal Resistance	64mΩ
Framework	12N14P	No.of cells	3-6S
Bearing Shaft	4mm	Propeller	5"
Lead	20#AWG 120mm	Peak Current（6S）	50A
Weight	31.6g(W/O Silicone Wire)	Max.Power（6S）	1260W

Testltem	KV2400	Idle Current（10V）	2.1A
Motor Dimensions	φ28.6*32.8mm	Internal Resistance	48mΩ
Framework	12N14P	No.of cells	3-4S
Bearing Shaft	4mm	Propeller	5"-5.5"
Lead	20#AWG 120mm	Peak Current（4S）	45A
Weight	31.5g(W/O Silicone Wire)	Max.Power（4S）	750W

EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.

If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.

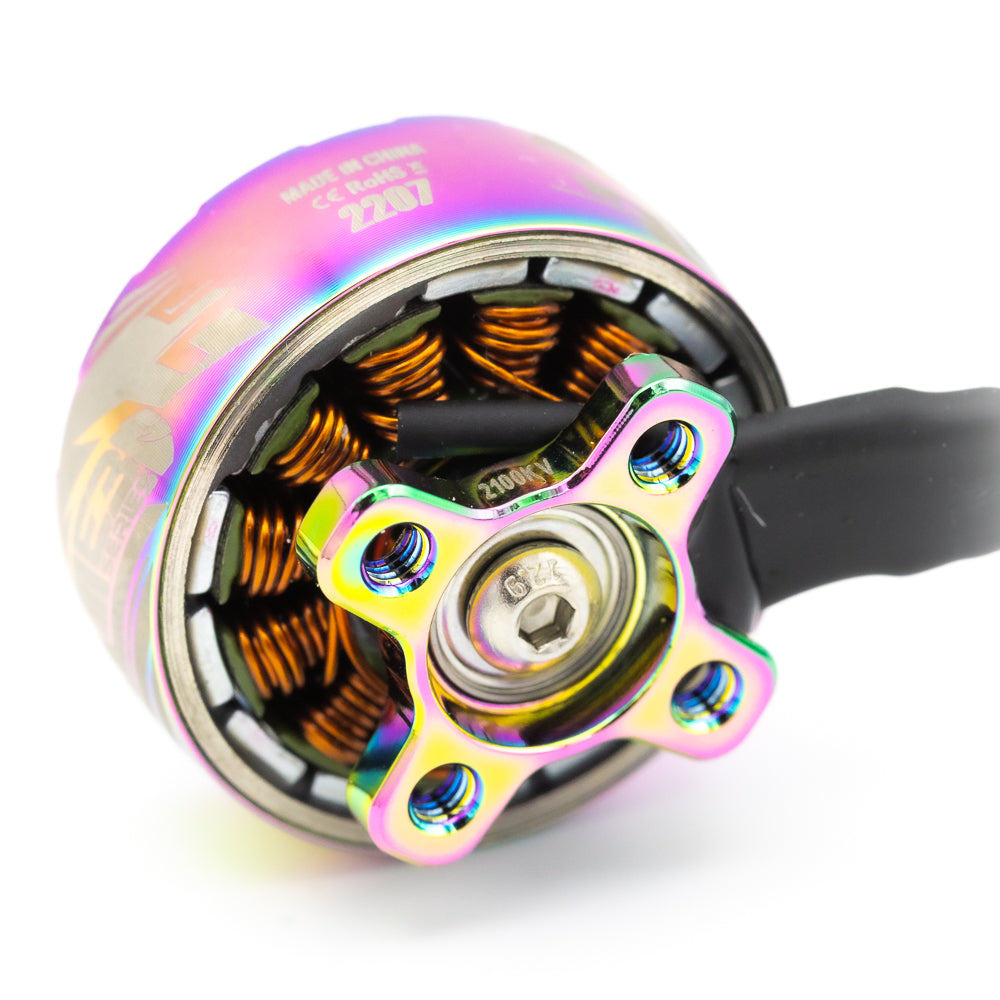

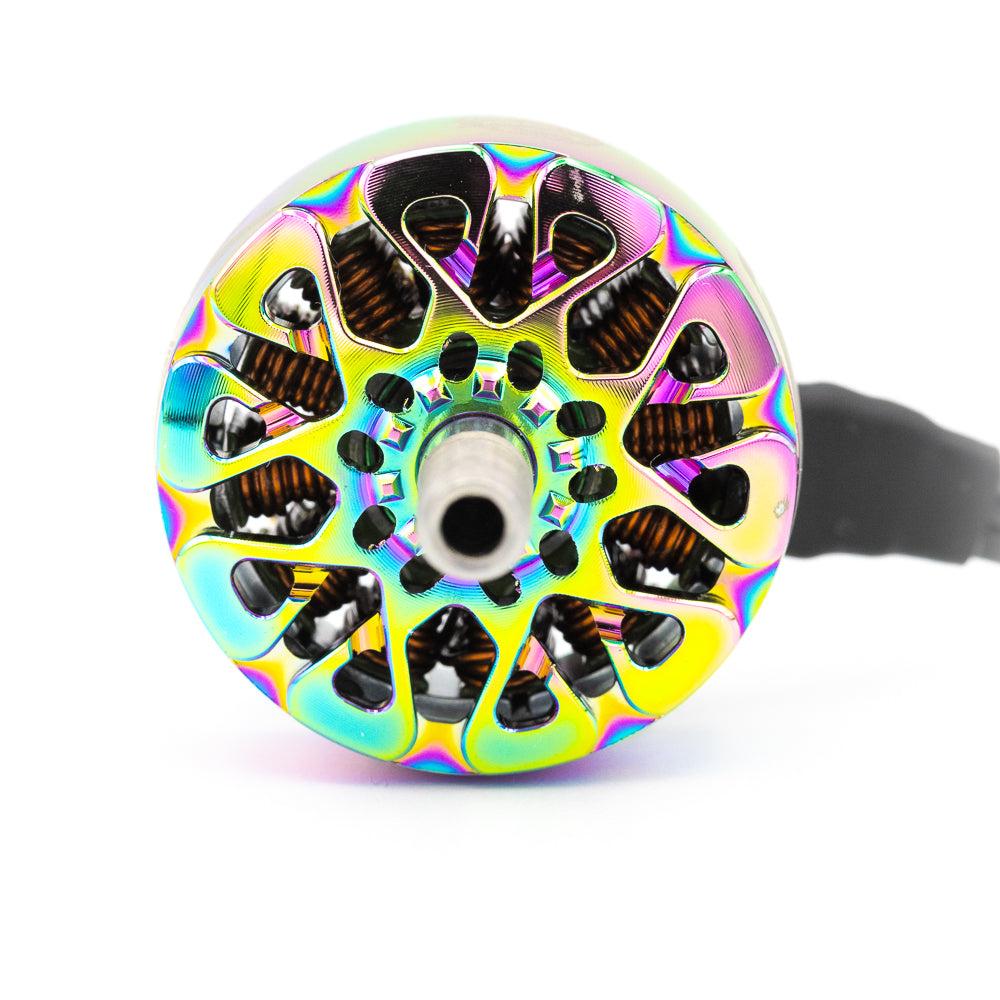

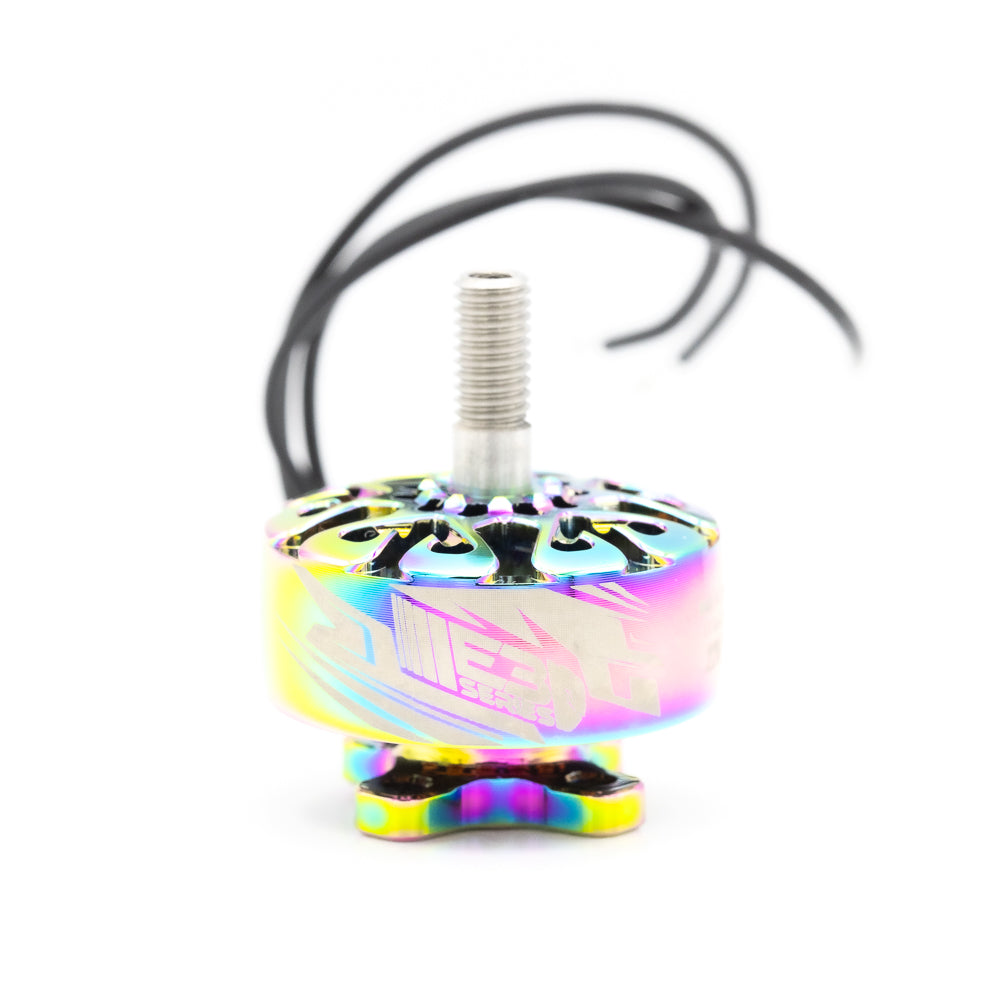

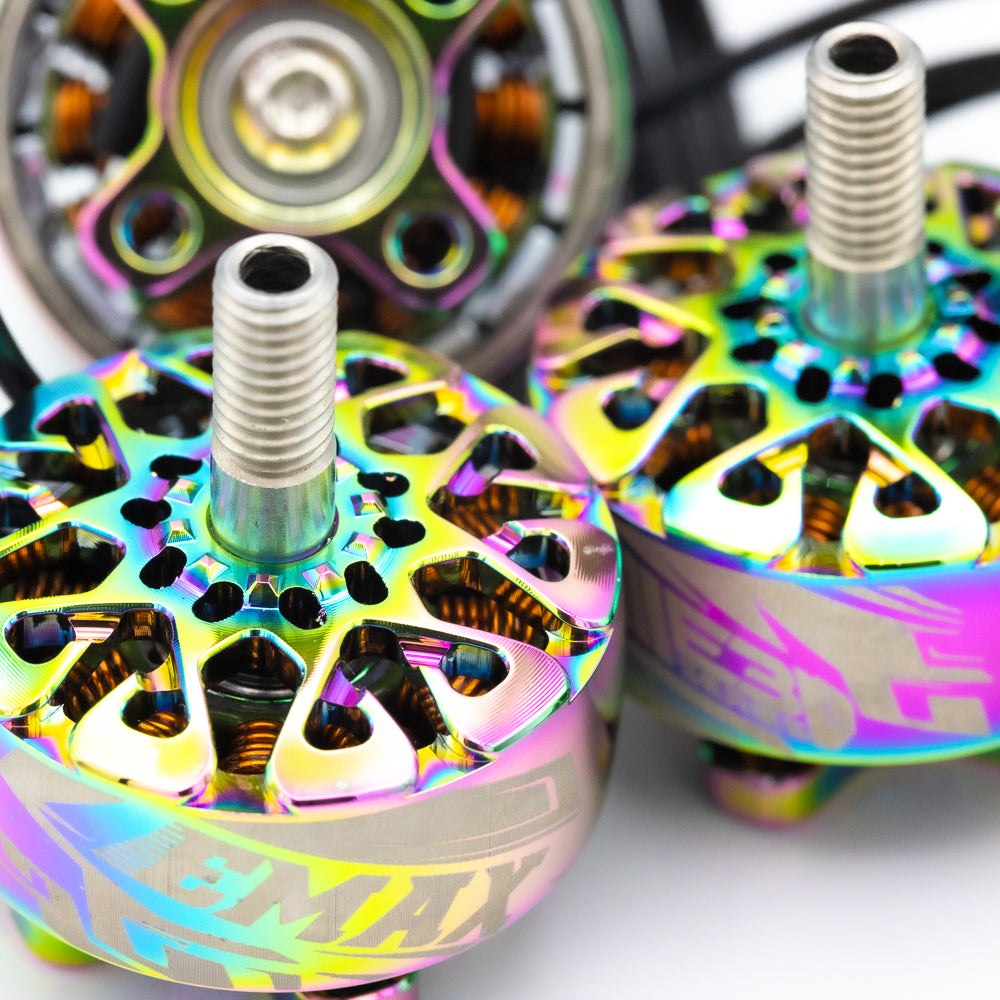

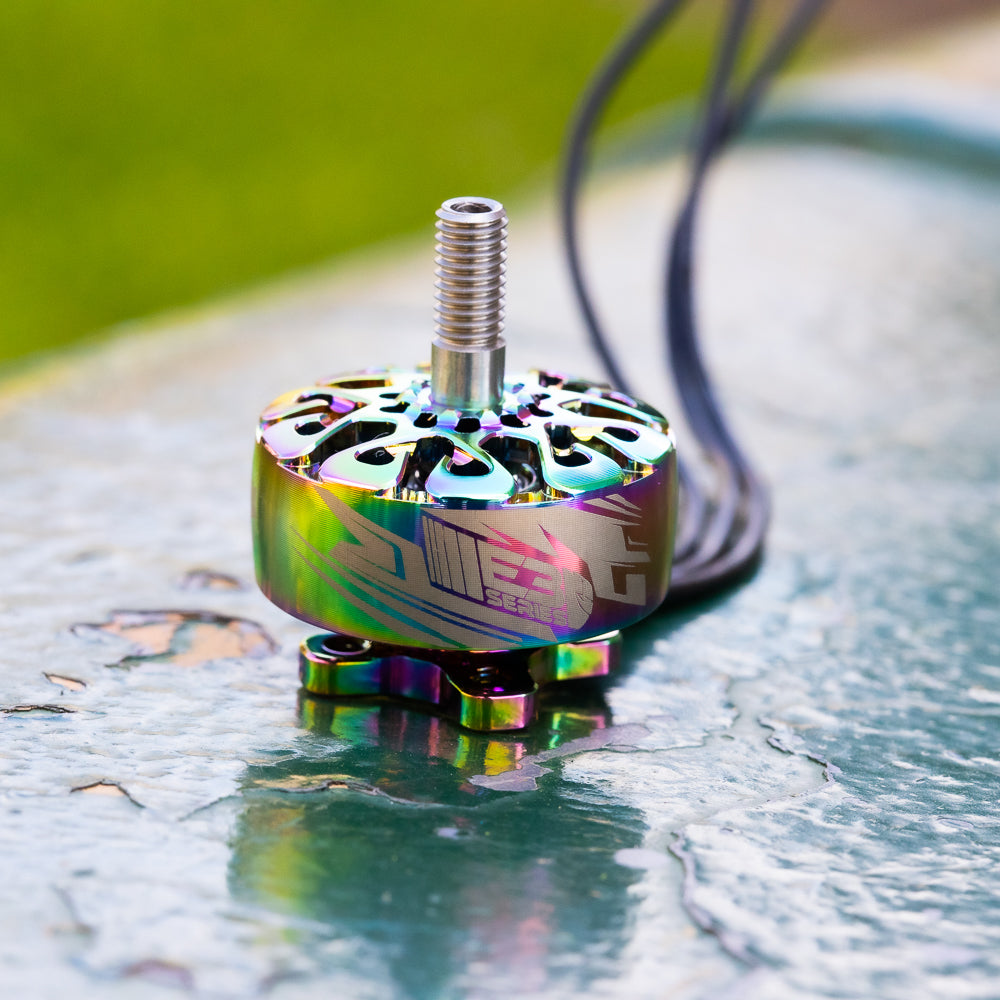

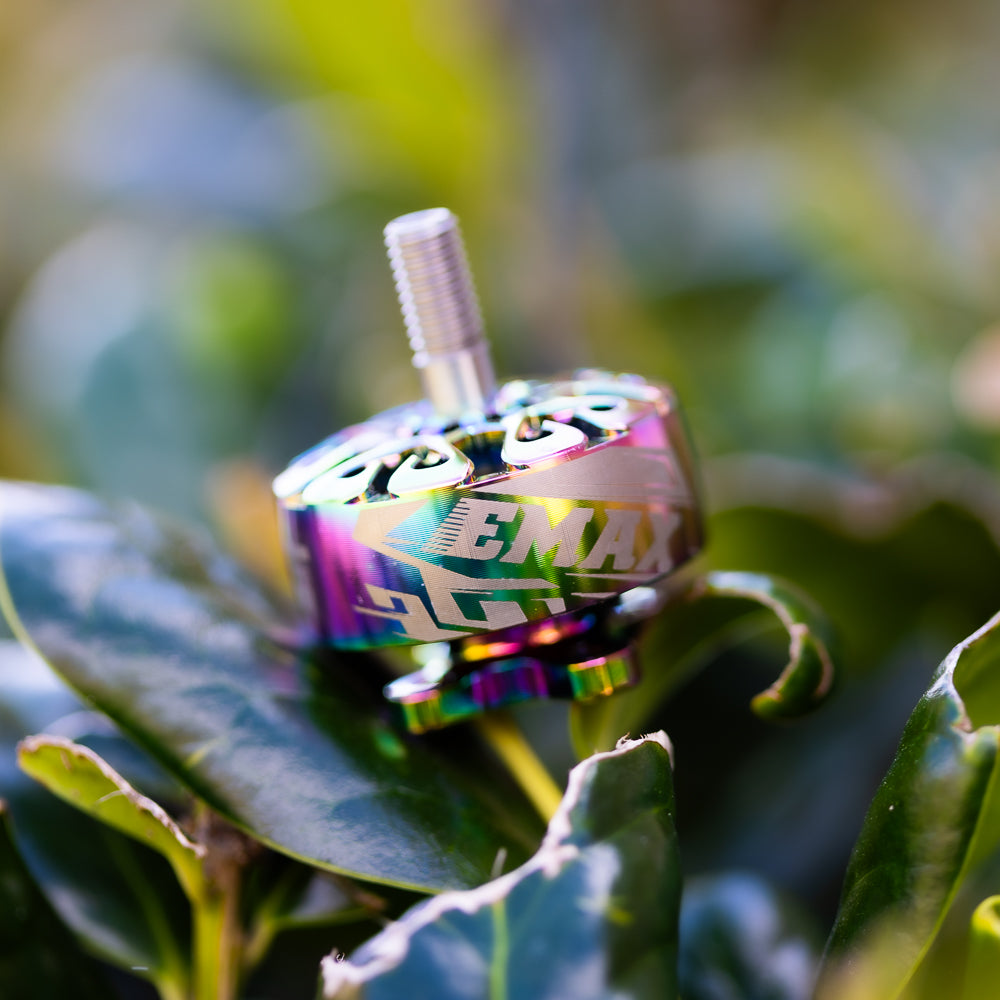

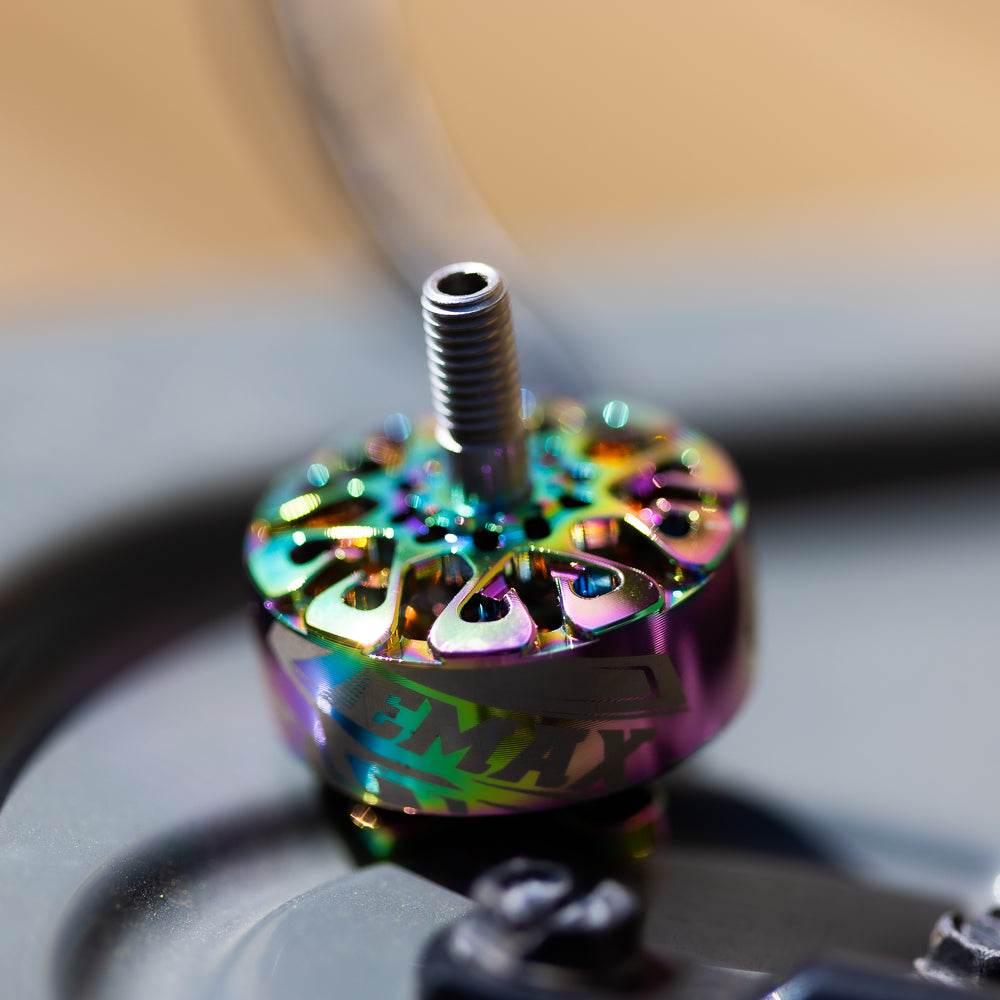

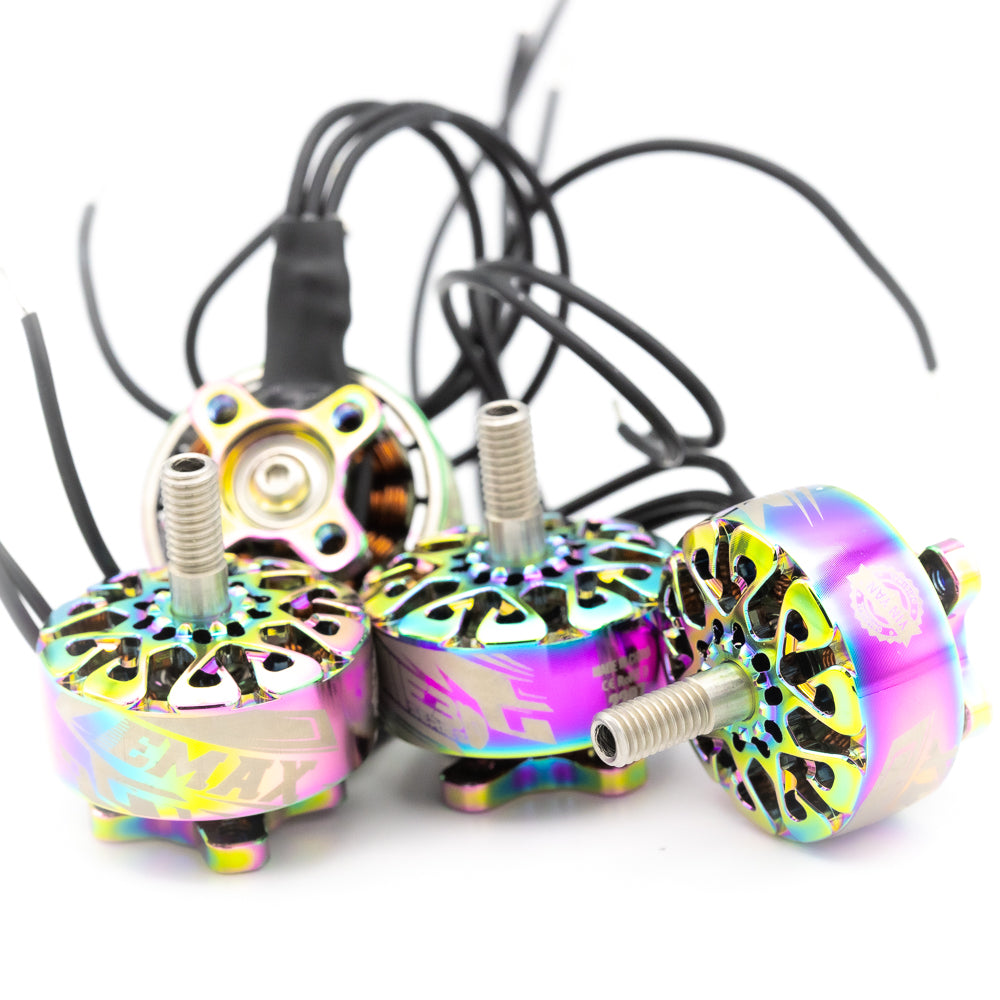

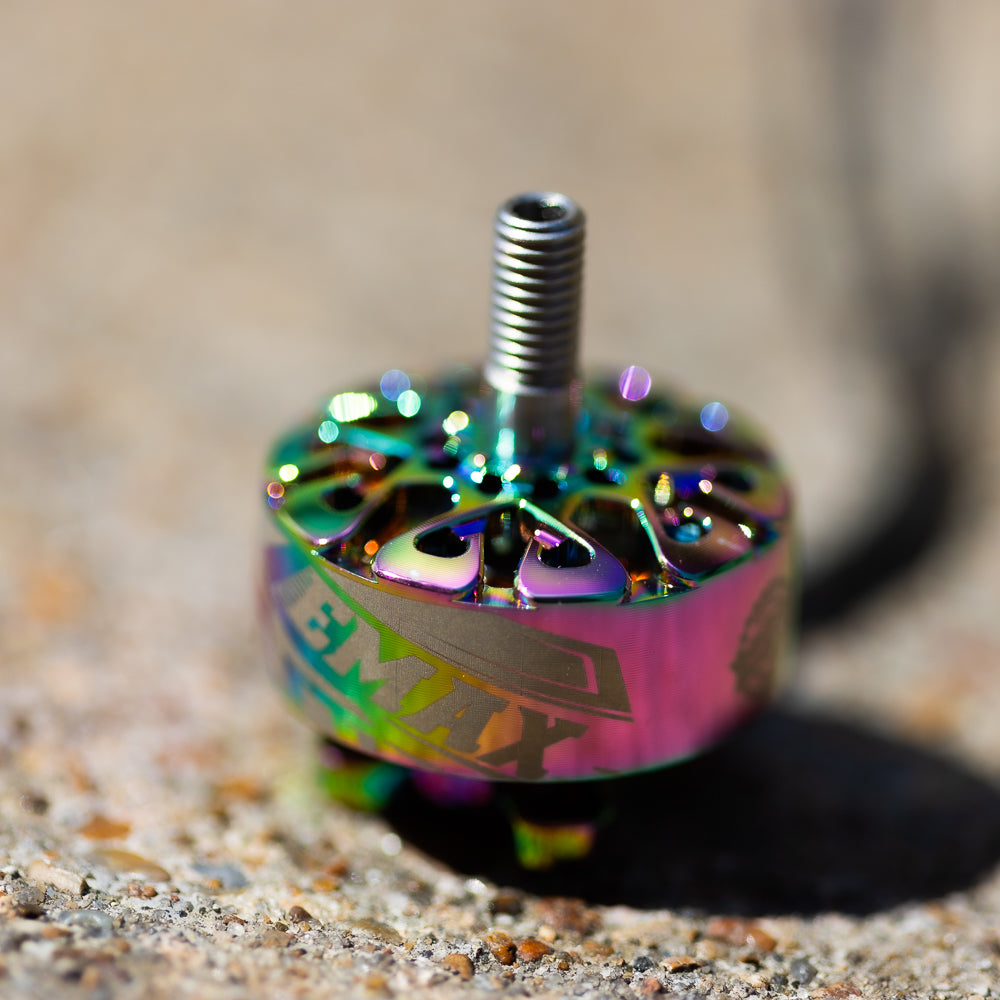

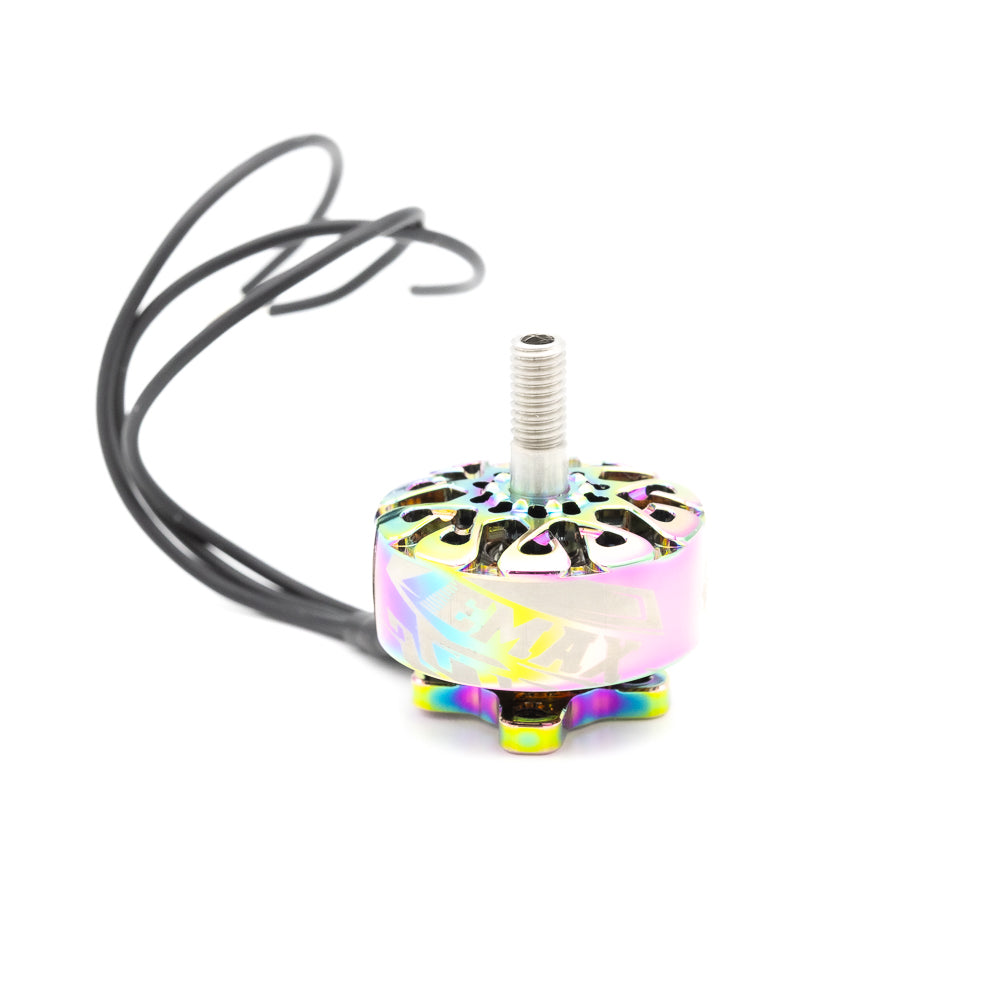

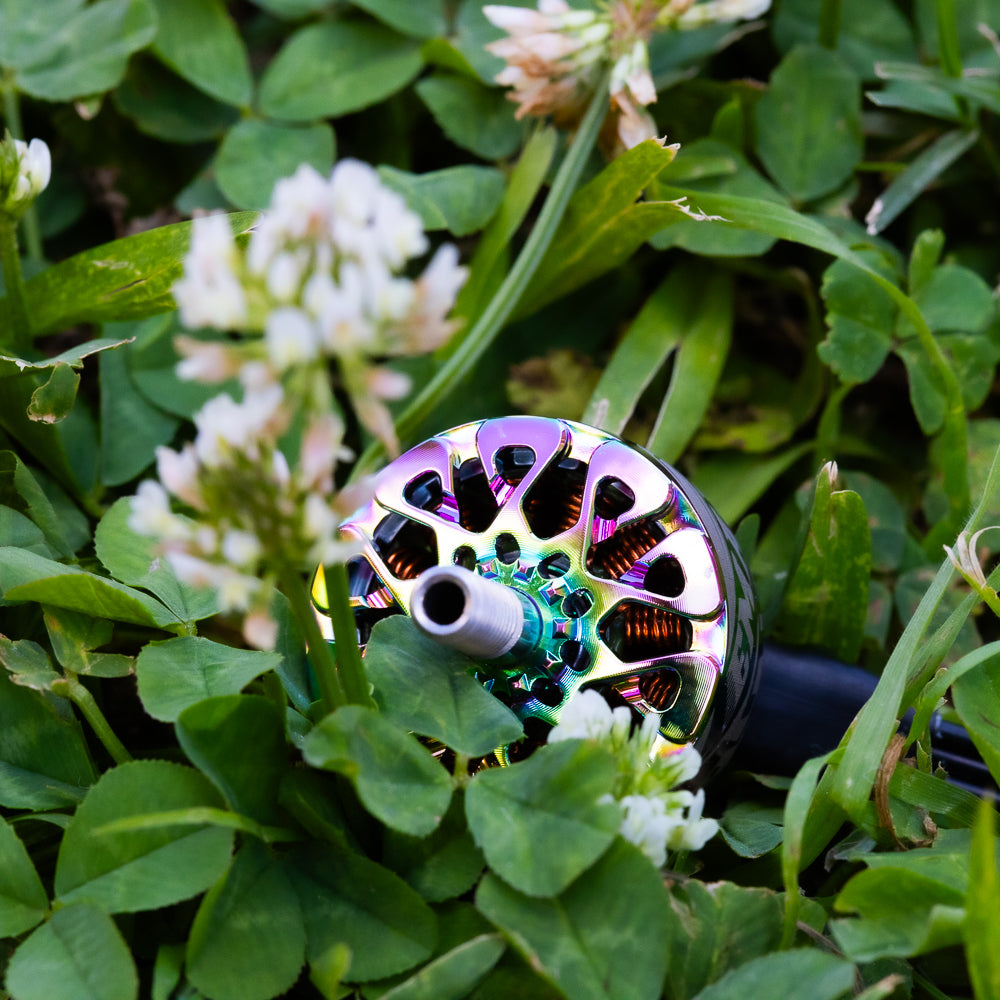

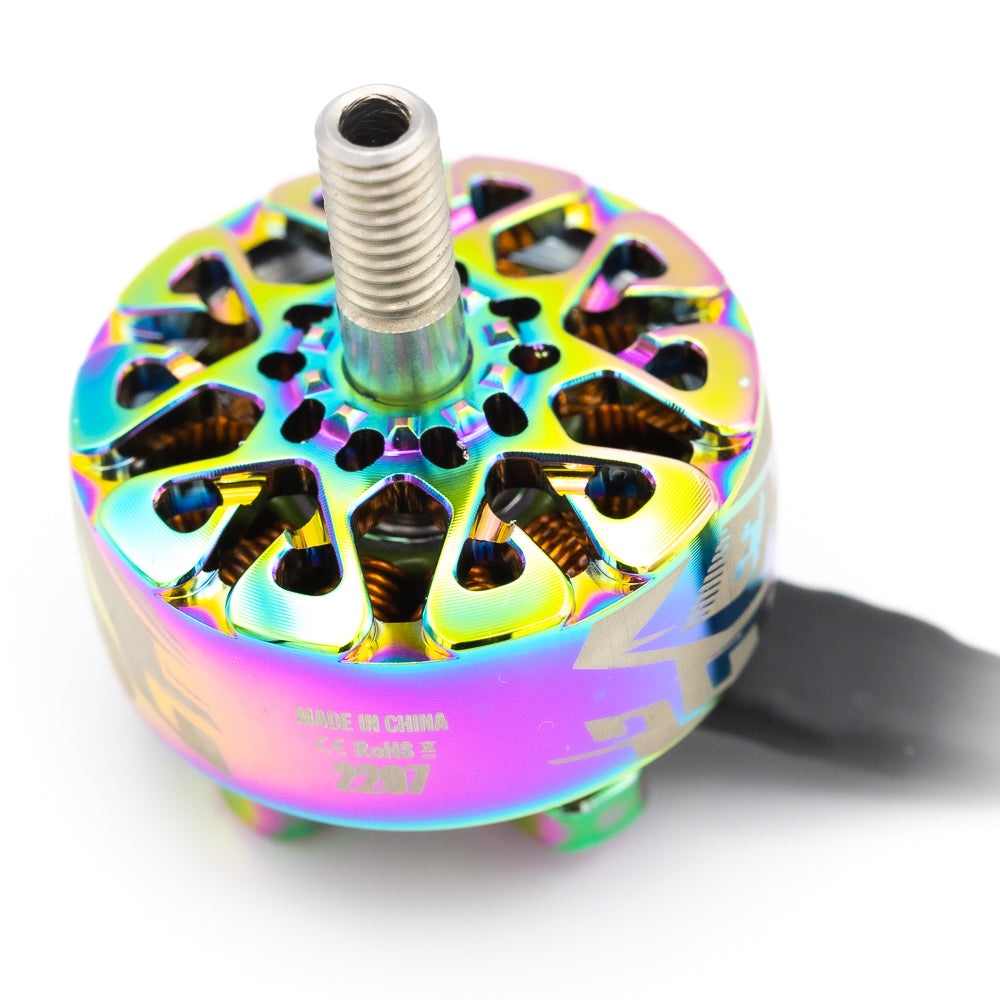

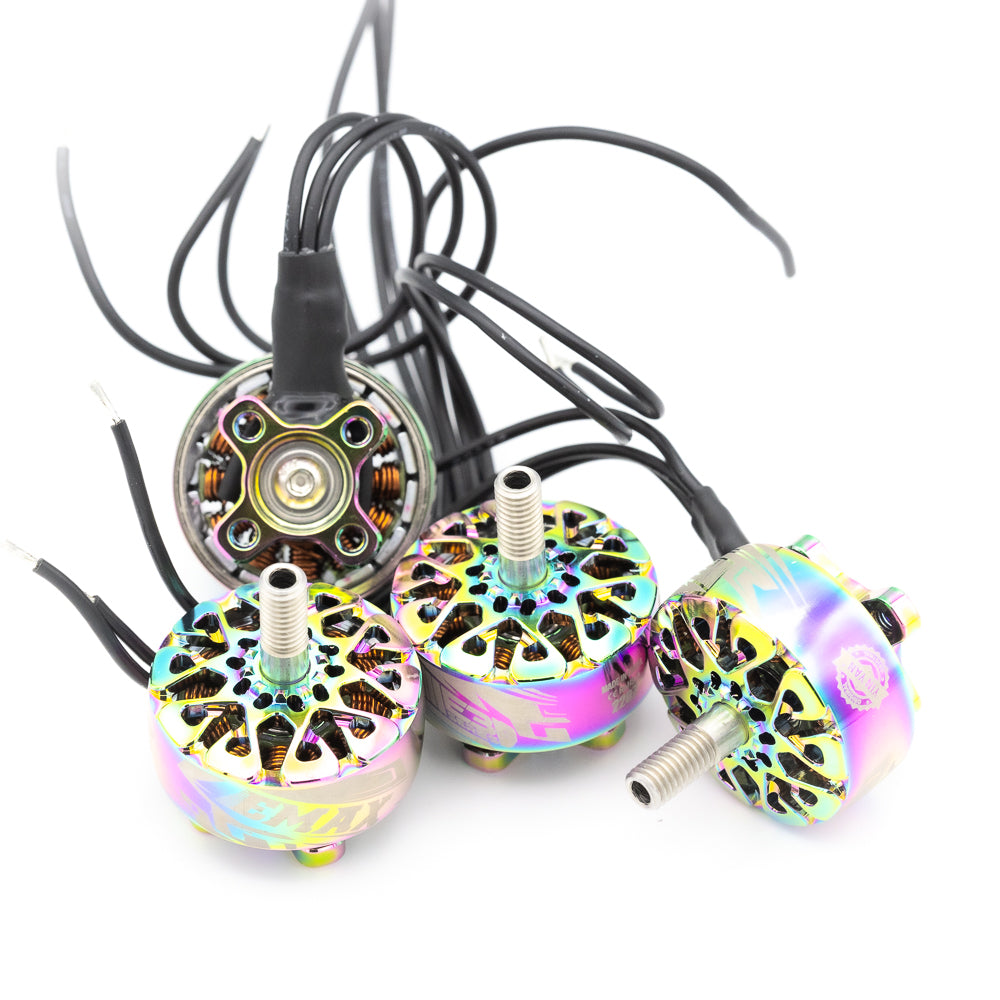

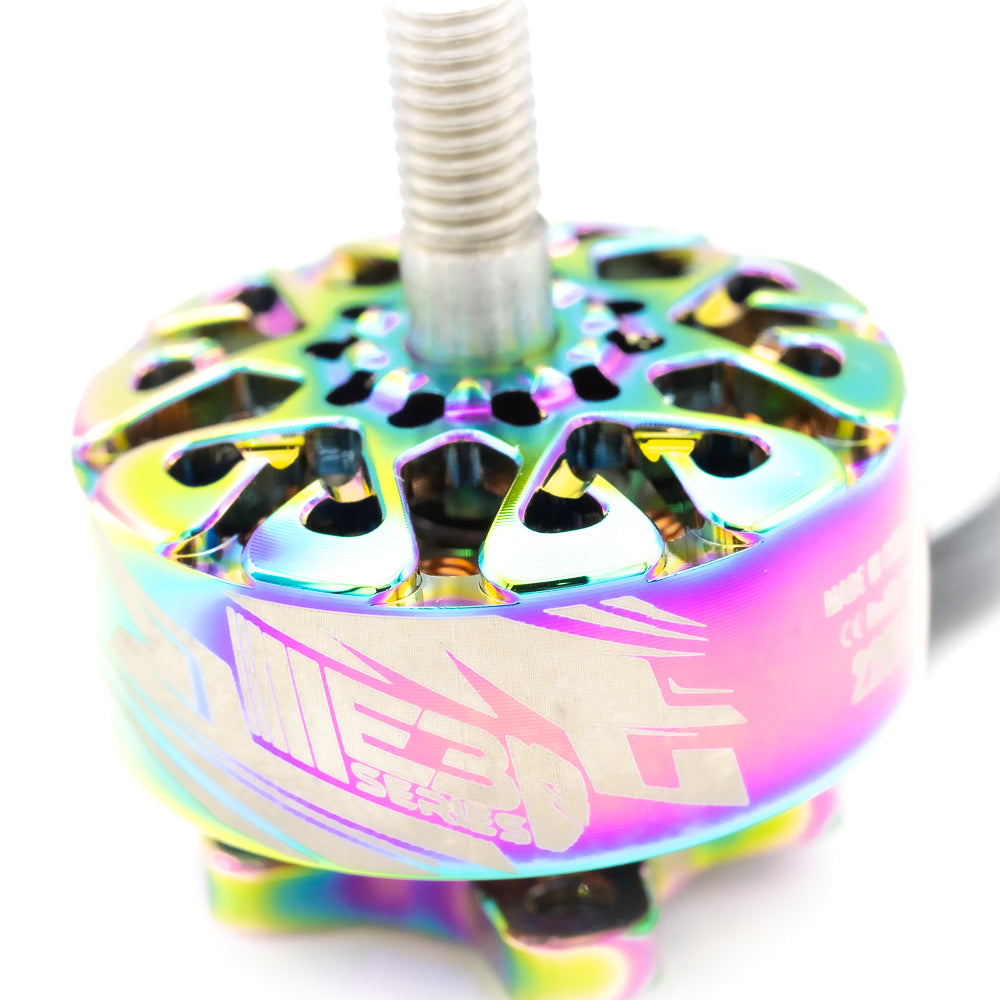

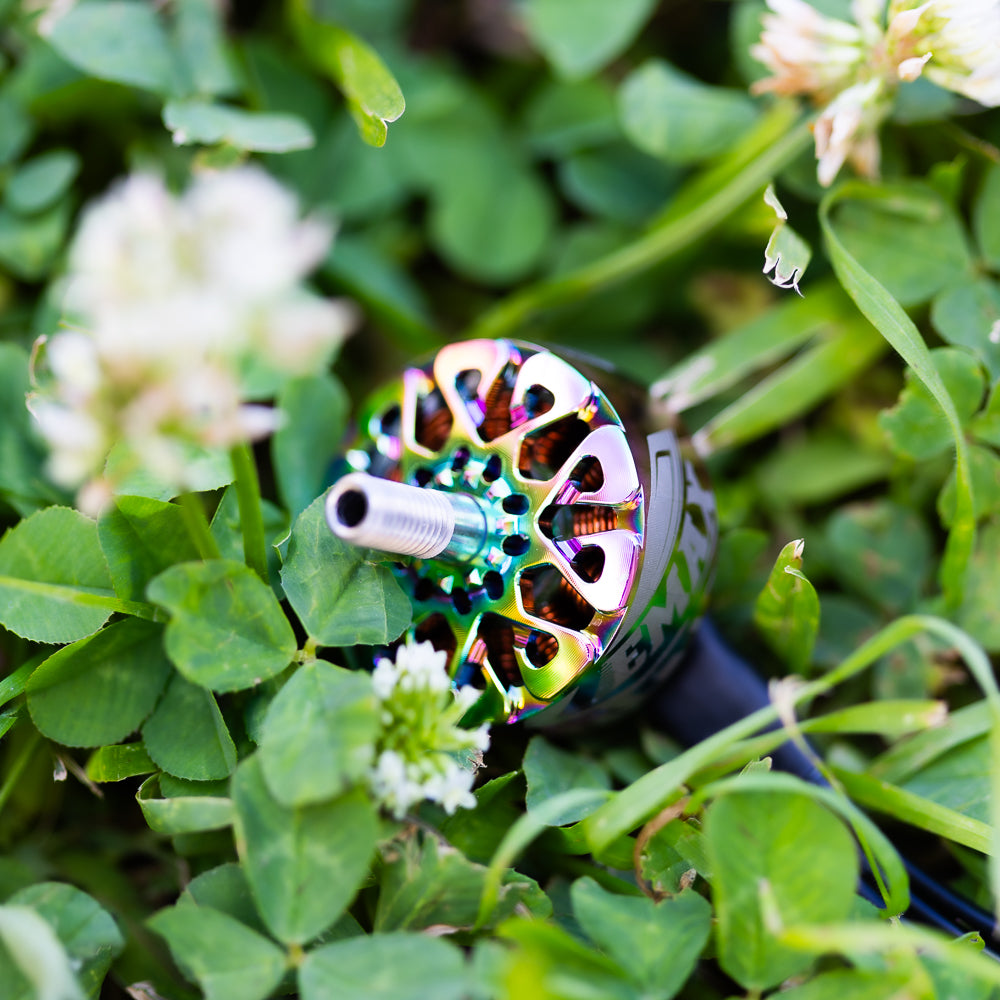

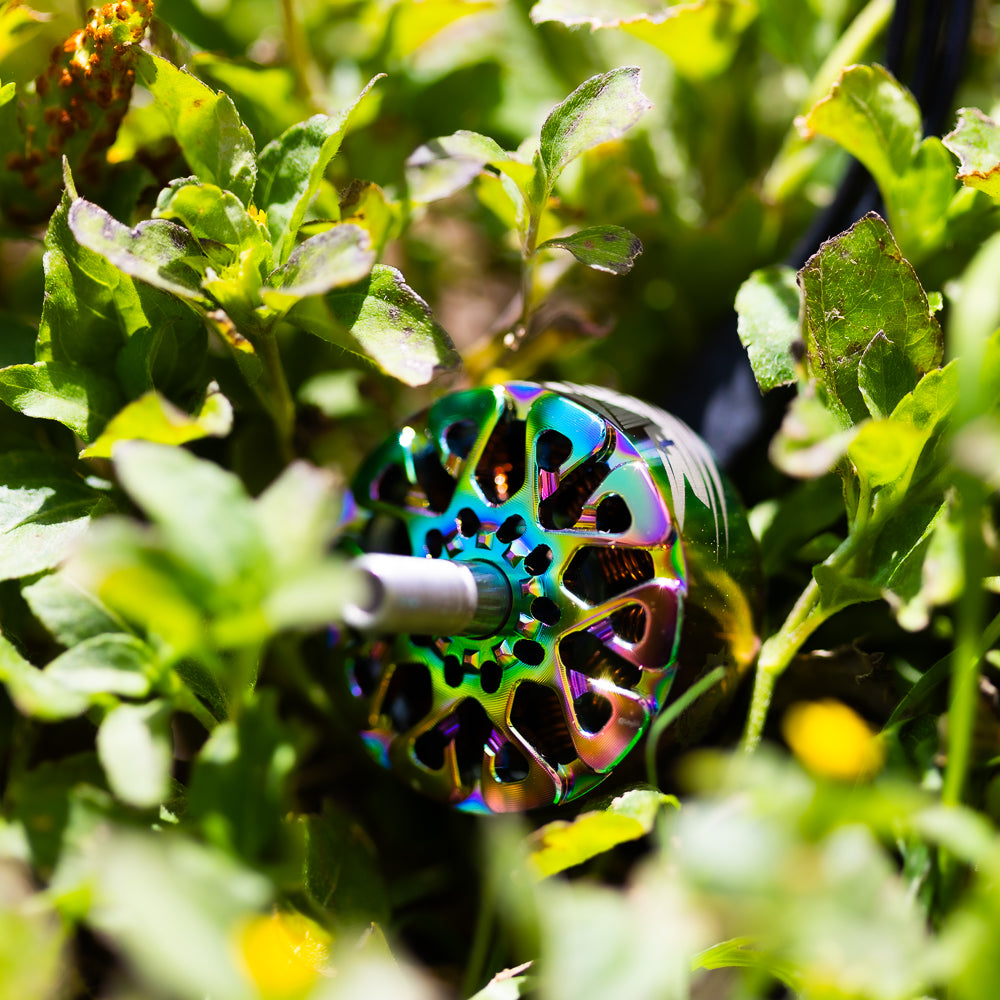

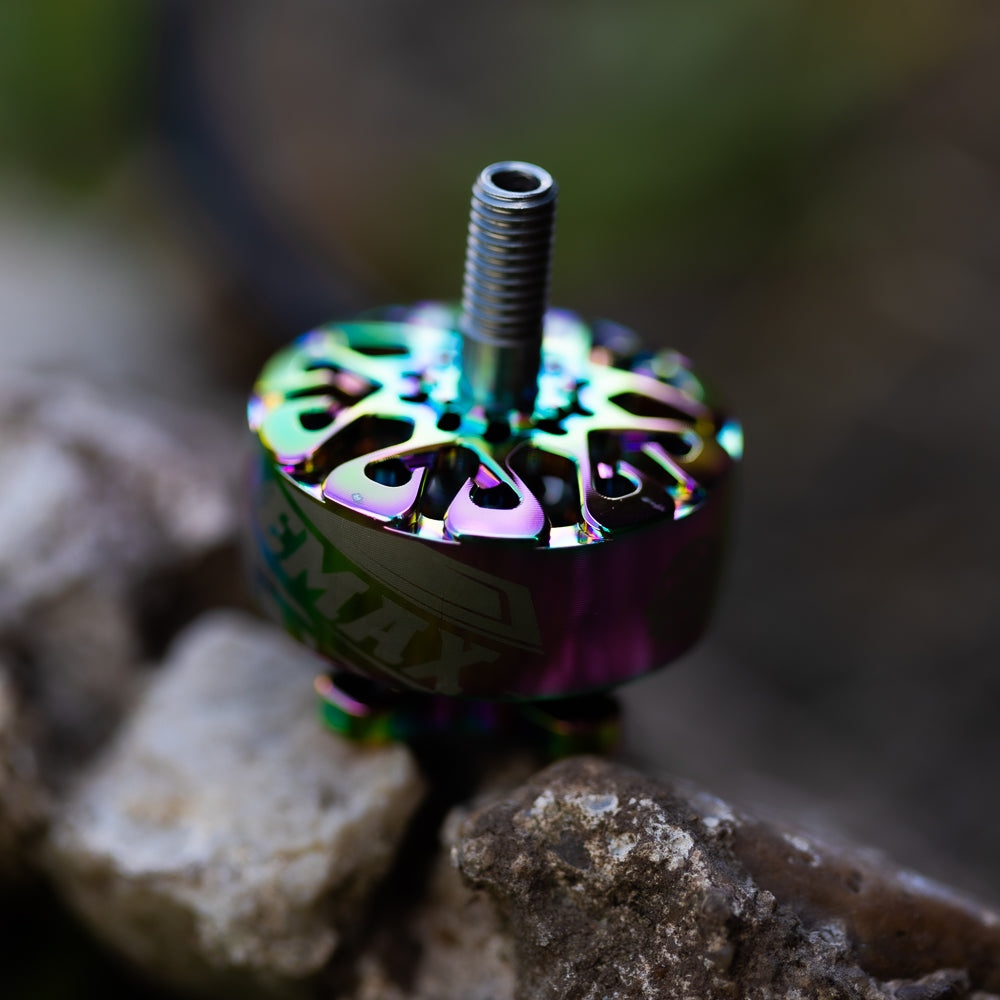

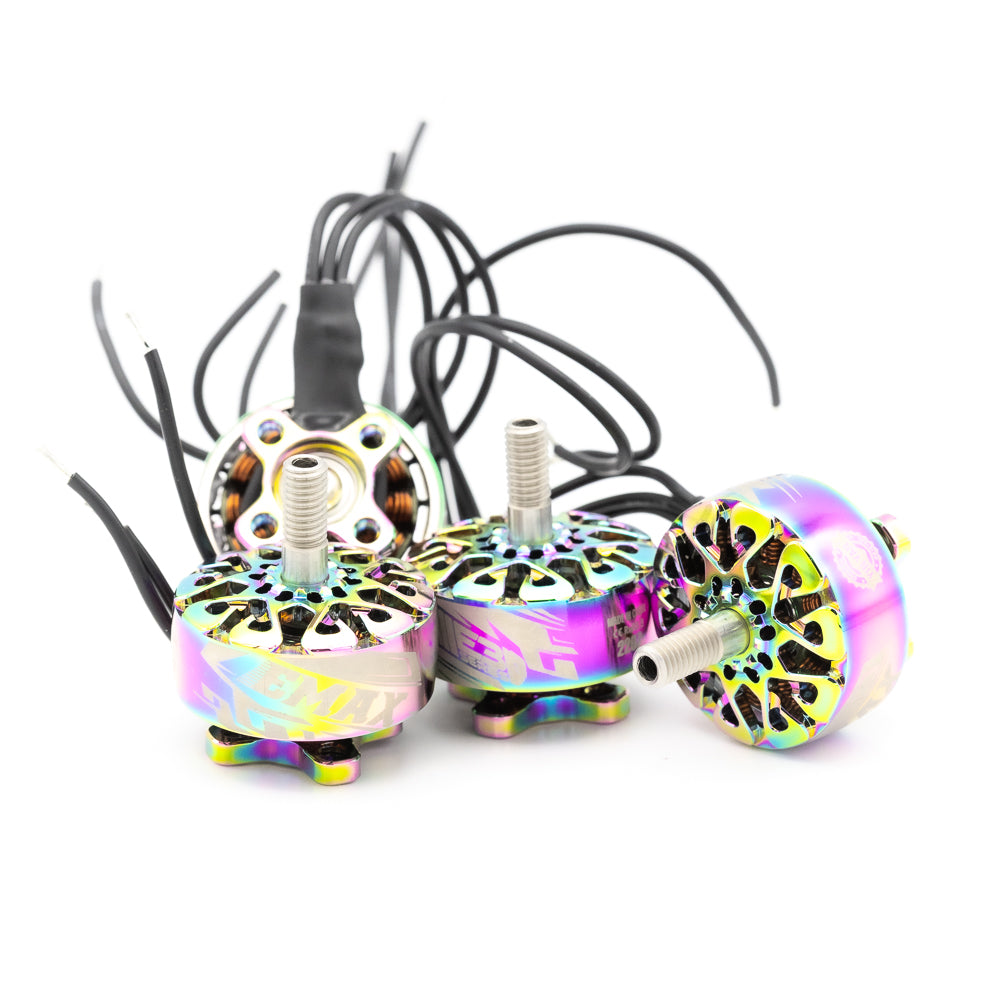

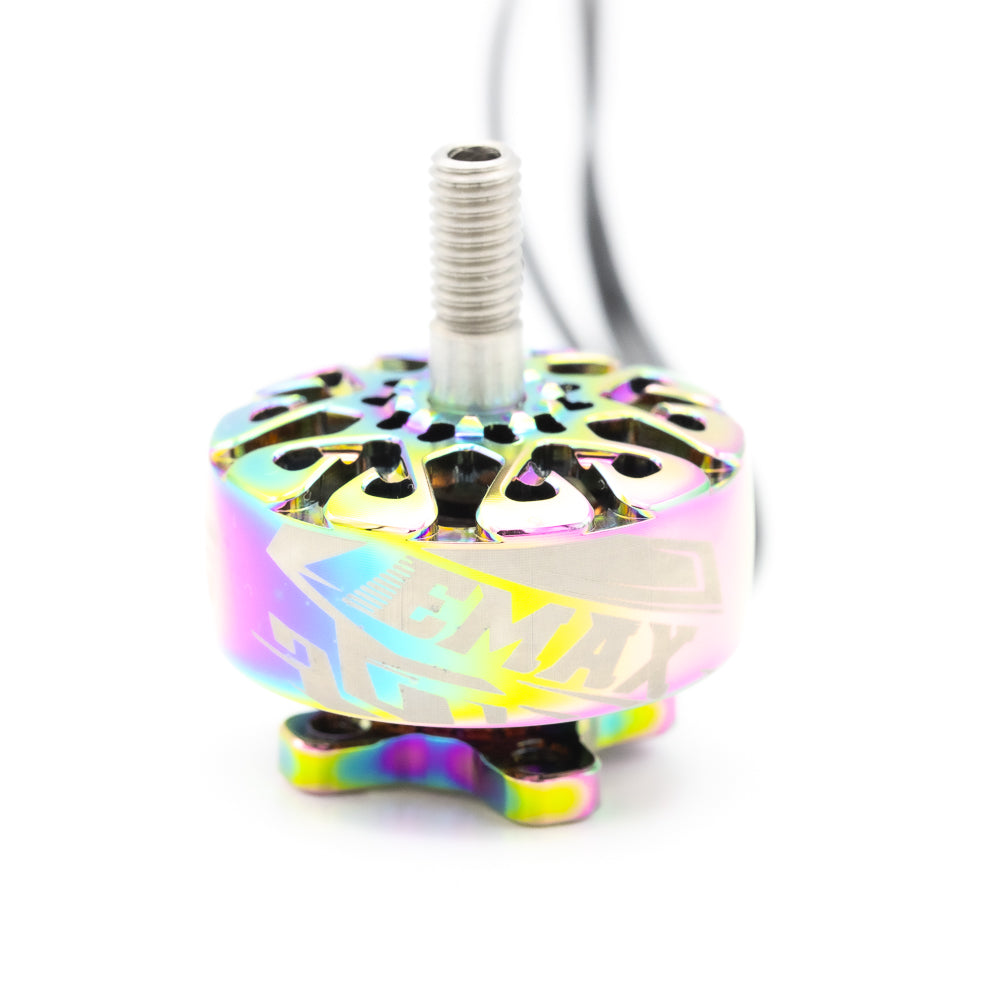

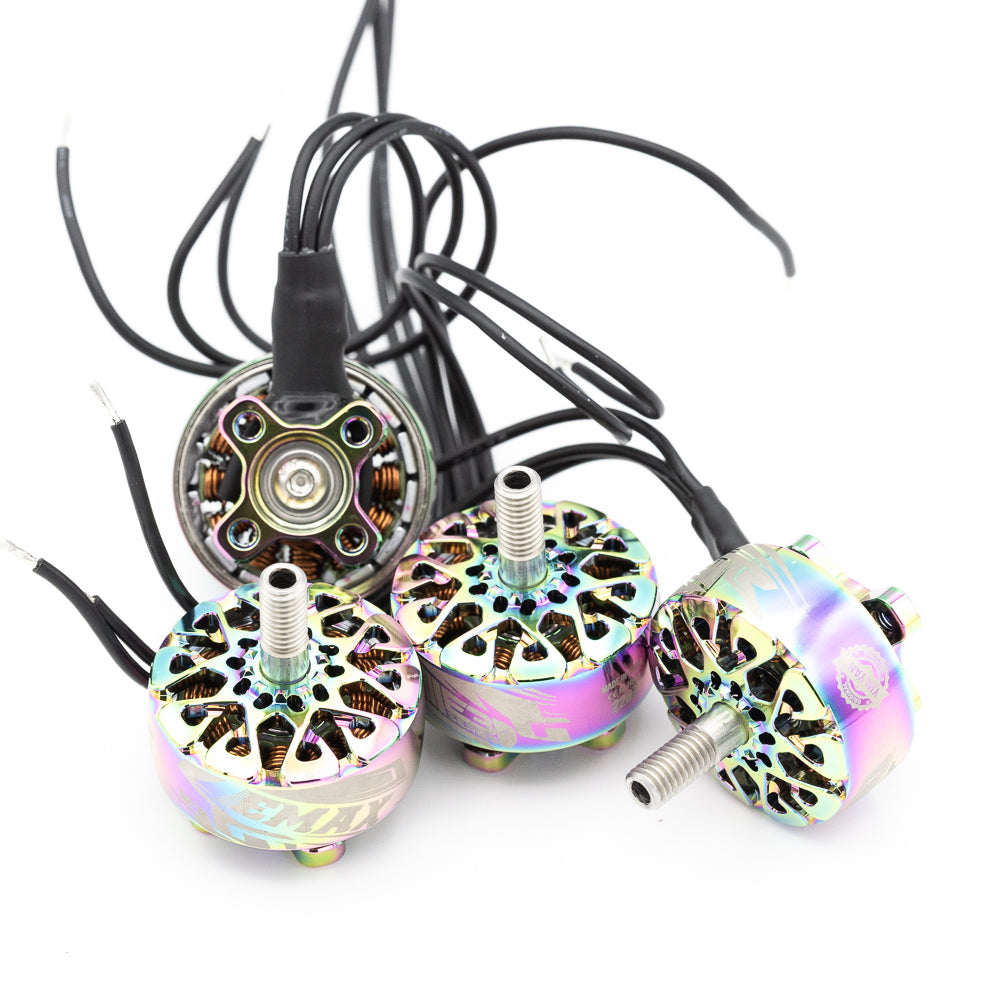

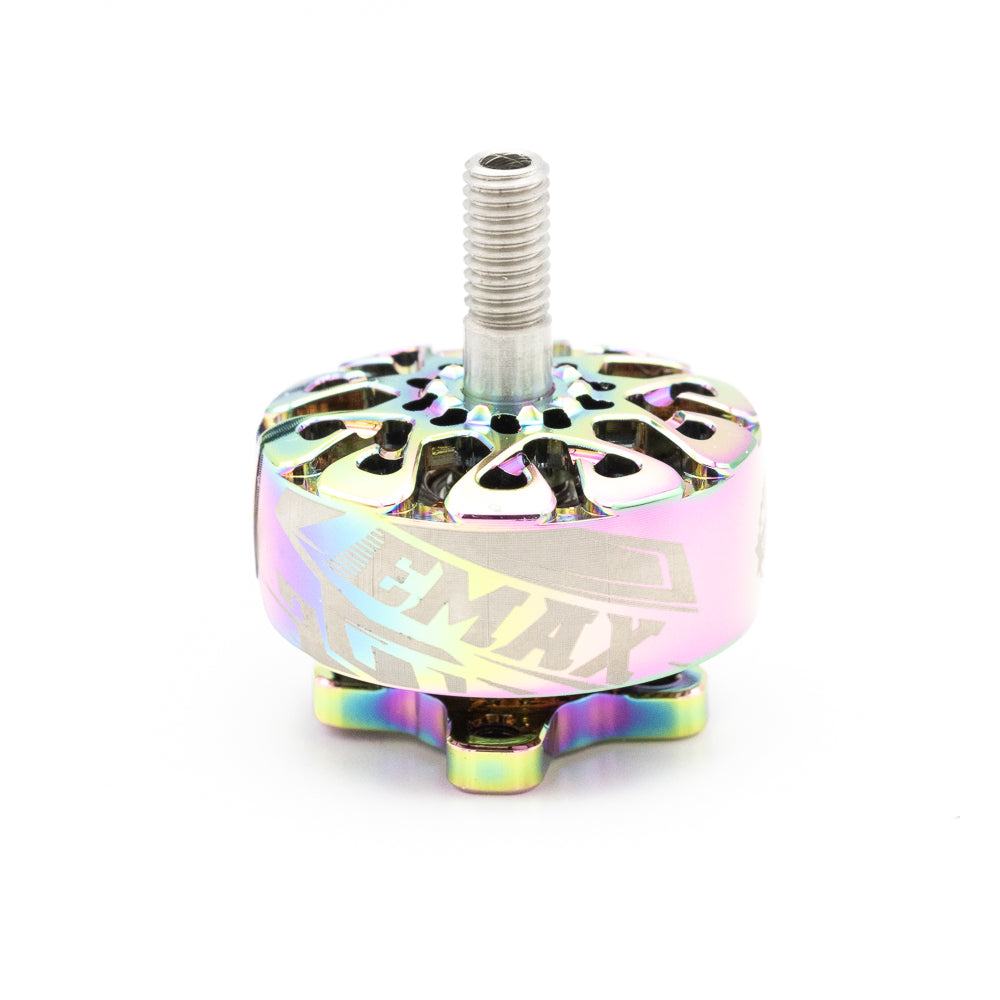

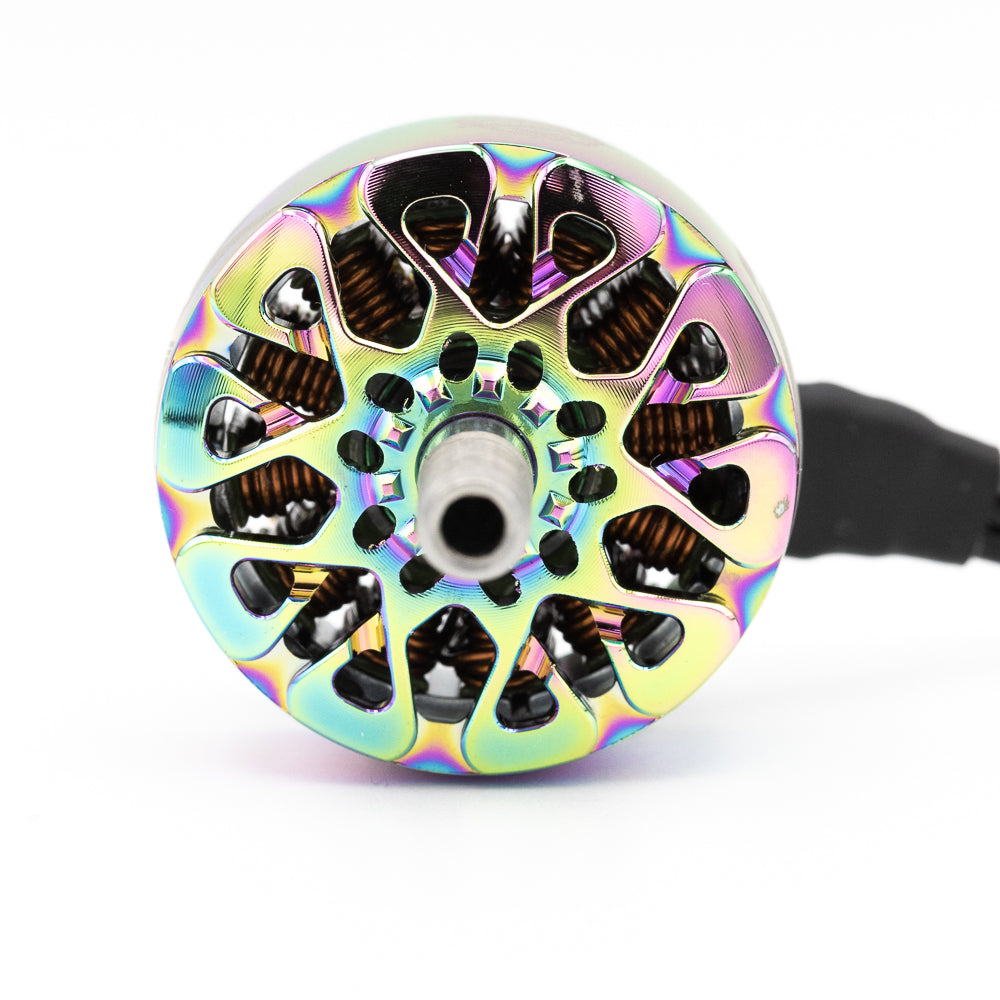

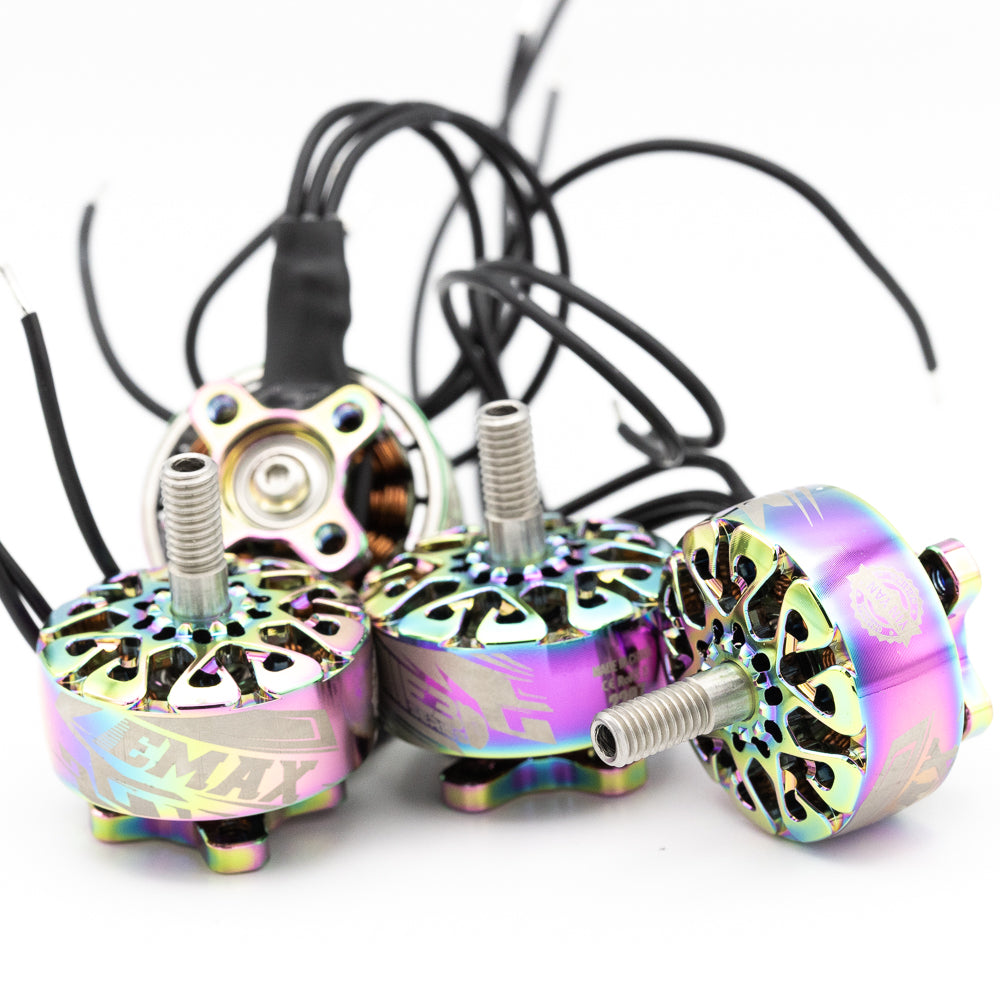

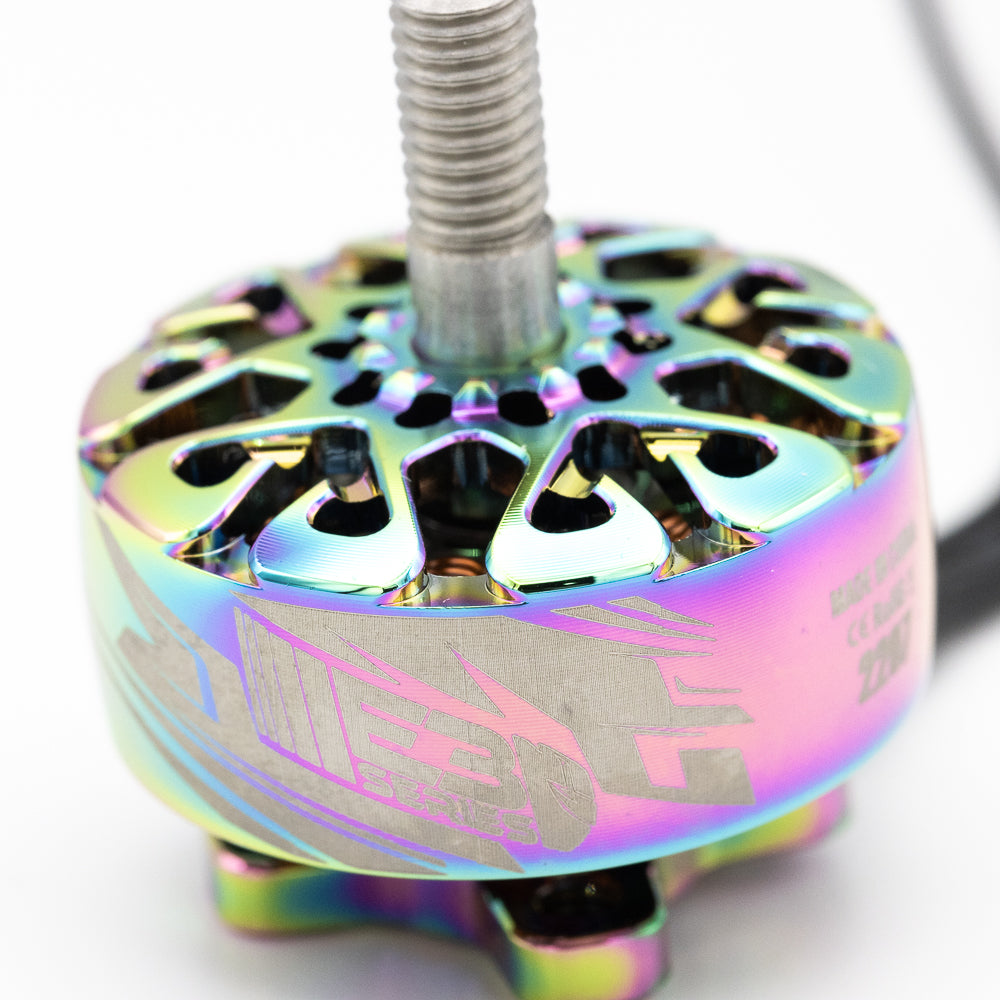

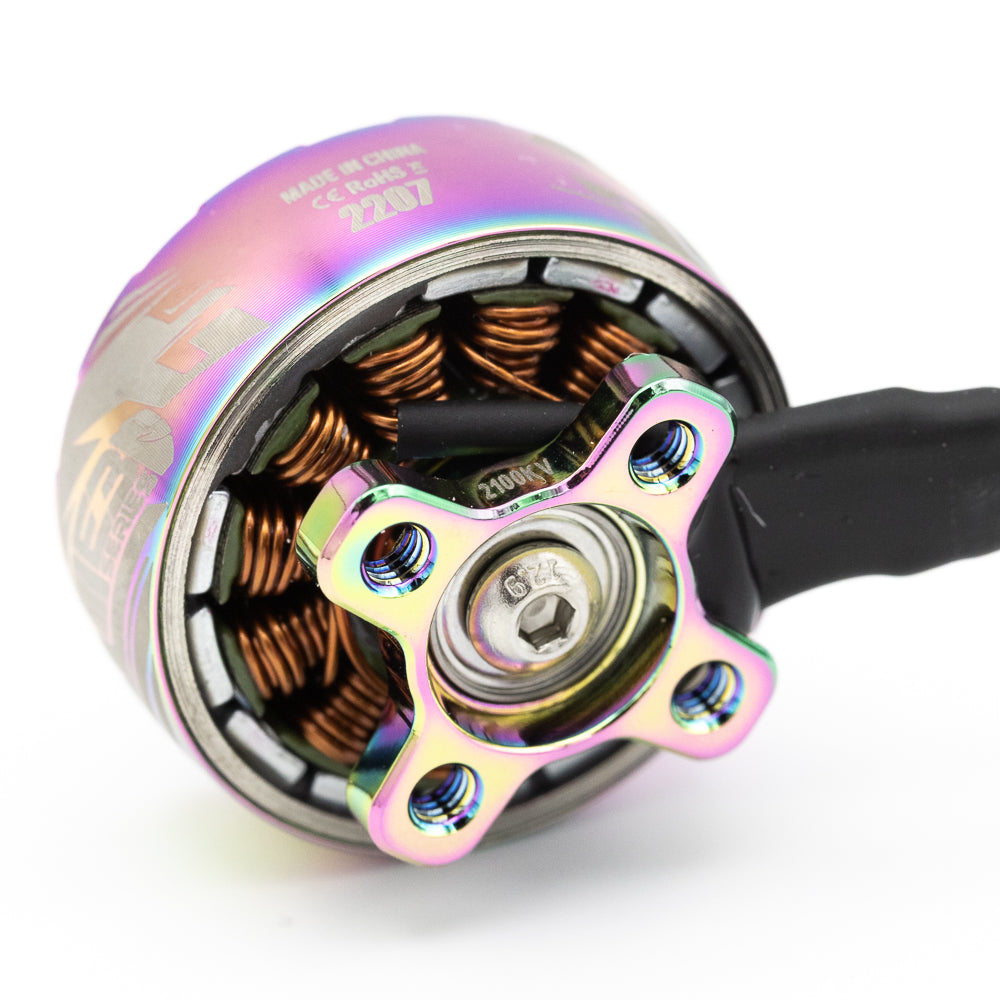

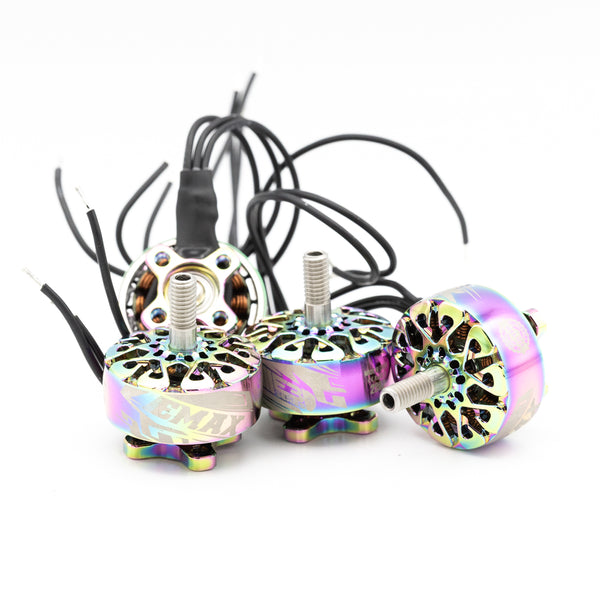

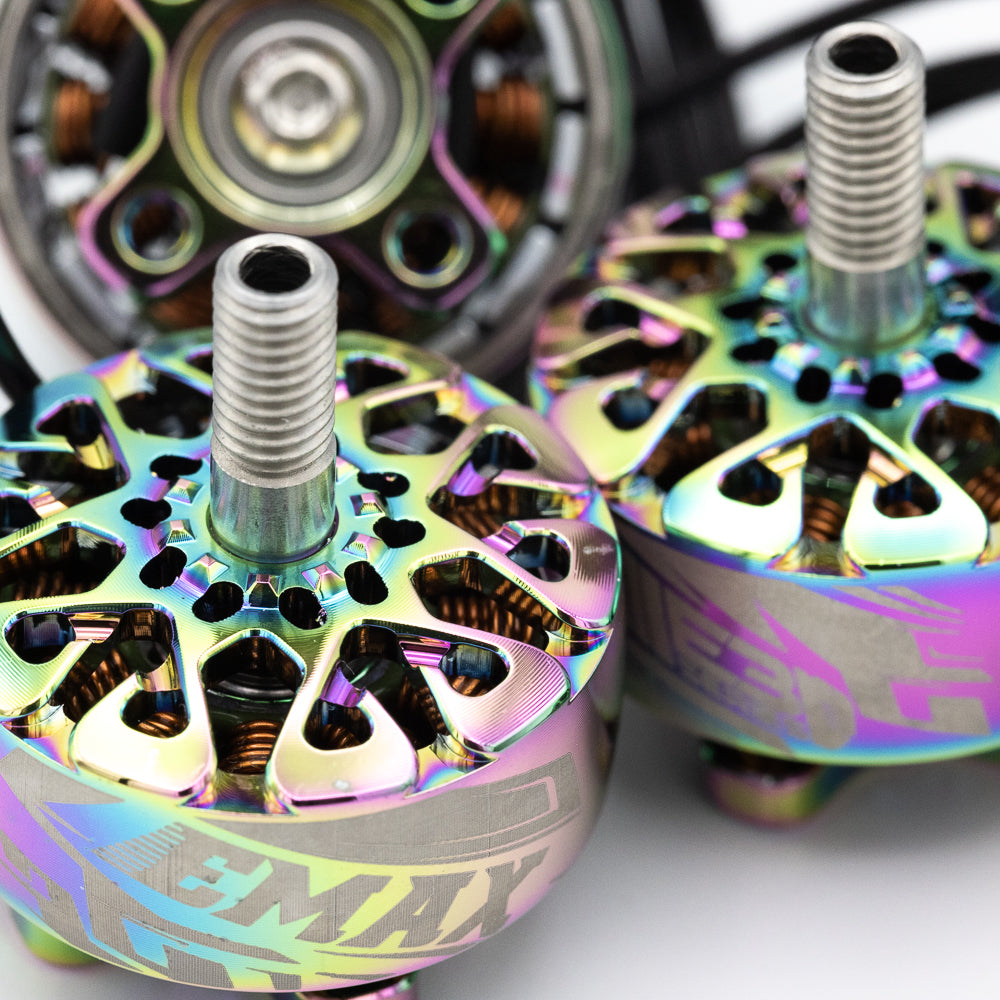

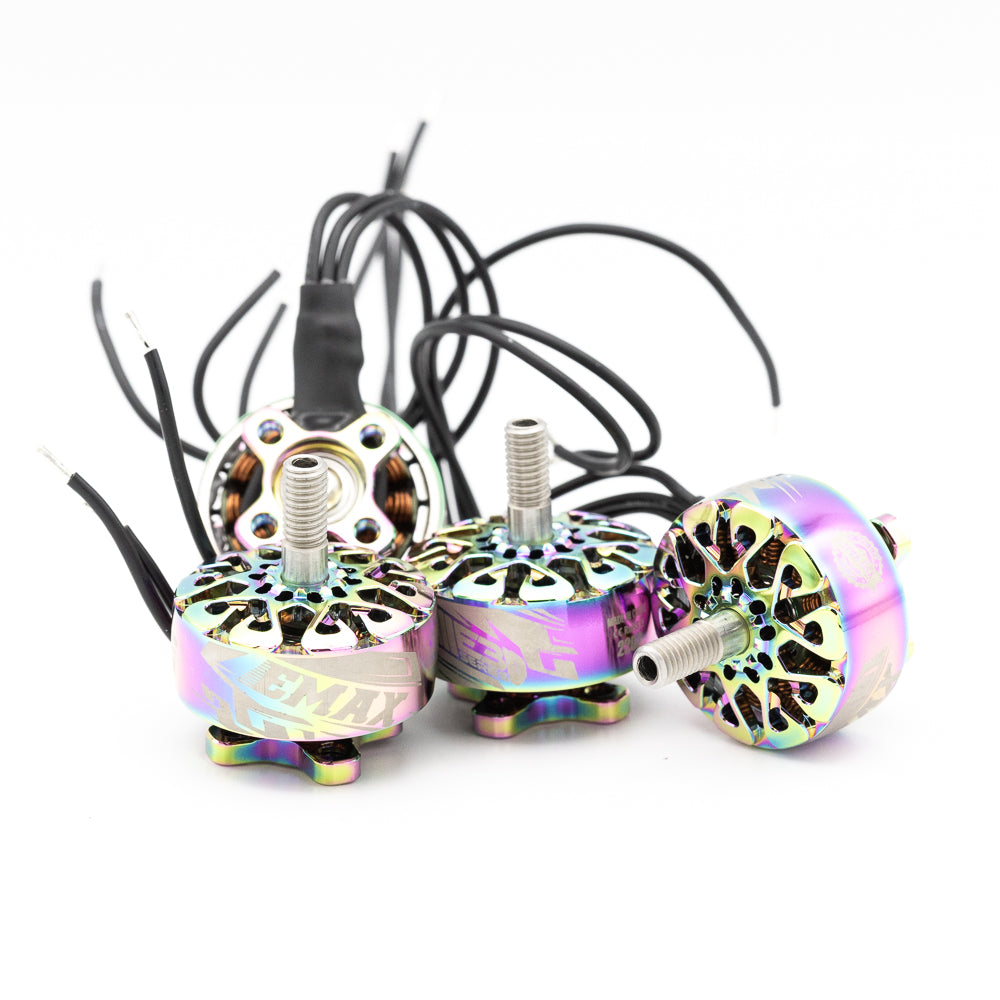

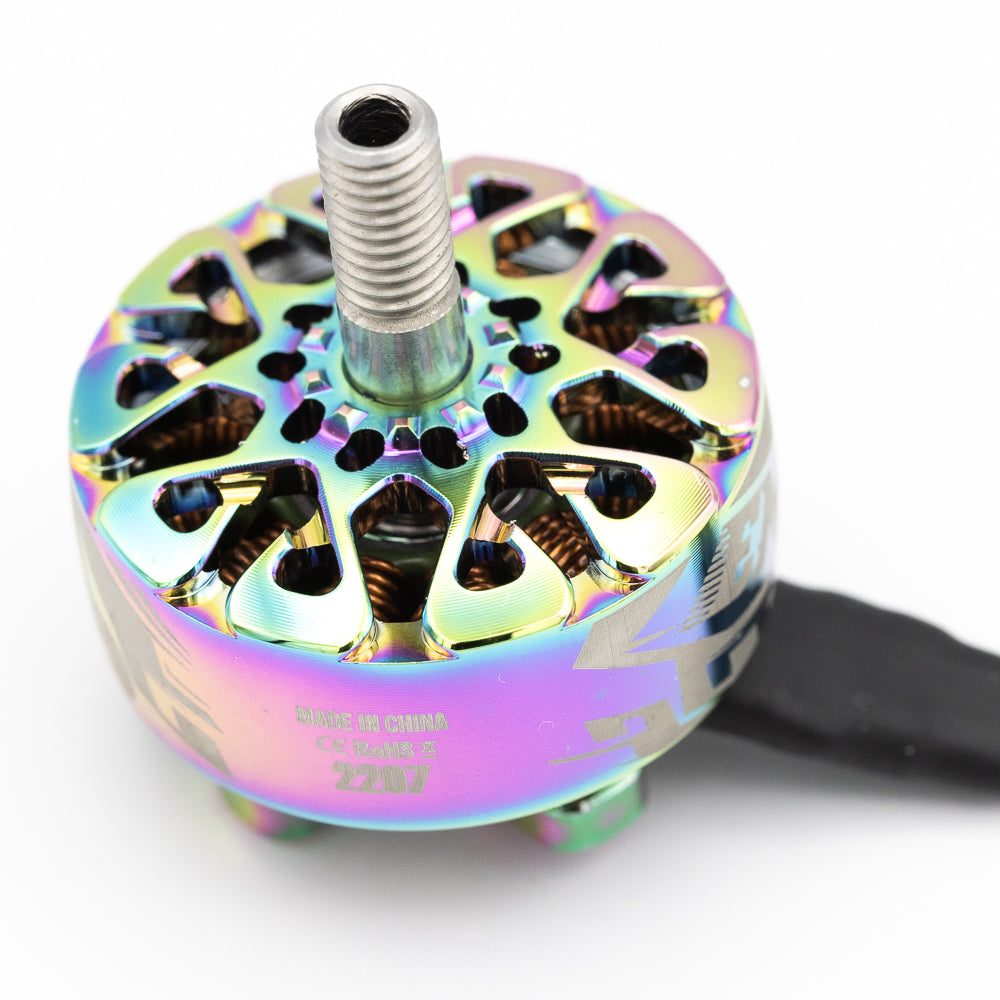

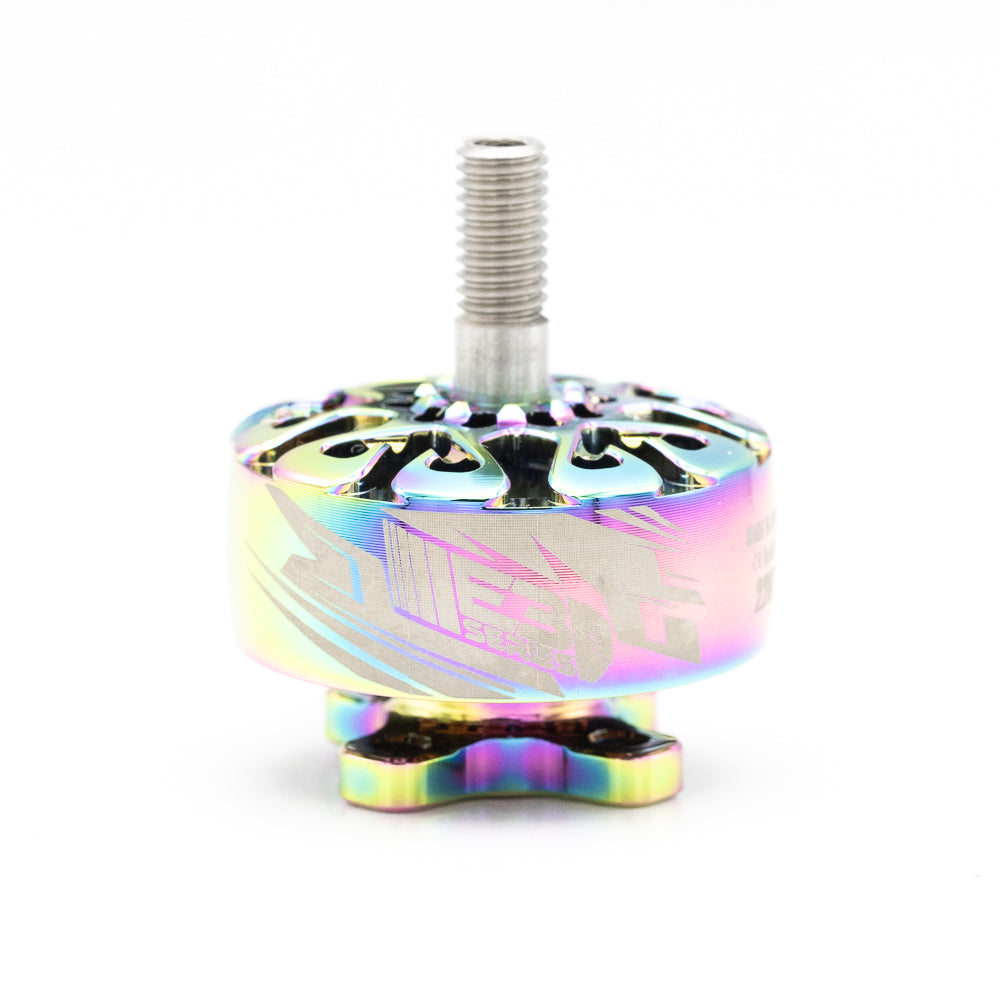

E3 Series 2207 2100kv Rainbow Limited Edition Brushless Motor
